4.1 CLAMPS ROTATION
Positioning the correct side to be used is quick and easy. With the clamp jaws slightly open, turn the clamp by
hand to position it as required, facilitated by a new special alignment system (Fig. 20).
NOTE: carry out the operation for both clamps.

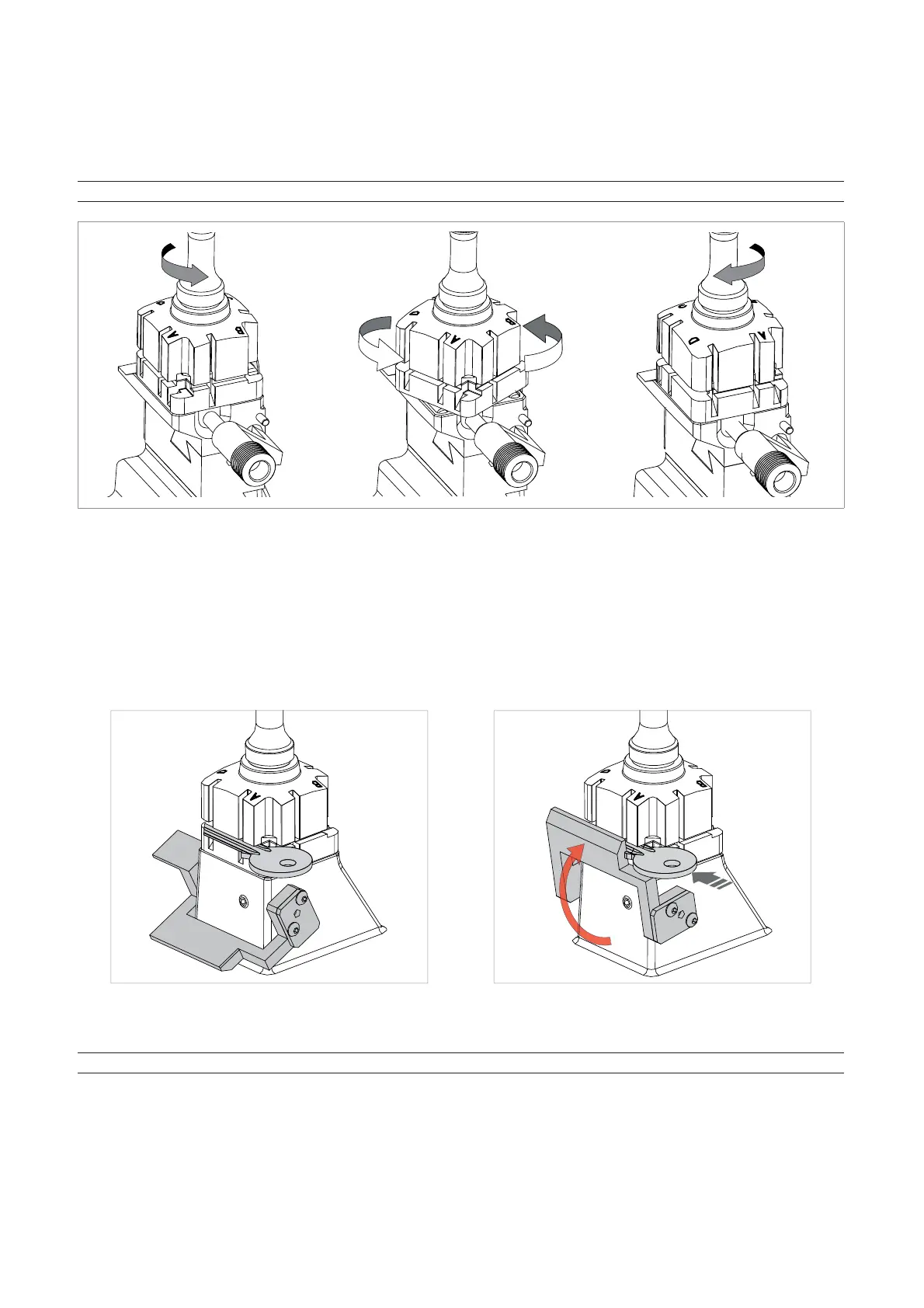

Fig. 20 - CLAMPS ROTATION
4.2 USE OF THE GAUGES
The gauge is used to position fl at cylinder or vehicle keys that call for Stop 0 (Fig. 29).
• CUTTER SIDE gauge
Fig. 21 Fig. 22
Secure the key blank into the clamp, with the stop up against the gauge.
NOTE: there is no need to lower the gauge manually before the cutting operation.
Operating manual POKER PRO
Copyright Silca 2019
14
