Silca POKER PRO - Electrical Diagrams

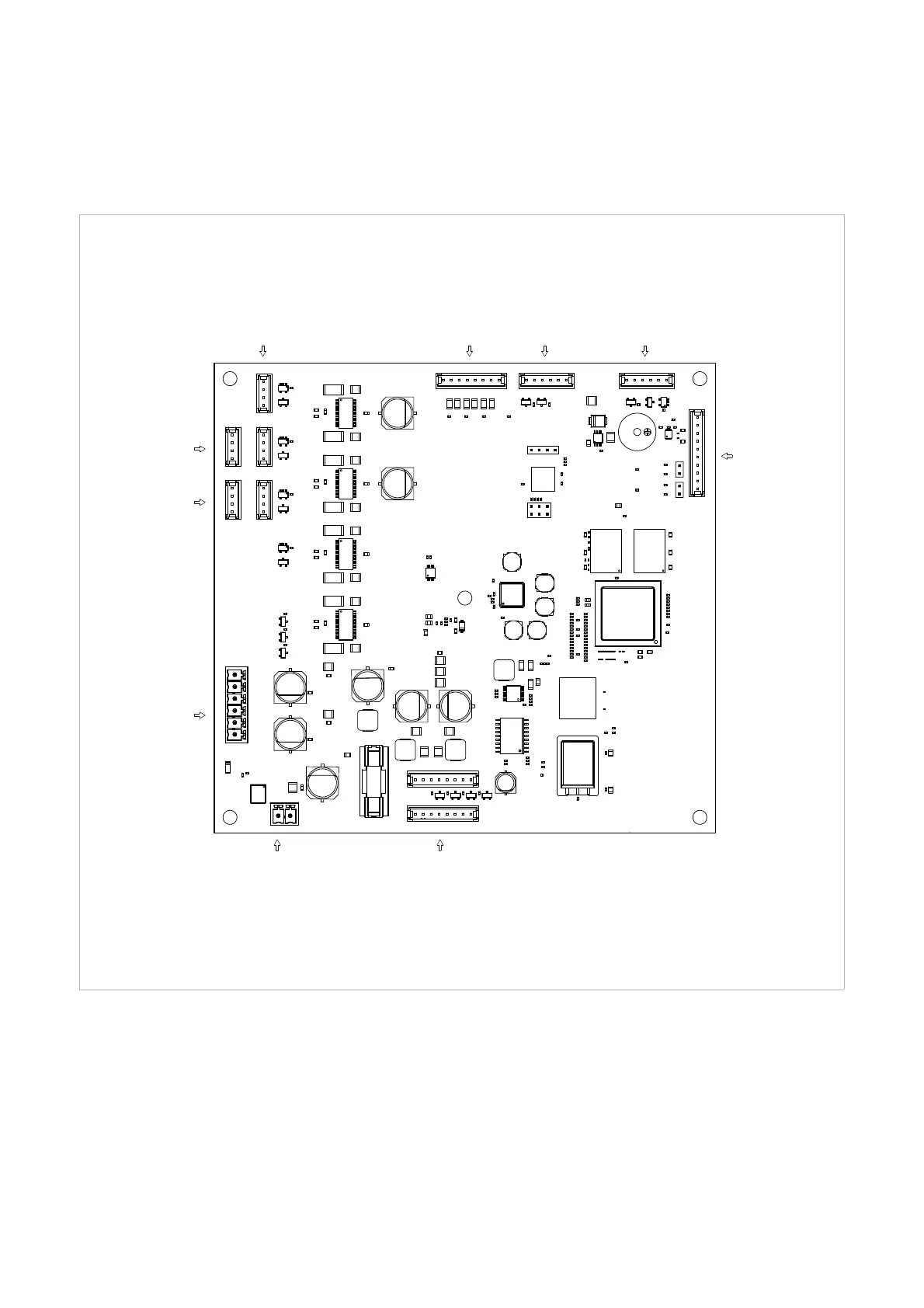

11 ELECTRICAL DIAGRAMS
J8 led lamp
J21 keyboard
J10 gauge sensor
J13 X axis motor
J12 X axis sensor
J15 Y axis sensor
J14 Y axis motor
+ micro carter
J7 cutter motor
J4 power supply +24V
J20 not used
J23 white led
J9 optic reader
J22 micro carter
Operating manual POKER PRO
Copyright Silca 2019
29
