About Silhouette CAMEO
5
/CAMEO
5
PLUS
13
1
-
3

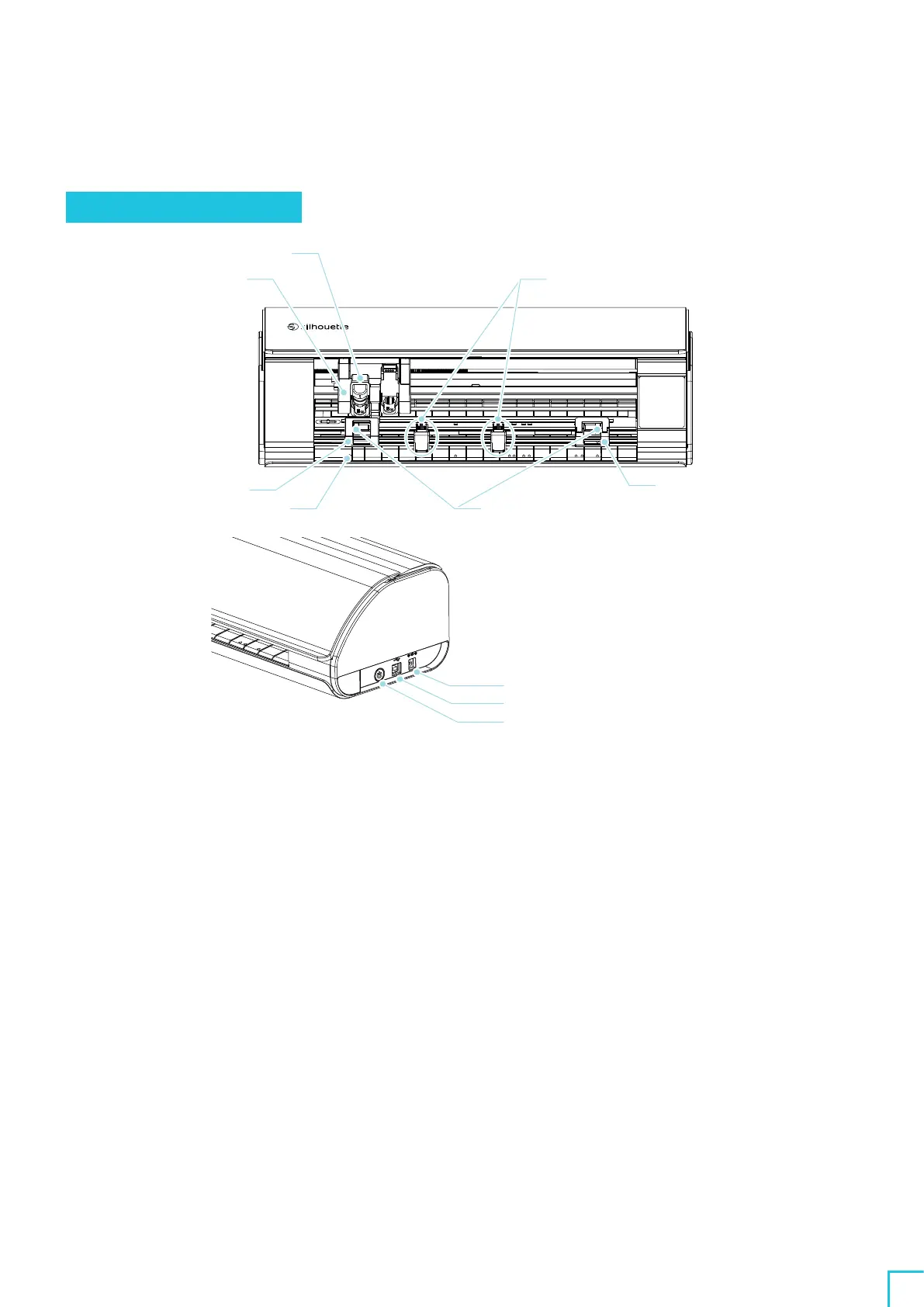

Name and functions of each component
Silhouette CAMEO
5
(
5
) Tool Holder
(
4
) Tool Carriage
(
9
) Guiding Line
(
7
) Pinch Roller Unit
(
6
) Pinch Roller:
(
7
) Pinch Roller Unit
(
8
) Auxiliary Roller
(
3
) Power Connector
(
2
) USB Interface
(
1
) Power Button
(
1
) Power Button : Switches the power on or off.
Emergency Stop Button : When the Power Button is pressed during the cutting operation, the operation
stops immediately.
(
2
) USB Interface : Used to connect the machine to the computer with a USB Interface cable.
(
3
) Power Connector : Connects the AC adapter.
(
4
) Tool Carriage : Part to drive the tool to the left and right.
(
5
) Tool Holder : A holder to place tools, such as the Auto Blade or specialty tools.
Place the Auto Blade in Tool holder
1
and specialty tools in Tool holder
2
.
(
6
) Pinch Roller : Roller to feed the media.
(
7
) Pinch Roller Unit : Roller unit to feed the media. The pinch roller unit on the right side
determines the position based on the media size, lowers the lever, and
secures it.
(
8
) Auxiliary Roller : Holds the media down to prevent it from warping. The auxiliary roller can be
adjusted freely depending on the media size. We recommend positioning the
auxiliary rollers so that their left-right spacing are almost even taking account
into the width of the loaded media.
