Sim2 D10 - Page 10

D10
10

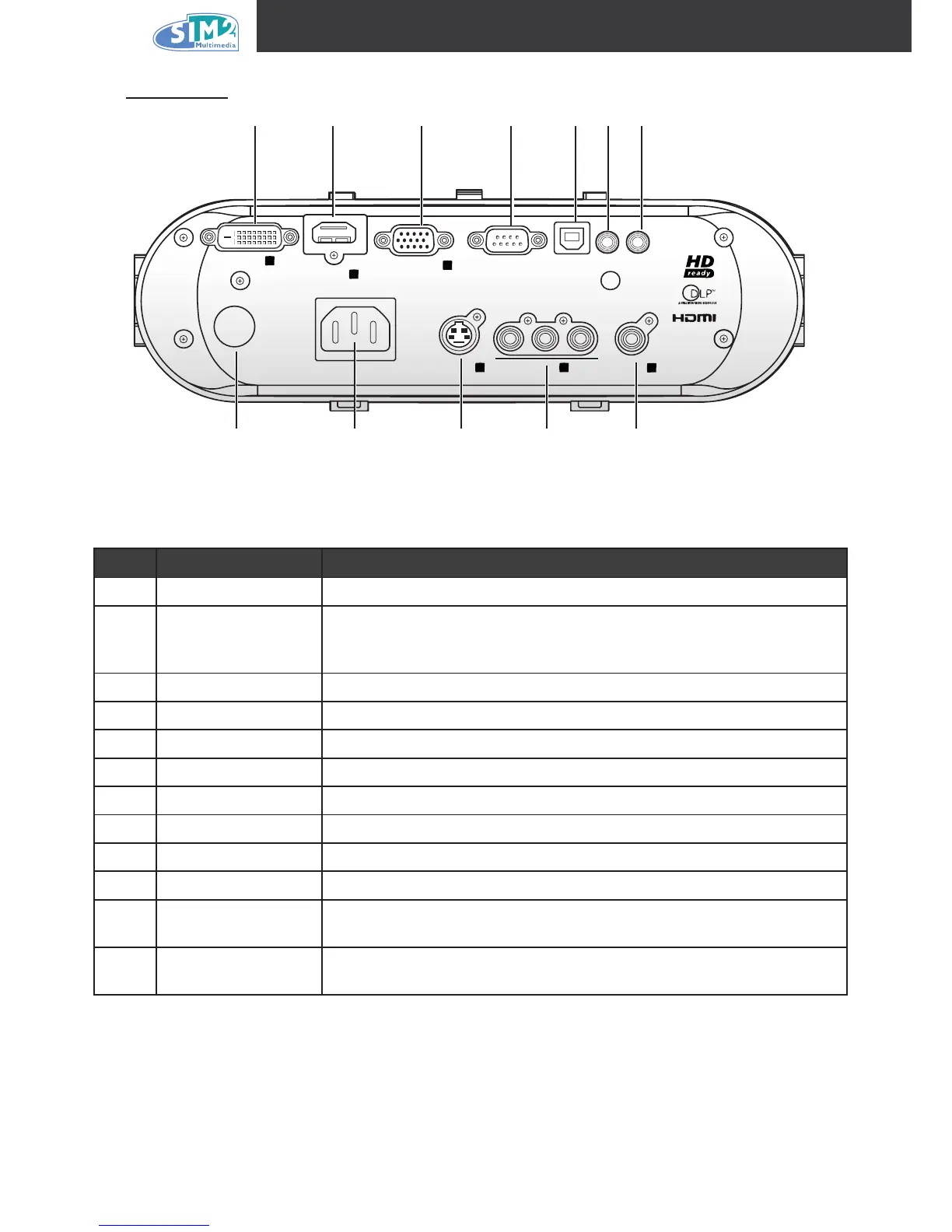

Rear Ports
DVI-D
5
HDMI
6
USB
REMOTE TRIG 1
GRAPHIC RGB RS-232
4
VIDEOYPrPb
3
1
S-VIDEO
POWER 100/240 V
2
iteM label
deScriptiOn
1 DVI-D Connect the computer cable from a computer or video source
2 HDMI
Connect a High-Denition Multimedia Interface cable from home
theater and consumer electronics equipment
3 Graphic RGB Connect a VGA cable from a computer or a video device (YPrPb)
4 RS-232 Installation control
5 USB Connect the USB cable from a computer
6 Remote Connect a wired remote control device
7 Trig 1 3.5mm mini-jack trigger provides a 12 volt, 0.25 amp DC output
8 Rear IR receiver Receiver for IR signal from remote control
9 Power Connect the supplied power cord
10 S-Video Connect S-Video cable from a video device to the S-Video jack
11 YPrPb (component)
Connect component video cables (supplied) from a video device to the
Y, Pb/Cb, and Pr/Cr RCA jacks
12 Video
Connect a composite video cable from a video device to the yellow
RCA jack
1 2 3 4 5 6 7
8
9
10 11 12
