5 DESCRIPTION OF THE APPLIANCE
5.1 Characteristics
GIULIA SYSTEM
are condensing wall mounted boilers which
Sime
has produced for installation into domestic properties
for system heating. The main design choices made by
Sime
for
the
GIULIA SYSTEM
boilers are:
the total pre-mix microflame burner combined with a steel
heat exchanger
room sealed, Type C appliance. Suitable for use on sealed
heating systems
the microprocessor electronic control board, which makes
the heating production system easier to manage offers the
option to be connected to room thermostats and also to an
external sensor. Where connected to an external sensor, the
boiler temperature varies on the basis of the external tem-
perature, according to the selected optimal climatic curve.
This provides significant energy and cost savings.
Other special features of the
GIULIA SYSTEM
boilers are:
the anti-freeze function which activates automatically if the
temperature of the water inside the boiler falls below the
threshold of the value set at parameter "tS 1.0" and , if there
is an external sensor, if the external temperature falls be-
low the threshold of the value set at parameter "tS 1.1".
anti jamming function of the pump. This activates automat-
ically every 24 hours if no request for heat has been made
the chimney sweep function lasts 15 minutes and makes
the job of the qualified technician easier when measuring
the parameters and combustion efficiency
screen display of the operating and self-diagnostic param-
eters with error code display when the fault occurs. This
makes repair interventions easier and allows appliance op-
eration to be restored correctly.
5.2 Check and safety devices
The
GIULIA SYSTEM
boilers are equipped with the following
check and safety devices:
thermal safety thermostat 100°C
3 bar relief valve
heating water pressure switch
delivery sensor
exhaust sensor.
d
DO NOT
Do not commission or operate the appliance with
safety devices which do not work or which have been
tampered with.
a
WARNING
Safety device may only be replaced by professional
qualified personnel using
Sime
original spare parts.
5.3 Identification
The
GIULIA SYSTEM
boilers can be identified by means of:
1 Packaging label:
this is located on the outside of the pack-
aging and provides a code, the serial number of the boiler
and the bar code
2 Energy Efficiency Label:
this is positioned on the outside of
the packaging to notify the User of the level of energy sav-
ings and reduced environmental pollution produced by the
appliance
3 Technical Data Plate:
this is located on the side of the ap-
pliance and provides the technical data, appliance perfor-
mance and any other information required by law.
4 Sticker of product identification
.
3
I II
A
B
C
D
E
F
G
2015 811/2013
dB
kW
A
++
A
+
A
B
C
D
E
F
G
Fonderie SIME S.p.A.
Via Garbo, 27 - 37045 Legnago - VR (Italy) - Tel. +39 0442 631111
MIA HE 25 8116600
9999999999
230V~ - 50Hz - 84 W
2018
4,00
20,00
24,00
4,00
2,45
---
85
60
11,0
NOx class 6
1312CR6307
IP X5D
1312
3,8019,60
MADE IN ITALY
CALDAIA A CON DENSAZIONE - CONDENSING BOILER - CALDERA DE CONDENSACION - CALDEIRA A
CONDENSACAO - CHAUDIERE A CONDENSATION - CONDENSATIE KETEL - GASBRENNWERTKESSEL -
ȂǽǻǿȊǺ ȉȋȃȇȋȁȄȎȉǿȉ - KONDENZACIJSKI KOTEL - PLYNO KONDENZNI KOTEL - CONDENSARE
CAZAN - KOCIOL KONDENSACYJNY - KONDENZ ÁCIÓS KAZÁNOK - ɅɉɈȿɀɈɌȻɑȲɄɈɃɄ Ʌɉɍɀ Ɇ
Q max = Q min =
Q max = Q min =
PMW = T max =
T max =PMS =
P max 80-60°C = P min 80-60°C =
L
L
°C
°C
kW
kW
kW
kW
kW kW
l/min (EN 13203)
PIN n.
n
n
n
n
wnwn
P max 50-30°C = P min 50-30°C =
21,20
kW 4,20 kWnn
G20 G31 G20 G31
G20 G31 G20 G31
20,00
kW
19,60 kW
21,20
kW
4,00 kW
3,80 kW
4,20 kW
24,00
kW 4,00 kW
3 bar 0,3 MPa
7 bar 0,7 MPa
G20 20 mbar
G31 37 mba r
II2H3P
GR-SI-CZ-SK-LT-HR
G20/G31 20/37 mbar (2/3,7 kPa) B23P-B53P-C13-C43-C53-C63-C83
I2E
PL-RO
G20 20 mb ar (2 kPa) B23P-B53P-C13-C43-C53-C63-C83
I2H
HU
G20 25 mb ar (2,5 kPa) B23P-B53P-C13-C43-C53-C63-C83
2
1 2
3
4
4
Code
Model
Serial/N.
GC No
_ _ _ _ _ _
_ _ _ _ _ _ _ _ _ _ _ _ _
_ _ _ _ _ _ _ _
_ _ - _ _ _ - _ _
MIA
MIA
GIULIA
1
GIULIA

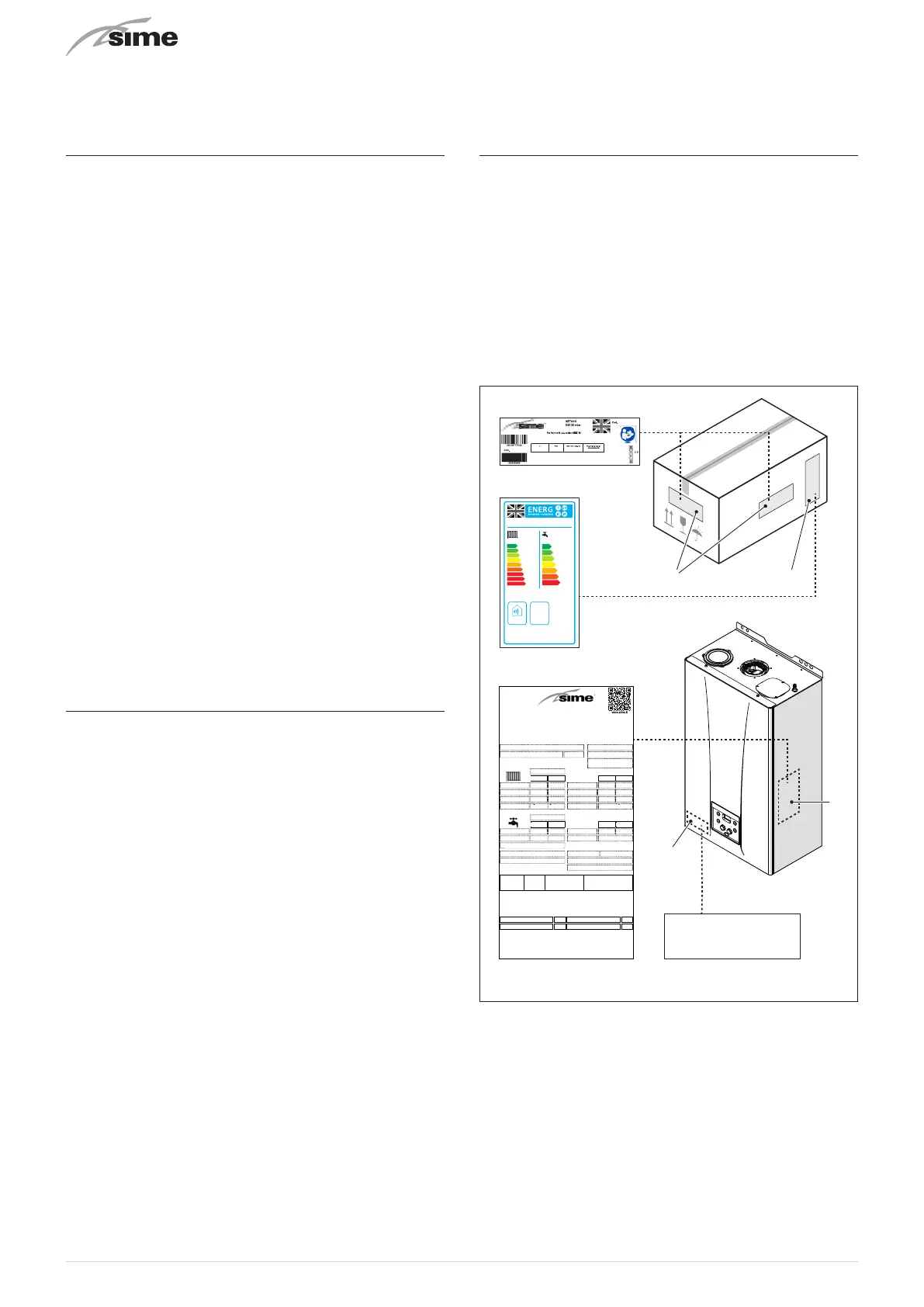

Fig. 9
m
CAUTION
Tampering with, removing or failing to display the
identification plate or carrying out any other oper-
ation which does not allow safe identification of the
product or which may hinder installation and main-
tenance operations.
