6.14.2 Heating system solutions "Y" and "S" type
Type "Y" and "S" heating systems are designed to control the
central heating system, ensuring that heated water is diverted
to the correct areas.
The type "Y" system is completed with room thermostats,
boiler thermostat and programmer.
It consists solely of a three-way valve that provides either
heating only or heating and domestic hot water. Hot water
heated by the boiler enters the valve, which sends this water
flow to either the heating distribution system, or the domestic
hot water system, or both, to operate both central heating and
domestic hot water simultaneously.
The type "S" system is completed with room thermostats,
boiler thermostat and programmer.
It consists of two separate motorized valves, one controlling
heating and the other controlling domestic hot water. These
valves can be used individually.
KEY
E Domestic hot water inlet
SE External temperature sensor
TA Room thermostat for boiler activation
TZ1÷TZ3 Zone ambient thermostat
EVZ1÷EVZ3 Zone solenoid valve
EV1÷EV2 Solenoid valves
VS Relief valve
KA1÷KA3 Zone relays
PI1÷PI3 Pump
SP Hydraulic separator
TBL Hot water tank thermostat
BO Calorifier
VE Expansion vessel

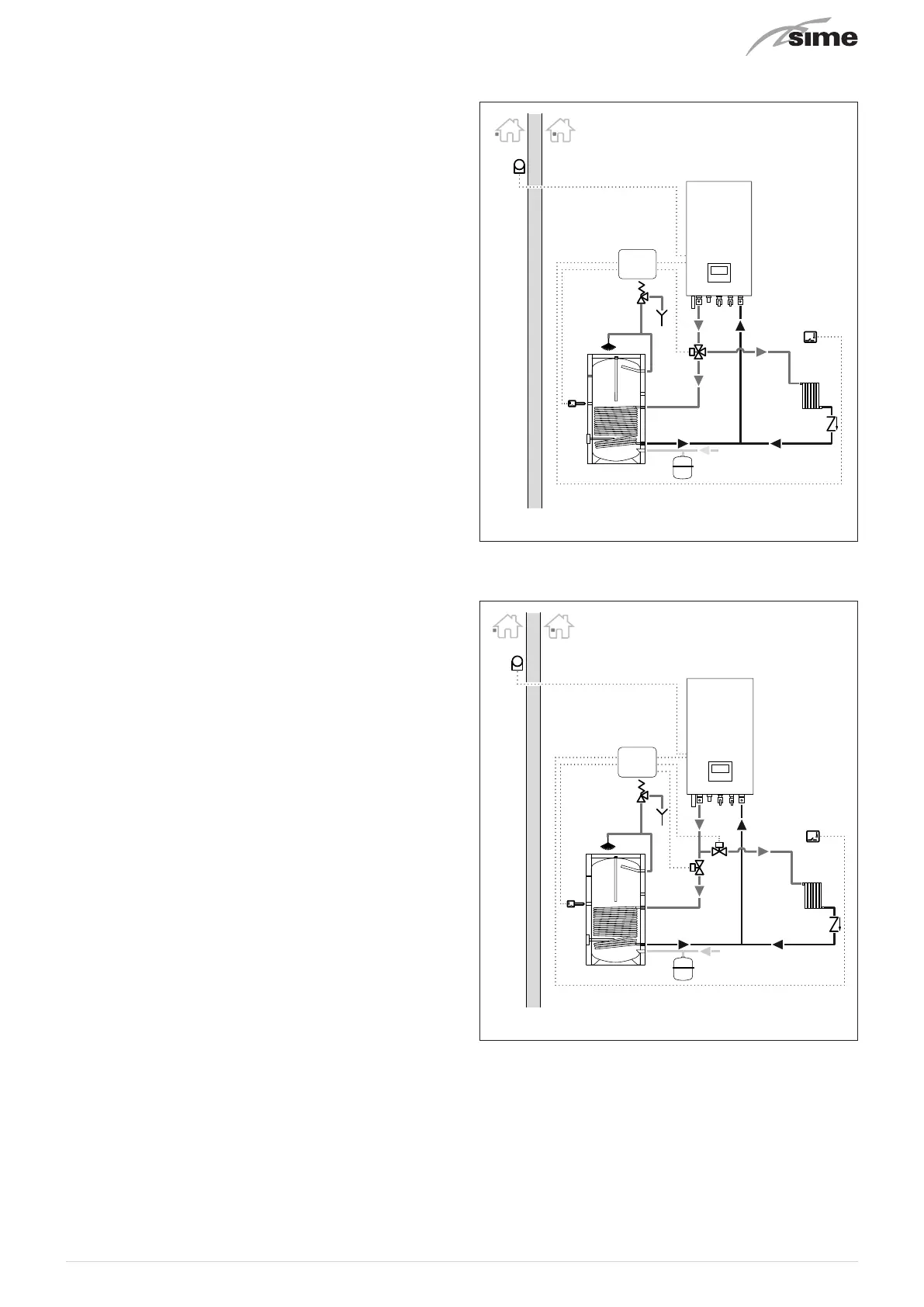

System TYPE "Y" - ONE DIRECT ZONE, external sensor and
air thermostat.
SE
TBL
BO
EVD
VE
E
Y-PLAN
SYSTEM
TA
VS
Fig. 37
System TYPE "S" - ONE DIRECT ZONE, external sensor and
air thermostat.
SE
TBL
BO
VE
E
S-PLAN
SYSTEM
TA
EV1
EV2
VS
Fig. 38
