41
– to modify the value in the permitted range, press the but-
tons
>
to increase it or
<
to decrease it
– once the required value has been reached, press the button
o
to confirm.
When all the parameter modifications have been made, exit
the parameter menu by pressing and holding down the but-
tons
<
and
o
at the same time
for approximately 5 seconds
until the initial screen is displayed.

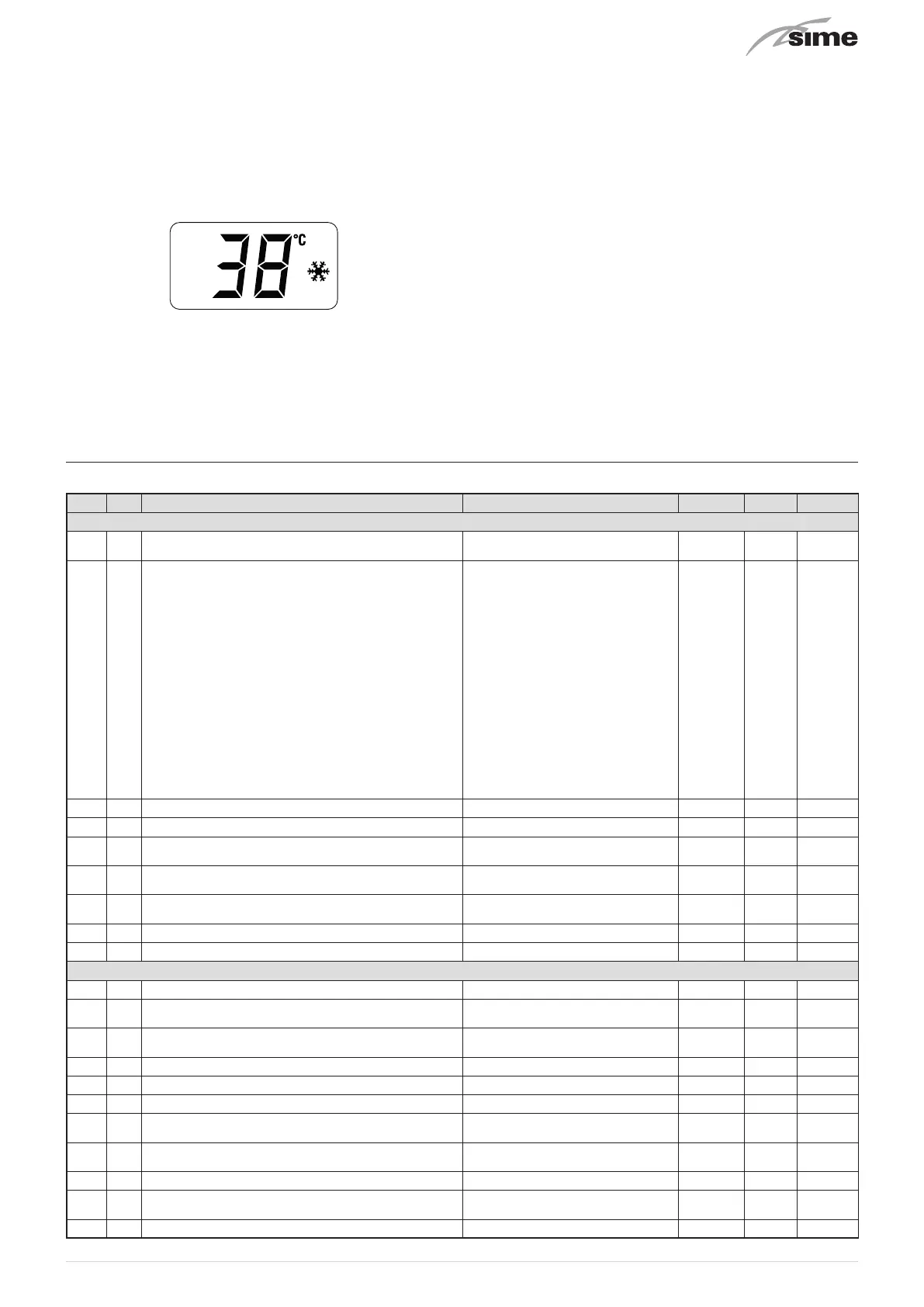

7.4 List of parameters
Type No. Description Range U/M Step Default
CONFIGURATION
tS 0.1 Index showing boiler power in kW
0 = 25 (METHANE)
2 = 25 (GPL)
- 1 --
tS 0.2 Hydraulic configuration
0 = combi
1 = storage tank with thermostat or
heating only
2 = N/A
3 = N/A (NOT used)
4=instant with solar power input
(NOT used)
5 = open vent
6 = KIT HYBRID instant boiler (NOT
used)
7 = Edea Hybrid (NOT used)
8 = Edea Hybrid SPAIN CENTRALIZED
(NOT used)
9 = HYBRIDWALL istant boiler (NOT
used)
10 = HYBRIDWALL hot water tank
boiler (NOT used)
- 1 1
tS 0.3 Not used 0 - 1 0
tS 0.4 Combustion configuration 0 - 1 0
tS 0.5
Duration in minutes of the HIGH request, in alternating
mode (simultaneous requests) (NOT used)
0 .. 180 Min 1 45
tS 0.6
Duration in minutes of the LOW request, in alternating
mode (simultaneous requests) (NOT used)
0 .. 180 Min 1 0
tS 0.7
Thermal gradient for PdC defrosting aid (ONLY for Edea
Hybrid tSp2 = 7 and 8) (NOT used)
0 .. 30 °C/Min 1 10
tS 0.8 External sensor value correction -5 .. +5 °C 1 0
tS 0.9 Ignition fan speed 80 .. 160 RPMx25 1 138
DOMESTIC HOT WATER - HEATING
tS 1.0 Boiler Antifreeze Threshold Delivery Sensor 0 .. +10 °C 1 3
tS 1.1
External Sensor Antifreeze Threshold
-- = Disabled
-9 .. +5 °C 1 -2
tS 1.2 Heating Curve Incline 0 .. 200
seconds
x 10
1 100
tS 1.3 Minimum Heating Temperature Adjustment 20 .. tS 14 °C 1 20
tS 1.4 Maximum Heating Temperature Adjustment tS 13 .. 80 °C 1 80
tS 1.5 Maximum power in CH mode 0 .. 100 % 1 100
tS 1.6 Heating Post-Circulation Time 0 .. 99
seconds
x 10
1 3
tS 1.7 Heating Pump Activation Delay 0 .. 60
seconds
x 10
1 0
tS 1.8 Heating Re-ignition Delay 0 .. 60 Min 1 3
tS 1.9
Domestic Hot Water Modulation with Flow meter (NOT
used)
0 = Disabled
1 = Enabled
- - 1
tS 2.0 Maximum power domestic hot water (NOT used) 0 .. 100 % 1 100
