coordinates can also be entered in the lower left corner of the screen. For
example, the screen view of
MultiCon CMC-99/141
when configuring
SCADALite
display mode is presented in
Fig. 7.148
.

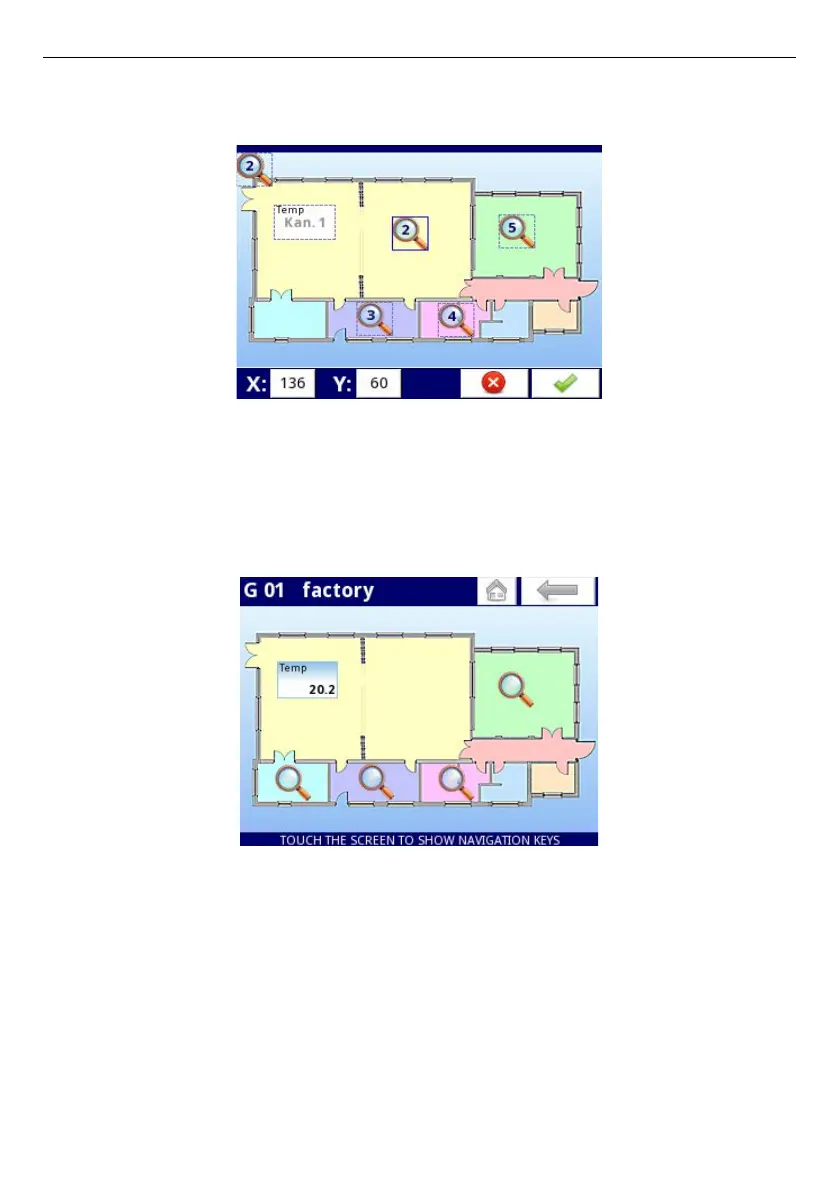

Fig. 7.148. Example of the screen view during configuring SCADALite display mode
For each group, user can define up to 10 (CMC-99) or 15 (CMC-141) group links. In the
configuration mode, the link indicator icon always displays the number of the group to which
the link is transfering. In configuration mode, the link pointer icon, that is currently in use, is
surrounded by a blue frame. Frames represent the active area of the link. An example of the
screen view with active links is presented in
Fig. 7.149
.
Fig. 7.149. Example of the screen view in SCADALite display mode with active links
In this mode the top
Home-Back
context menu is available. It appears after double-
clicking on the measurement panel area (just after the lower context menu is closed) and after
switching to another
SCADALite
view using the link to the group. The top context menu
Home-Back
remembers the last 30 views displayed in
SCADALite
display mode. The view is
saved regardless whether it was switched to another link or by using the lower context menu
GROUP
. The history of the last views is deleted after going to another display mode than
SCADALite
. If the history of the last views is empty, the
Back
button is inactive and its icon is
greyed out. The
Home
button tranferes to the
Home group
view set in Chapter
7.7.
GENERAL SETTINGS
).
231
