IMPORTANT
Load capacity of the relay
The relay in RouterNode 2 may be loaded with maximum 650 mA continu-
ous current and 12 V
DC
switching voltage (see also technical data in Router-
Node 2 manual).
Do not use the relay to operate devices that exceed these
specifications.

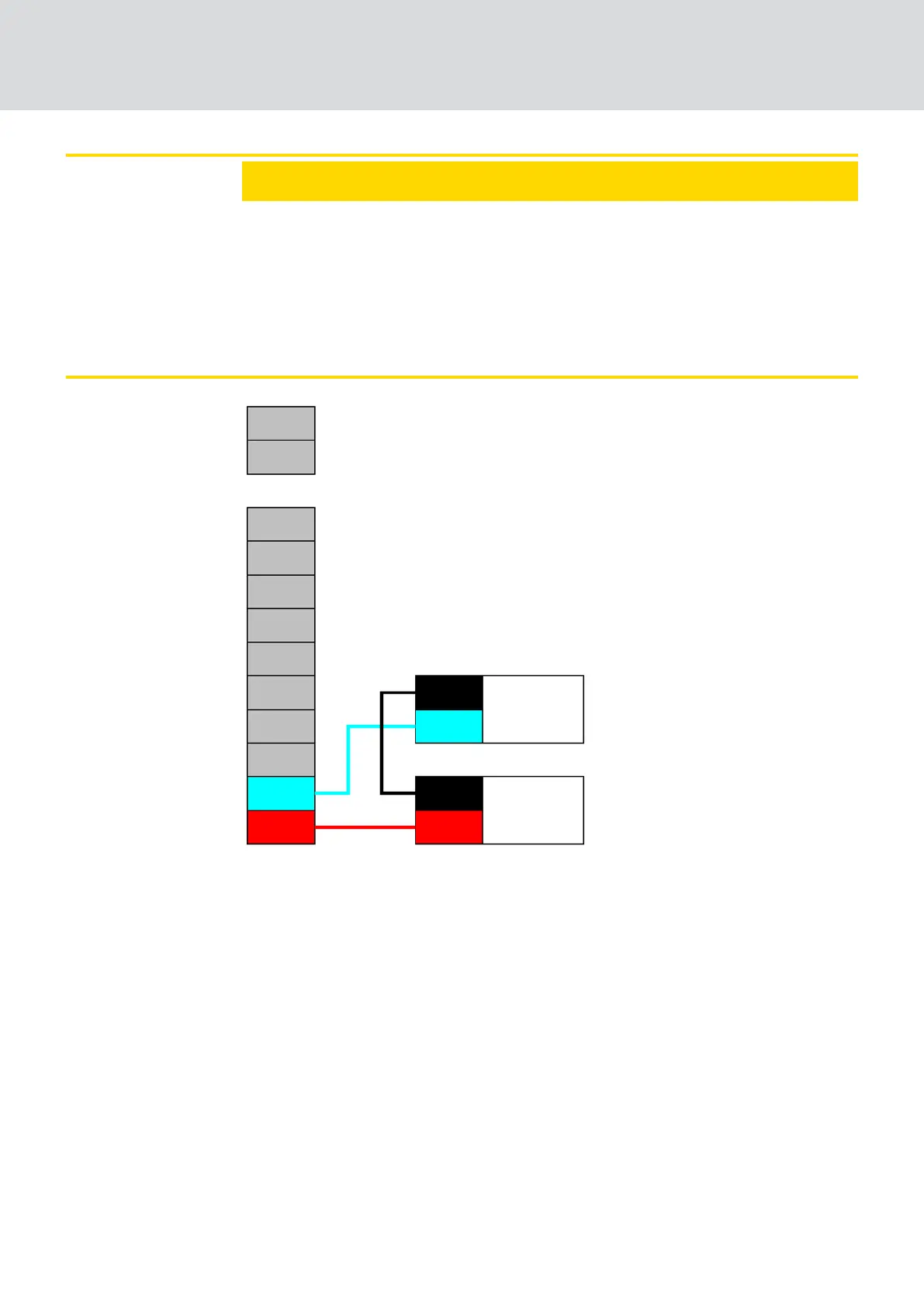

Signal
lamp
Power supply unit
GND
+
NO
COM
GND
+
1. Connect the ground connections of the power supply unit and the signal
lamp.
2. Connect the positive terminal of the power supply unit to O1.COM.
3. Connect the positive pole of the signal lamp to O1.NO.
WaveNet (Manual)
5. WaveNet Manager
92 / 210
