Inverter Installation
If you have any special installation requirements, please contact us in
advance.

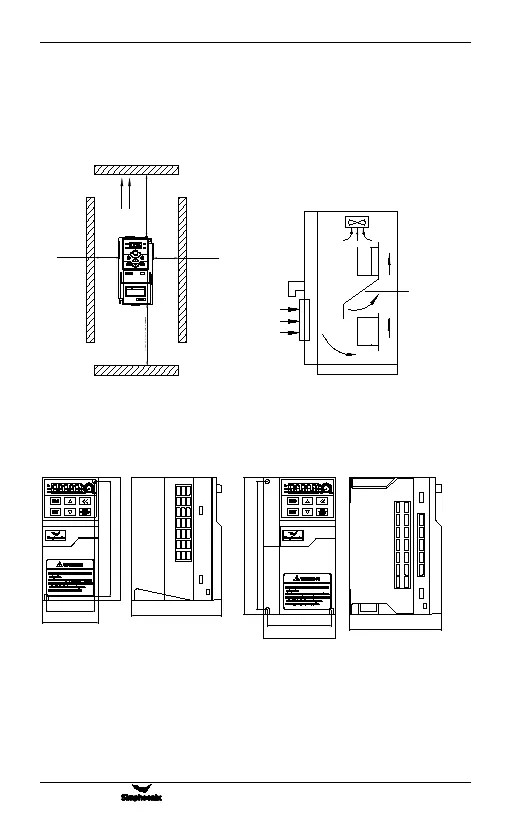

See Figure 2-1-B for installation spacing and distance requirement for single
inverter. Enough space should be leaved around the inverter. For installation of
multiple inverters, baffle plate should be applied between inverters to ensure
good heat dissipation, as shown in Figure 2-1-C.
Figure 2-1-B Installation Spacing Distance Figure 2-1-C Installation of Multiple Inverters
2.2 Installation dimension of inverters
W1
W
H
H1
D
W1
W
H1
H
D
Category I and II inverters
DL100-2S0004(B)~ DL100-2S0015(B)
DL100-4T0007(B)~ DL100-4T0015(B)
Category III inverters
DL100-2S0022(B)
DL100-4T0022(B)~ DL100-4T0075(B)
导流隔板
变
频
器
变
频
器
Baffle plate
Inverter
WARNING
1.Refer to the instruction manual before installation
3.Do not remove any cover while applying power
and at least 10min. after disconnecting power.
4.Securely ground(earth) the equipment.
2.Do not connect AC power to output terminals UVW.
and operation.
!
风扇排气
50mm以上
120mm以上
50mm以上
120mm以上
Fan exhaust
50mm
above
50mm
above
120mm above
120mm above
Inverter
