6.2 Basic control parameter group
This function parameter group is used to define the characteristics related to the
startup mode, see Figure 6-4.
Start frequency ： For systems with large inertia, heavy load, and high starting
torque requirements, the starting frequency can effectively overcome starting
difficulties. Starting frequency duration (parameter code [F1.03]) refers to the
duration of running at the starting frequency, which can be set according to actual
needs. When set to 0, the starting frequency is invalid.
0： Decelerate to stop
When stopping, the inverter will gradually reduce its output frequency to zero
according to the set deceleration time and then stop.
1： Free stop
When stopping, the inverter outputs zero frequency, blocks the output signal,
F1.02 Start frequency
Predetermined area
：
0.00 ~ min([F0.03],100.00Hz)
F1.03 Start frequency duration
Predetermined area
：
0.00 ~ 10.00Sec

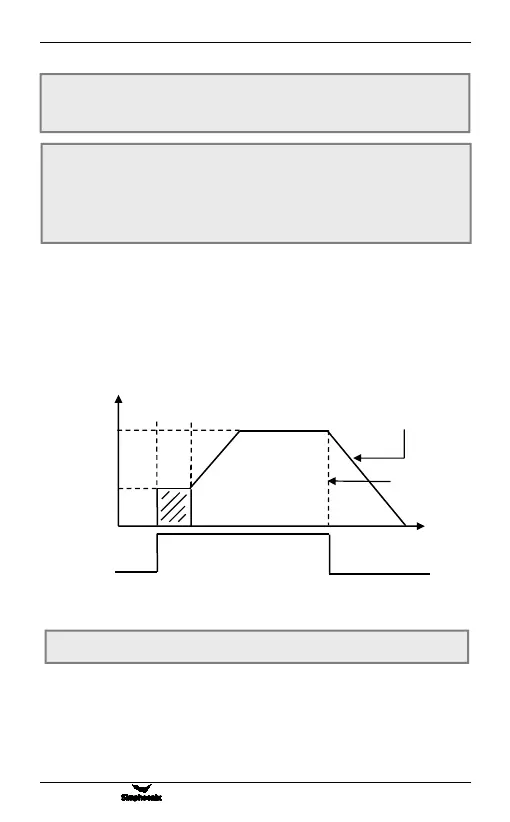

Figure 6-4 Start and stop frequency output curve
F1.00 Start pre-excitation voltage Predetermined area
：
0 .0~20.0%
F1.01 Start pre-excitation time Predetermined area
：
0 ~10.00 Sec
F1.04 Stop mode Predetermined area
：
0 ~ 1
No DC braking
deceleration to
stop
