DL100 Series Universal Low-Power Inverter
50 Detailed Description of Functions
The center frequency of swing frequency refers to the center value of the output
frequency of the inverter during swing frequency operation.
Refer to Figure 6-17 for the detailed process of swing frequency operation.

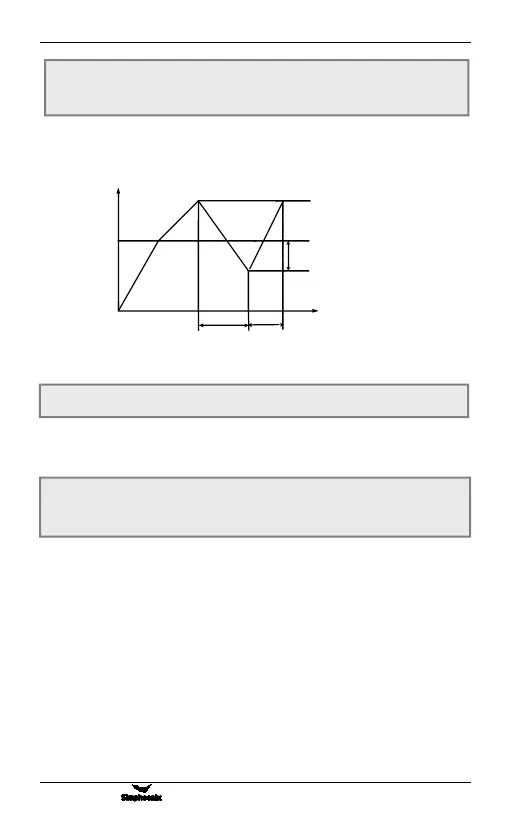

Figure 6-16 Swing frequency operation process
The swing frequency amplitude is the ratio of the swing frequency amplitude
Swing frequency amplitude=[F4.16]×upper limit frequency
The triangular wave falling time is the running time from the upper limit frequency of
the swing frequency to the lower limit frequency of the swing frequency during the
swing frequency operation, that is, the deceleration time in the swing frequency operation
cycle.
The triangular wave rise time is the running time from the lower limit frequency of the
swing frequency to the upper limit frequency of the swing frequency during swing
frequency operation, that is, the acceleration time in the swing frequency operation cycle.
F4.16 Swing frequency amplitude Predetermined area
：
0.00~50.0%
F4.18 Triangle wave fall time Predetermined area
：
0.01~600.00Sec
F4.19 Triangular wave rise time Predetermined area
：
0.01~600.00Sec
Swing frequency range[F4.16]
Swing frequency center
frequency
F4.15 Swing frequency center frequency setting
Predetermined area
：
0.00~[F0.03]
