Simplicity 1693074 Service And Repair Manual

11 Transmission Teardown
Hydro-Gear 0500 / 0650
11 - 24
Install Input Pulley
1. Install the input pulley (K, Figure 42) on the input
shaft.
2. Install the jam nut (M) and lockwasher (L). Torque to
350–400 in-lbs.
3. Install the fan (N) and secure with taptite screws (O).
Installation
See INSTALLATION HYDRO-GEAR 0500 / 0650,
Section 10 for installation procedures.
After installing the transmission perform the following
adjustment procedures found in Section 6:
• PURGING AIR FROM TRANSAXLE
After installing the transmission perform the following
adjustment procedures found in Section 4:
• BRAKE & BRAKE SPRING ADJUSTMENT
• NEUTRAL ADJUSTMENT
• GROUND SPEED CONTROL PEDAL
ADJUSTMENT
Torque to
350-400
in. lbs.
Torque to
80-100 in. lbs.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O

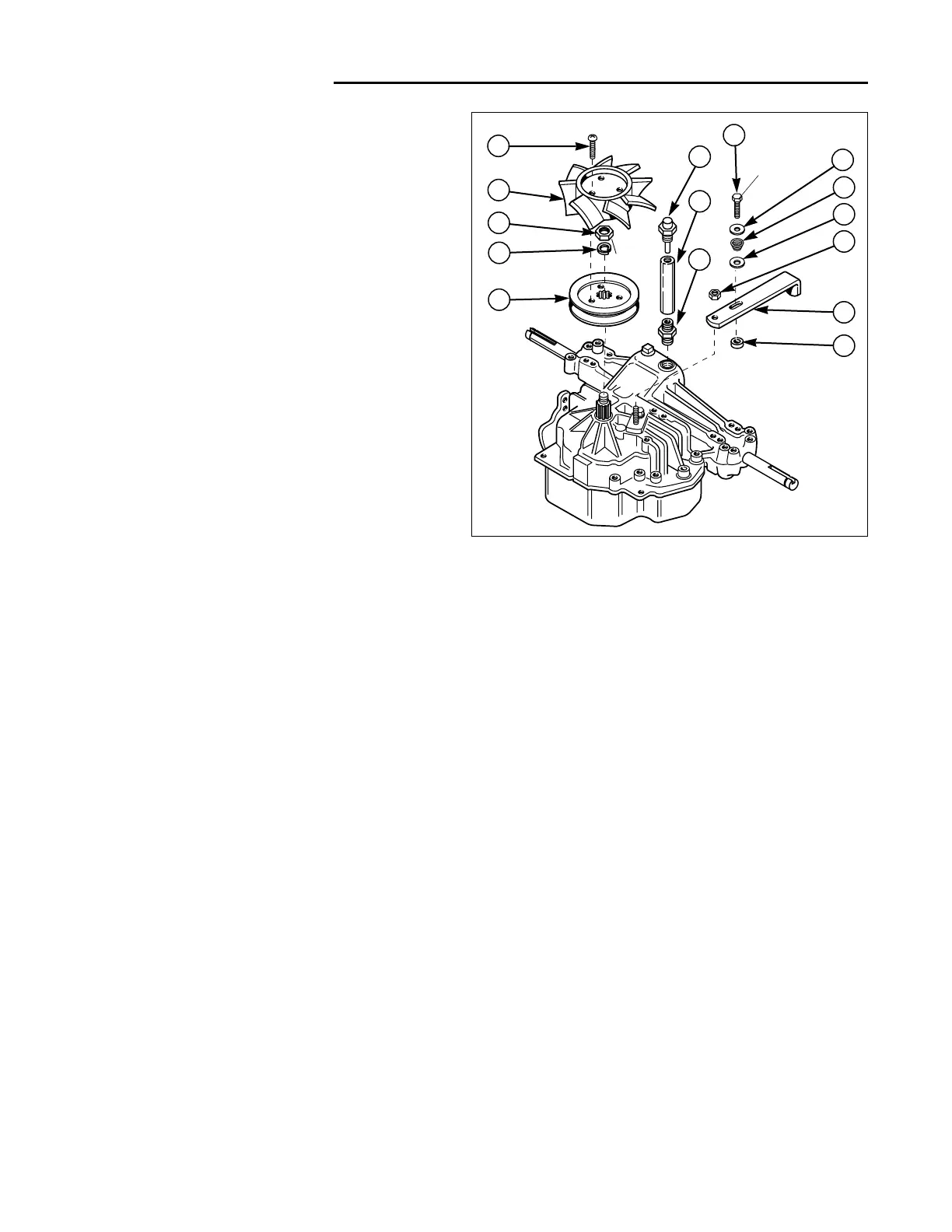

Figure 42. Remove External Components
A. Taptite Screw I. Vent Tube
B. Washer J. Vent Plug
C. Spring K. Input Pulley
D. Washer L. Lock Washer
E. Nut M. Jam Nut
F. Release Lever N. Fan
G. Spacer O. Taptite Screw
H. Tube Fitting
