15 - 3
PEDAL PAD
REMOVAL & INSTALLATION
Brake and Ground Speed Pedal Pad
To remove the foot pedal pads (A, B, C, Figure 4), twist
the pads while pulling them off the pedal. To install sim-
ply push the pad onto the pedal. If necessary, lubricate
with soapy water.
SEAT BUMPER
REMOVAL & INSTALLATION
1. Tilt the seat forward.
2. Remove the two capscrews (A, Figure 5) securing
the top of the seat deck to the frame wrapper.
3. Remove the seat bumper by sliding it out of the
groove in the seat deck.
Install in reverse order of removal.

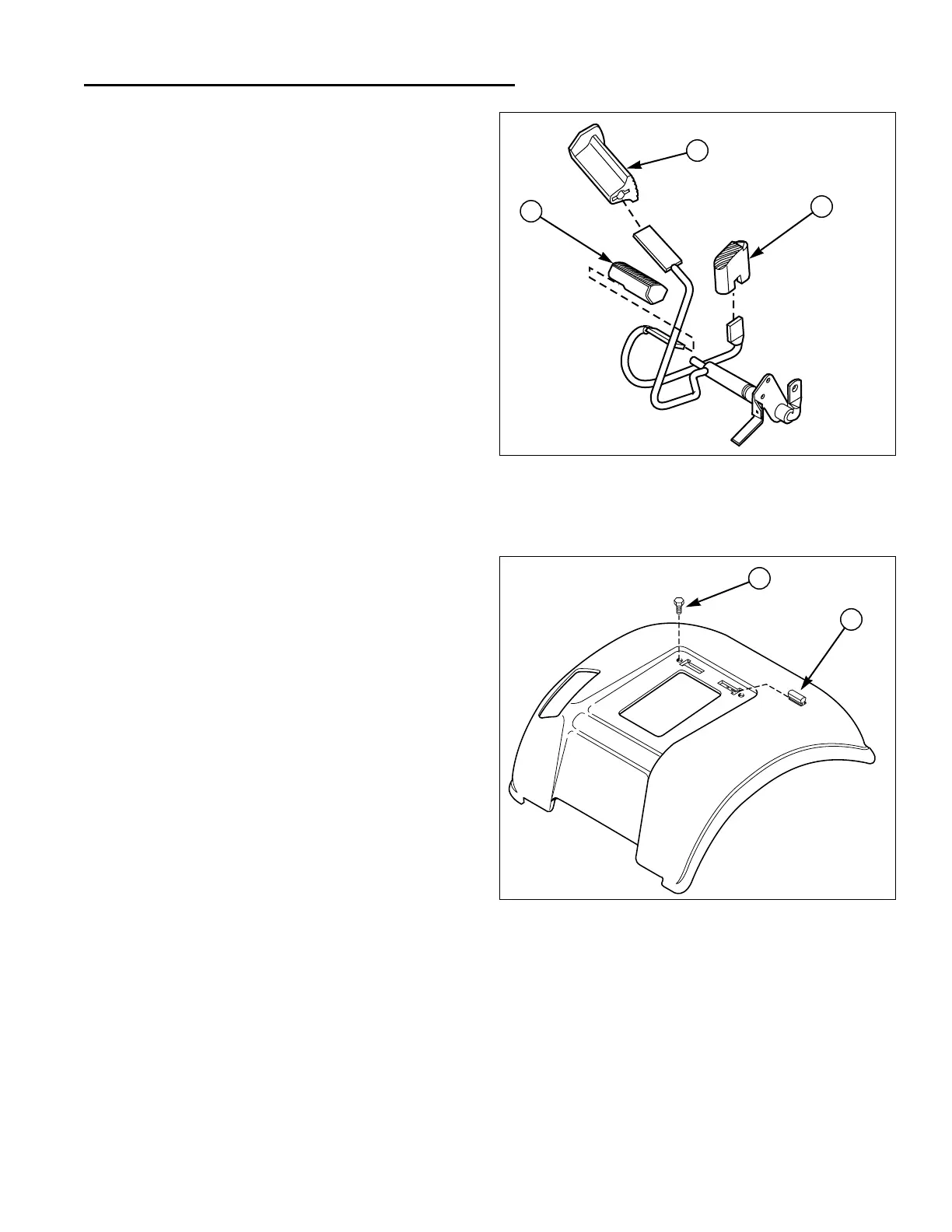

Figure 4. Foot Pedal Pads
A. Reverse Pedal Pad
B. Brake Pedal Pad
C. Forward Pedal Pad
15 Miscellaneous Component Service
Pedal Pad & Seat Bumper Service
C
B
A
Figure 5. Seat Bumper Replacement
A. Capscrew B. Bumper
A
B
