3 - 5
3 Maintenance
Lubricate Rear Axles
Lubricate Rear Axles
We recommend removing the rear wheels and lubricat-
ing the axle shafts yearly. This prevents the wheel from
seizing onto the axle shaft and makes future service eas-
ier.
Refer to Figures 2-7.
1. Remove the key and disconnect the spark plug wire
while working on the unit.
2. Elevate the rear of the unit. See Section 6.
3. Remove the plastic hub cap (H).
4. Remove e-ring (G) using a screwdriver.
5. Remove the washers (B, E), spacers (C), wheel (D),
and key (A).
NOTE: Your axle assembly may differ slightly from
the assembly pictured: washers may be missing or
doubled. This is adjusted on a tractor by tractor
basis during assembly to allow a small amount of
axle end-play.
6. Lubricate the axle shaft with anti-seize compound or
lithium grease.
7. Reinstall components in reverse order of disassembly
and lower the unit. Be sure the key (A) is in place in
the axle keyway.

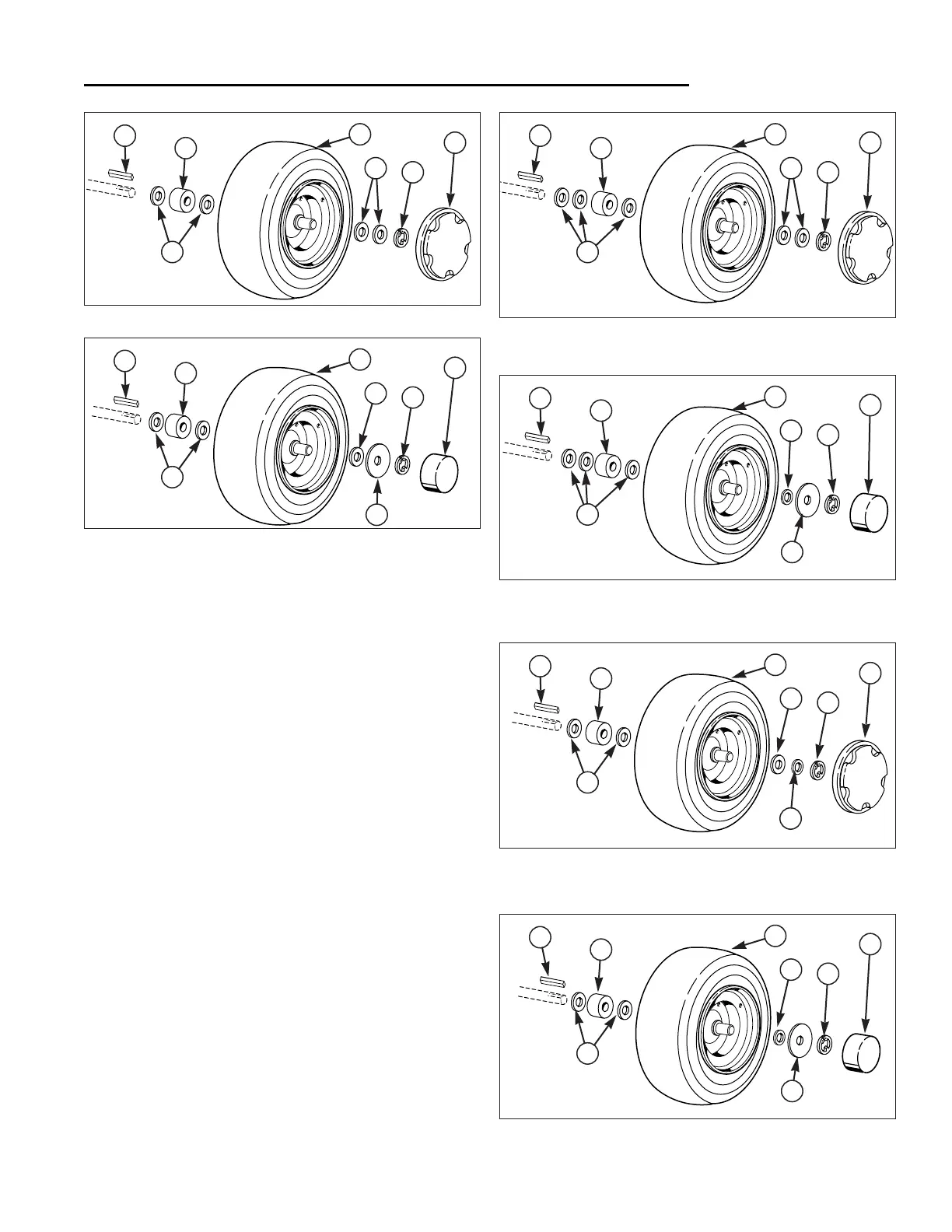

A. Key E. Small Washer
B. Large Washer F. Hub Cap Retainer
C. Spacer G. E-Ring
D. Wheel H. Hub Cap
Figure 2. Regent, Tuff Torq K56 Models
A
C
D
H
G
B
B
Figure 4. Regent, Hydro-Gear 0500/0650 Models
A
C
D
H
G
B
Figure 3. 500/2500, Tuff Torq K56 Models
A
F
C
D
H
G
B
B
Figure 5. 500/2500, Hydro-Gear 0500/0650 Models
A
F
C
D
H
G
E
B
B
Figure 6. Regent, Peerless (Gear) Models
A
C
E
D
H
G
B
B
Figure 7. 500/2500, Peerless (Gear) Models
A
F
C
D
H
G
B
E
