Simplicity 1693074 Service And Repair Manual

1 General Information
Models Covered In This Manual
1-2
MODELS COVERED, IDENTIFICATION NUMBERS, AND
BASIC CONFIGURATIONS
Mower Deck
Identification Tag
Tractor
Identification Tag

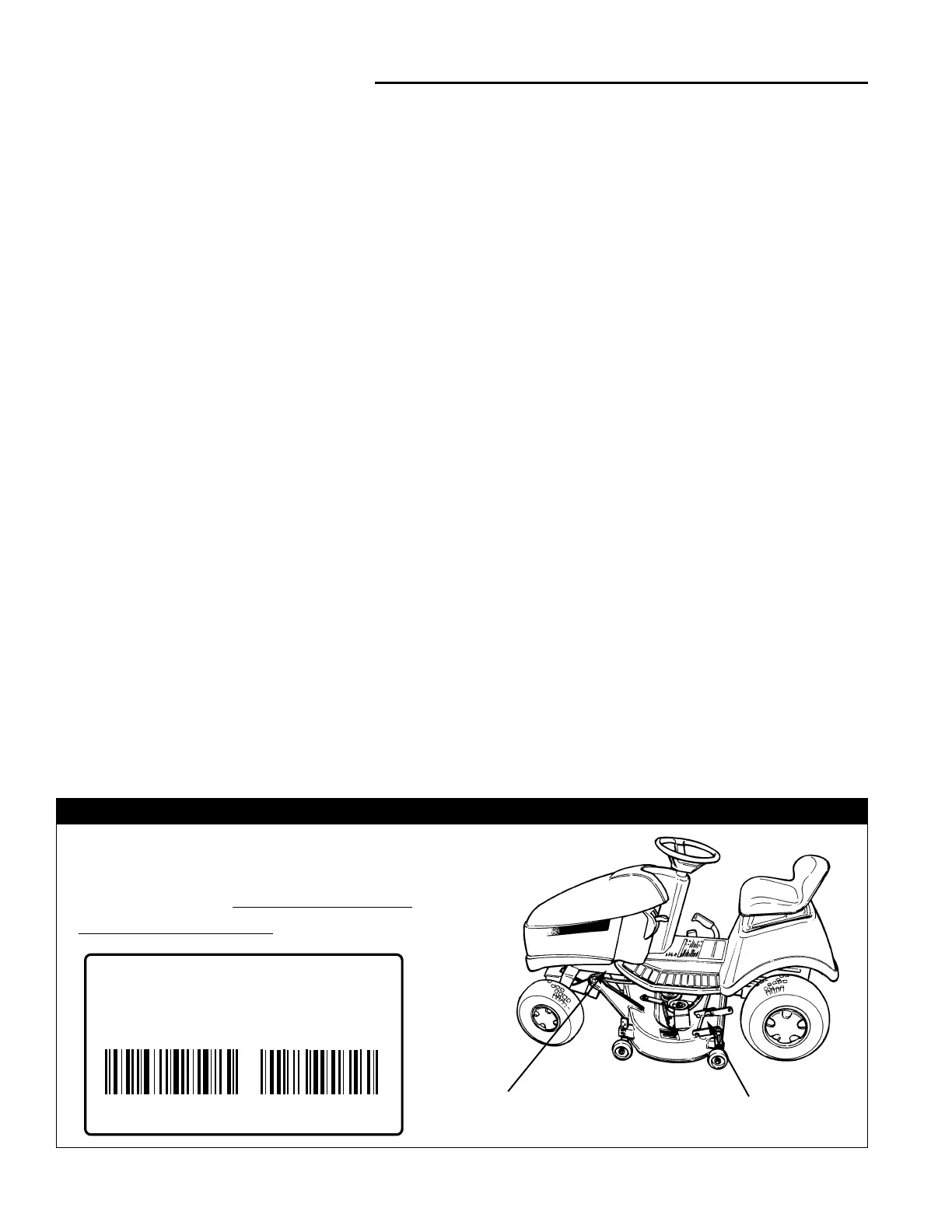

TRACTOR & MOWER IDENTIFICATION TAG LOCATIONS
169XXXX
MFG
Simplicity Manufacturing, Inc.
Port Washington, WI 53074-0997 U.S.A.
SERIAL
XXXXX
When contacting your Authorized
Dealer for replacement parts, service,
or information YOU MUST HAVE
THESE NUMBERS.
This manual contains service information for the models
listed on the following page (and similar models pro-
duced after this manual’s printing). Consult the
Identification Tag located on the tractor frame for the
manufacturer’s identification number and serial number.
Always use the manufacturer’s identification number and
serial number when ordering parts or documentation.
Attachments are not covered in this manual. Refer to the
attachment operator’s manual or authorized dealer for
service information.
Transmissions are identified by identification number
tags located on the transmission casing.
At the time of this printing Regent / 500 / 2500 series
tractors have been built with four basic powertrain config-
urations. These four basic types are referred to through-
out this manual and denoted by their transmission.
When a service procedure is specific to a certain model,
that model will be identified as one of the groups listed at
right.
MODEL IDENTIFICATION
Hydro-Gear 0500 and 0650 Models are similar utilizing
the same brake linkage . Their engines and transmis-
sions are also similar. Their primary difference is the
linkage used to connect the transmission to the foot
pedal.
Tuff Torq K-56 Models are radically different from
Hydro-Gear Models. Tuff Torq models can be easily rec-
ognized by their Kohler engine.
Peerless Models are distinct in that they are gear drive
and require clutching.
Hydro-Gear 0500 Models
Engine: Briggs and Stratton 14HP Vanguard
Transmission: Hydrostatic, Hydro-Gear 318-0500, or
Hydro-Gear 322-0500
Deck: 38” Twin Blade
Hydro-Gear 0650 Models
Engine: Briggs and Stratton 16HP Vanguard
Transmission: Hydrostatic, Hydro-Gear 322-0650
Deck: 44” Triple Blade
Tuff Torq K-56 Models
Engine Kohler Command 14HP & 16HP
Transmission: Hydrostatic, Tuff Torq K56
Deck: 38” Twin Blade and 44” Triple Blade
Peerless Models, “Gear Drive”
Engine: 14HP Kohler Command,
16HP Kohler Command,
15.5 HP Briggs & Stratton Diamond I/C,
14HP Briggs & Stratton Diamond I/C
Transmission: Gear Drive, Peerless MST-205-515 or
MST-205-515A
Deck: 38” Twin Blade and 44” Triple Blade
