3 Maintenance
Lubrication
3 - 10

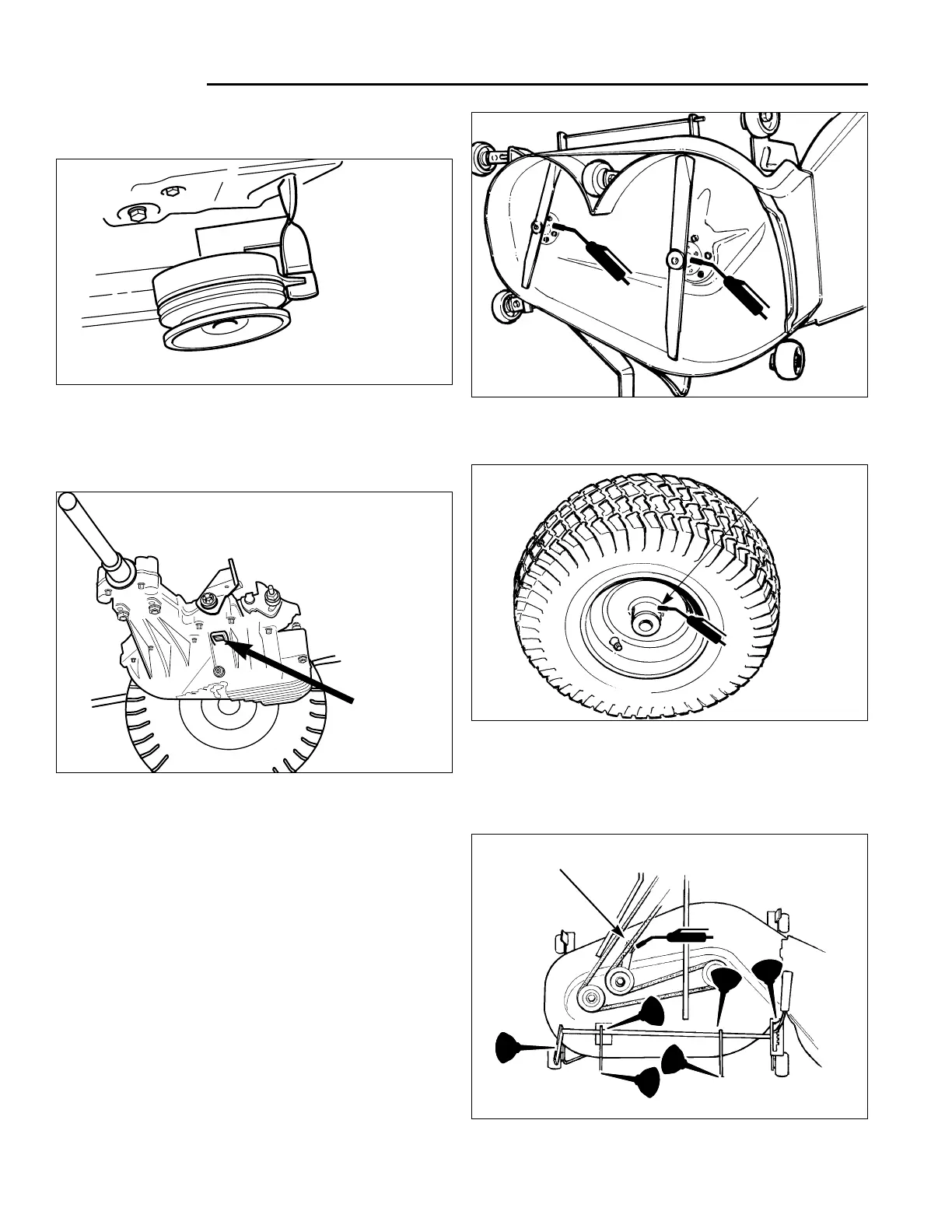

Figure 21. Lubricating Mower Deck (38” shown)
Figure 23. Lubricate Deck Linkage (38” shown)
Idler Arm Pivot
Lubrication (Continued).
Figure 22. Front Wheel Bushing Lubrication -
Grease Fitting Location (Inside hub of wheel). Wheel
shown removed from axle for visual clarity.
Front Wheel
Grease
Fitting
Figure 19. PTO (Electric clutch) The Clutch Anchor
Tab is Covered by A Plastic Cap and Does Not
Require Lubrication. Early Models Not Equipped
with a Plastic Cover Should Be Oiled Yearly
Figure 20. Hydro-Gear 0500 / 0650 Models Only -
Lubricate the Brake Stators with Spray Lubricant
Spray
Lubricant
Here
