6 - 57
6 General Repair
6D Hood, Dash, & Grill Repair

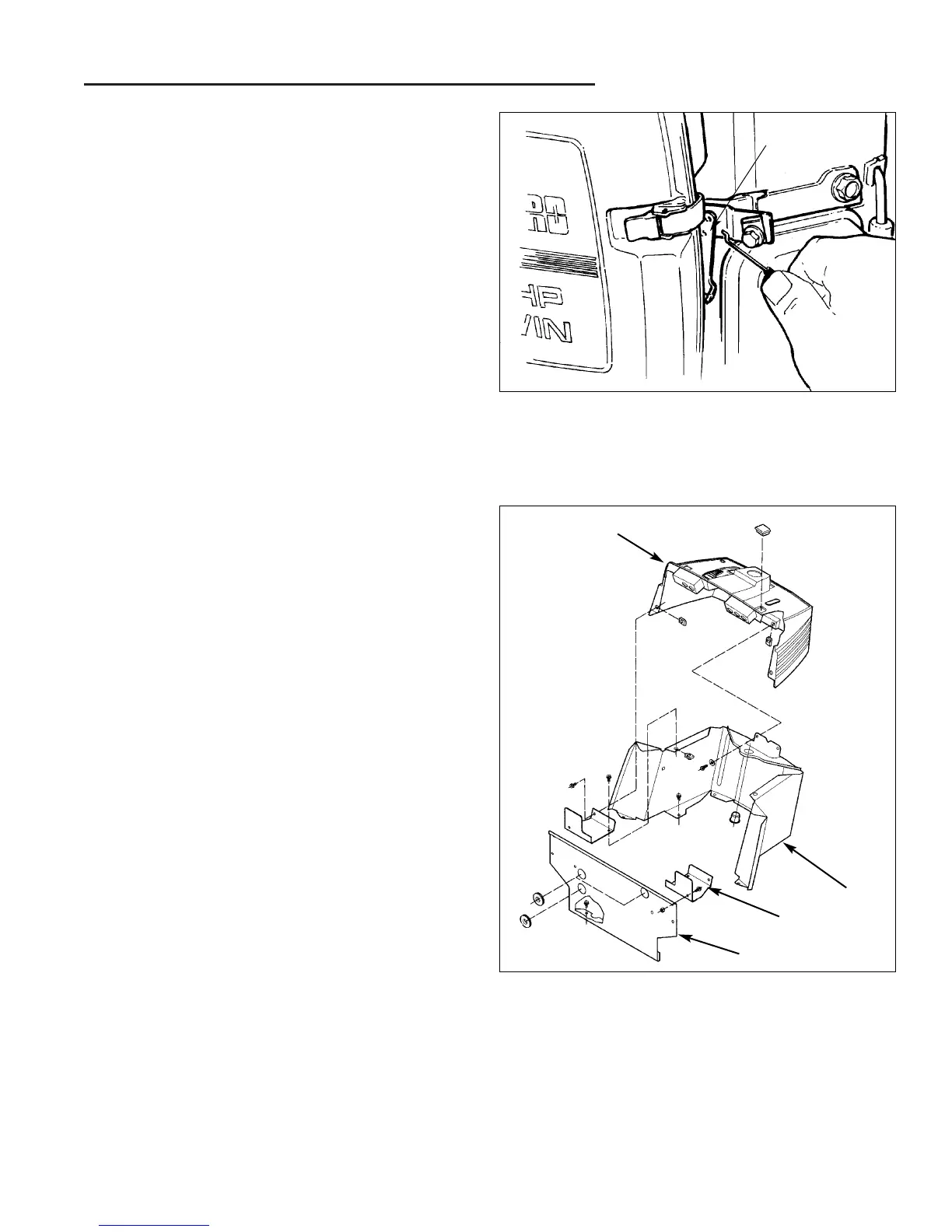

Figure D–17. Remove Cable End From Choke
Lever
17. See Figure D–17 Remove the cable end from the
choke lever. Pull the choke cable back toward the
dash assembly, and through the access hole in the
bulkhead to permit removal of the dash assembly
from the unit.
Choke Lever
18. Carefully lift the dash assembly up and away from the
lower dash, steering column, and shift lever assem-
bly. As the dash assembly is lifted, it may be helpful
to move the shift lever forward and backward slightly.
19. After the dash assembly is fully separated from the
unit, set it aside carefully to prevent damage to elec-
trical components.
Figure D–18. Dash Mounting
Bulkhead
Upper Dash
Lower Dash
Bulkhead
Support
