7 Transmission Repair
7C Tuff Torq K60
15.Remove the motor shaft assembly and the center
case sub-assembly.

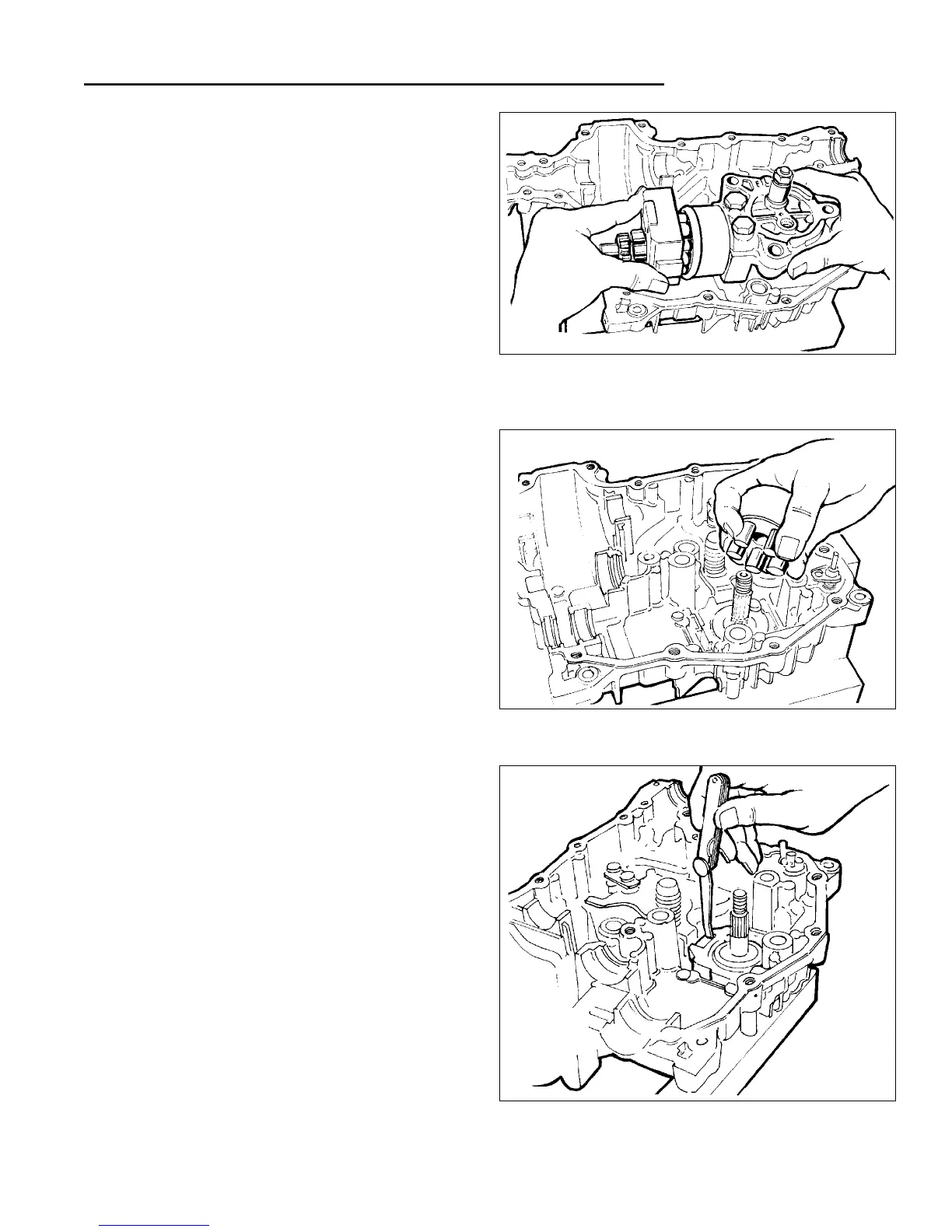

Figure C–29. Remove Center Case Assembly
16. While holding pistons into pump cylinder block with
your fingers, remove the cylinder block from the
pump input shaft.
Figure C–30. Remove Pump Cylinder Block
17.Using a feeler gauge, measure the clearance
between the swash plate and the shift blocks.
Clearance: 0–0.008” (0–0.2 mm)
Wear limit: 0.012” (0.3 mm)
Note: An excess amount of clearance at these points
can make it difficult or impossible to adjust neutral.
Figure C–31. Measure Shift Block Clearance
