5.4 Updating the data sources
A data source can be a sensor or a device connected to
SimNet, providing information and commands to other
SimNet devices.
The data sources are normally configured at first time
turn on. It should only be required to update these if a
new source is added, if a source is missing (sensor
failure), or if a source has been switched off/on.
Automatic source update

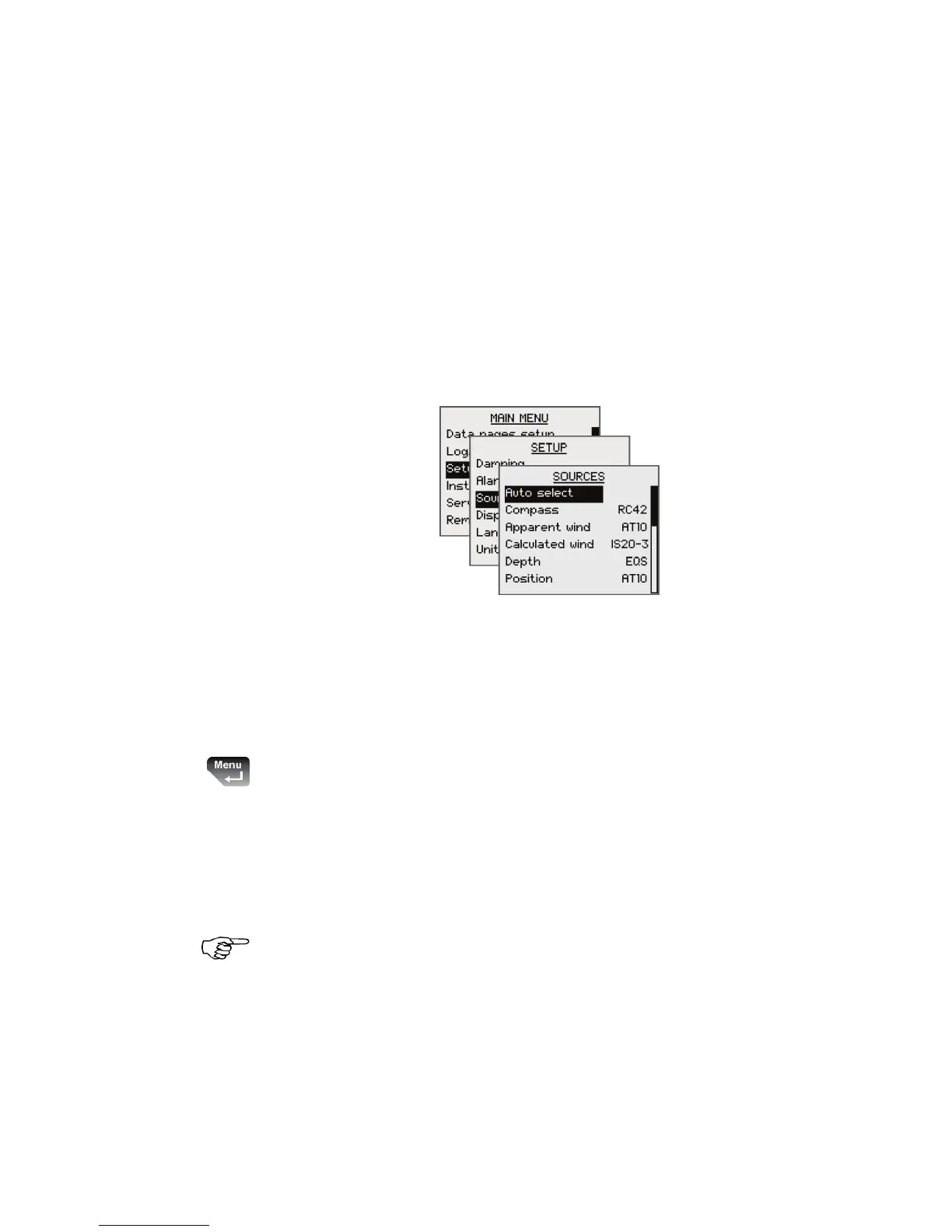

The Auto select option will look for all sources connected
to the instrument system. If more than one source is
available for each item, the IS20 will automatically select
from an internal SimNet priority list.
1. Verify that all interfaced units are powered on
2. Press the Menu/Enter key to start the auto select
procedure
The operator will be noted when the
Auto select process is completed.
If more than one source is found for each source item,
see Manual source selection, page 38.
Changing the default settings | 37
