Installation | V5035 Operator and Installation Manual

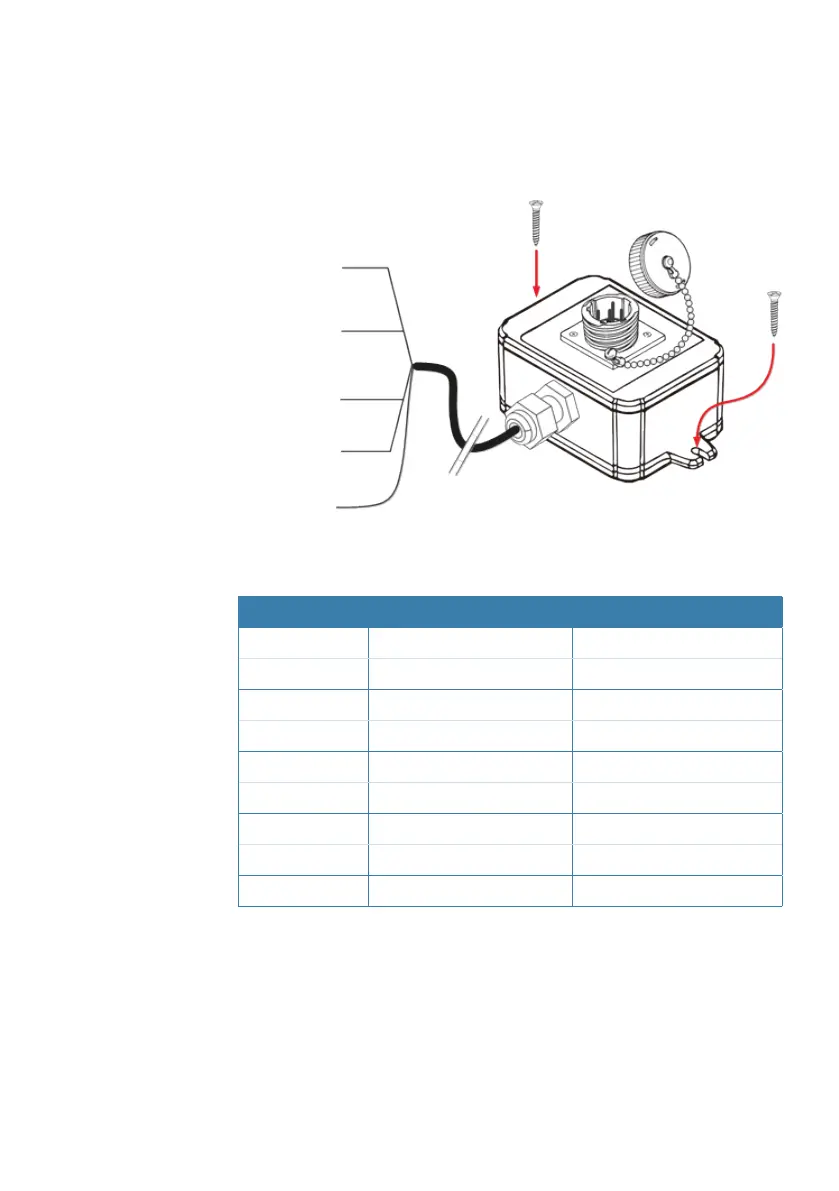

Mounting pilot plug
The Pilot Plug device provides connecting interface to pilots and
other mariners to connect their own PC or other portable device to
V5035 on board.
Tx A Pin1 (Red)
Tx B Pin 4 (White)
Rx A Pin 5 (Black)
Rx B Pin 6 (Green)
Shield Pin 9
Pin number Function Wire color
Pin 1 Tx A Red
Pin 2 --
Pin 3 --
Pin 4 Tx B White
Pin 5 Rx A Black
Pin 6 Rx B Green
Pin 7 --
Pin 8 --
Pin 9 Shield (Ground)
