Installation | V5035 Operator and Installation Manual
Item Usage
Termination
switches
The switches provide line termination configura-
tion.
Termination off Termination on
Jumper for
NMEA 2000
shield and
ground
The jumper’s purpose is to wire together
NMEA2000 cable’s shield and ground. Depending
on your scenario, you may choose not to connect
them together.
Connecting extension cable
Use the 37-pin- extension cable (1.8M) provided in the package
connect V5035 to the junction box.

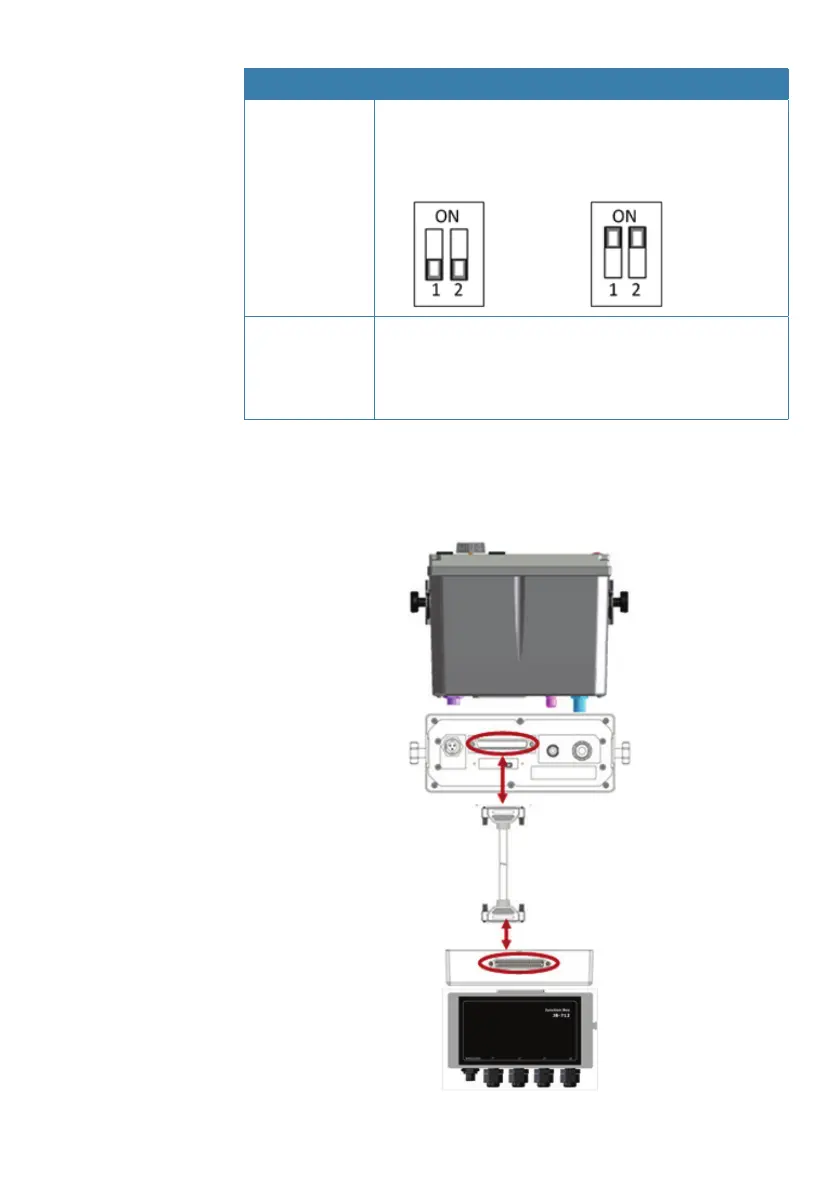

Connecting V5035 with Junction box

Simrad V5035 Specifications

General

Brand	Simrad
Model	V5035
Category	Transceiver
Language	English
