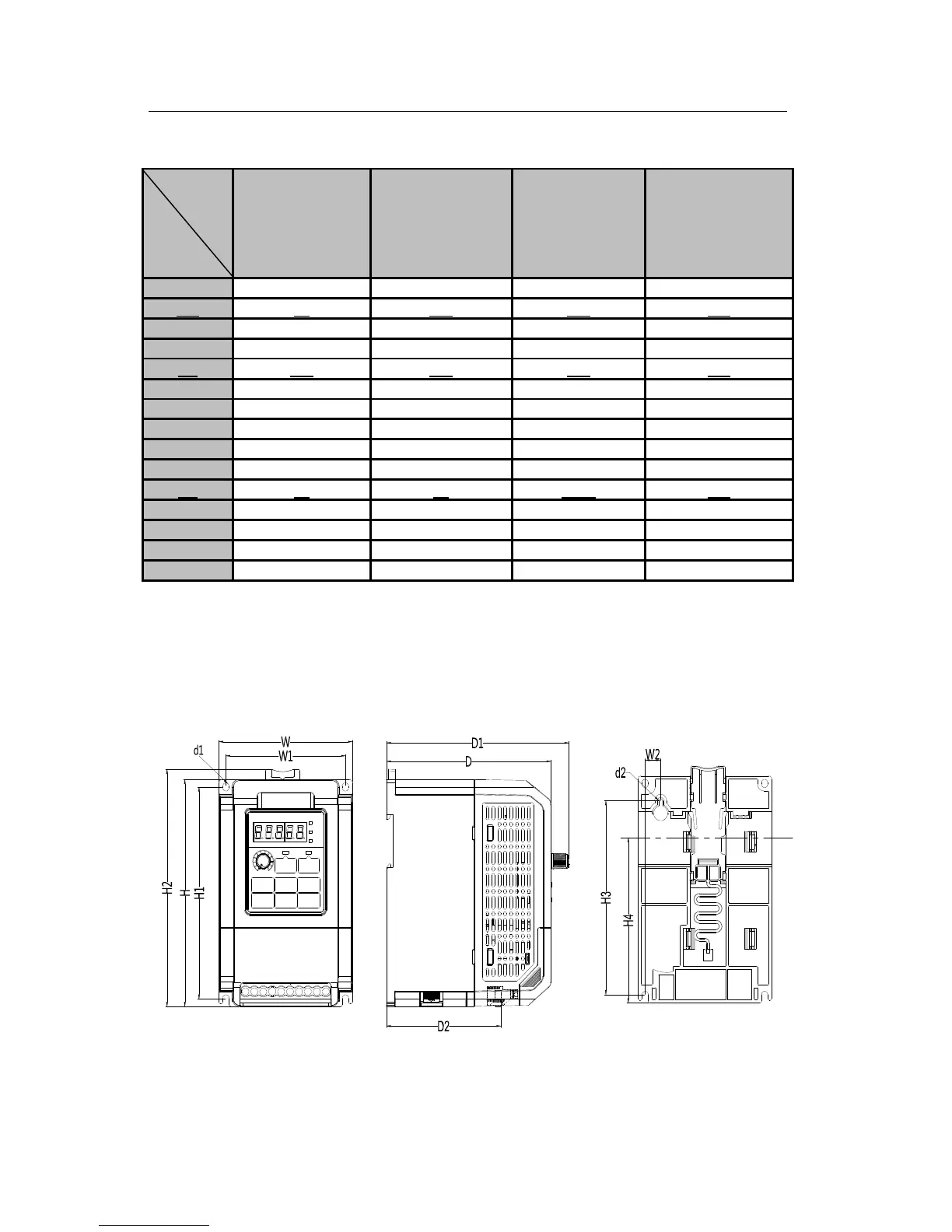

2.6 Overall and Installation Dimensions
2.6.1 Overall Dimensions
Model
No.
Unit
(mm)
EM100-0R4-1B
EM100-0R7-1B
EM100-1R5-1B
EM100-2R2-1B
EM100-0R7-3B
EM100-1R5-3B
EM100-2R2-3B
EM100-4R0-3B
EM100-5R5-3B
EM100-7R5-3B
EM100-011-3B
EM100-015-3B
W 95 110 130 150
W1 85 100 118 138
W2 11 11 / /
H 152 163 220 289.5
H1 142 153 209 272
H2 159 170 / /
H3 130.5 140.5 / /
H4 110.5 121.5 / /
D 117 132 152.5 173
D1 130 145 165.2 185.7
D2 74 84 104.7 125
d1 4.5 4.5 5.5 5.5
d2 4.5 5 / /
N.W./Kg 1 1.5 2.8 5.0
Frame SIZE1 SIZE2 SIZE3 SIZE4
Remarks:
D2:The distance between the entrance hole of power cable and the installation plate.
Symbol / indicates that the size is not available.
2.6.2 Diagram of Overall and Installation Dimensions
