User Manual
EM100 Mini Inverter
41
If there is an unexpected editing, press , and then LSB (on the right) flashing
refers to that the parameter is reset previous value. Press again to return
previous menu and do not edit parameter, but press , the edited parameter will
be saved.
Take F00.03 for instance, its original parameter value is 0, save or reset the
parameter as per the procedures shown in Figure 4-5.

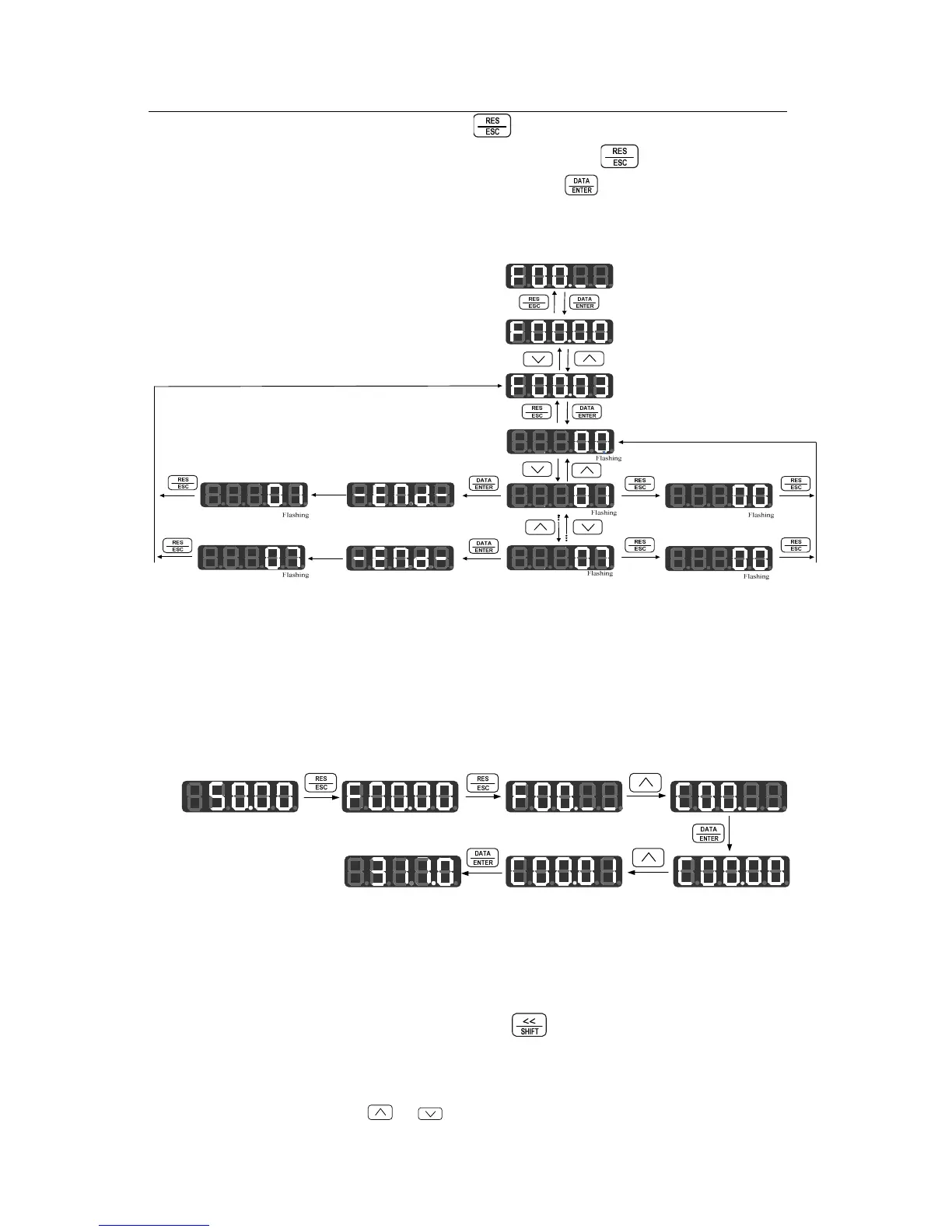

Figure 4-5 Parameter Saving and Resetting Procedures
4.2.4 Operation Status Monitoring
Enter operation monitoring code when inverter starts, and monitor the operational status
of inverter in real-time. Select a code from C00.00 ~C00.17 in operational monitoring
sub-menu, view and monitor its parameter. For instance, see Figure 4-6 for procedures to
view code C00.01 (Actual value of output voltage) when inverter is running.
Figure 4-6 Procedures of Viewing and Editing Operation Monitoring Parameters
4.2.5 Keypad Potentiometer
If the speed setting mode of inverter is in VP keypad potentiometer setting mode, when
F00.03=1, adjust setting frequency value by adjusting keypad potentiometer.
4.2.6 Shortcut Key Operation
When inverter is in operation or stop status, press , monitoring display value
displays in a cycle with output frequency (C00.00) ->Output voltage(C00.01)->Output
current(C00.02), ->DC bus voltage(C00.05).
When inverter is in operation or stop status, and keypad display is on the sub-menu of
monitoring code group, press or , the keypad will display setting value of
To Next Page
