F07.10=0 No overload protection for motor, motor is in danger of overheating damage. A
relay for overheating protection is suggested to be installed between motor and
inverter.
F07.10=1 Inverter will judge whether motor is overloaded or not based on the inverse
curve of motor overload protection.
F07.11 Motor overload protection time
The default is that inverter trips OL1 fault if 150% overload lasts for 1 minute at hot start,
see Figure 6-22 for motor overload protection time. During normal operation, motor
overload protection operates in the area between a cold start and a hot start.
Cold start: Motor protection operation time in response to an overload situation that was
suddenly reached when starting a stationary motor.
Hot start: Motor protection operation time in response to an overload situation that
occurred during sustained operation at rated current.

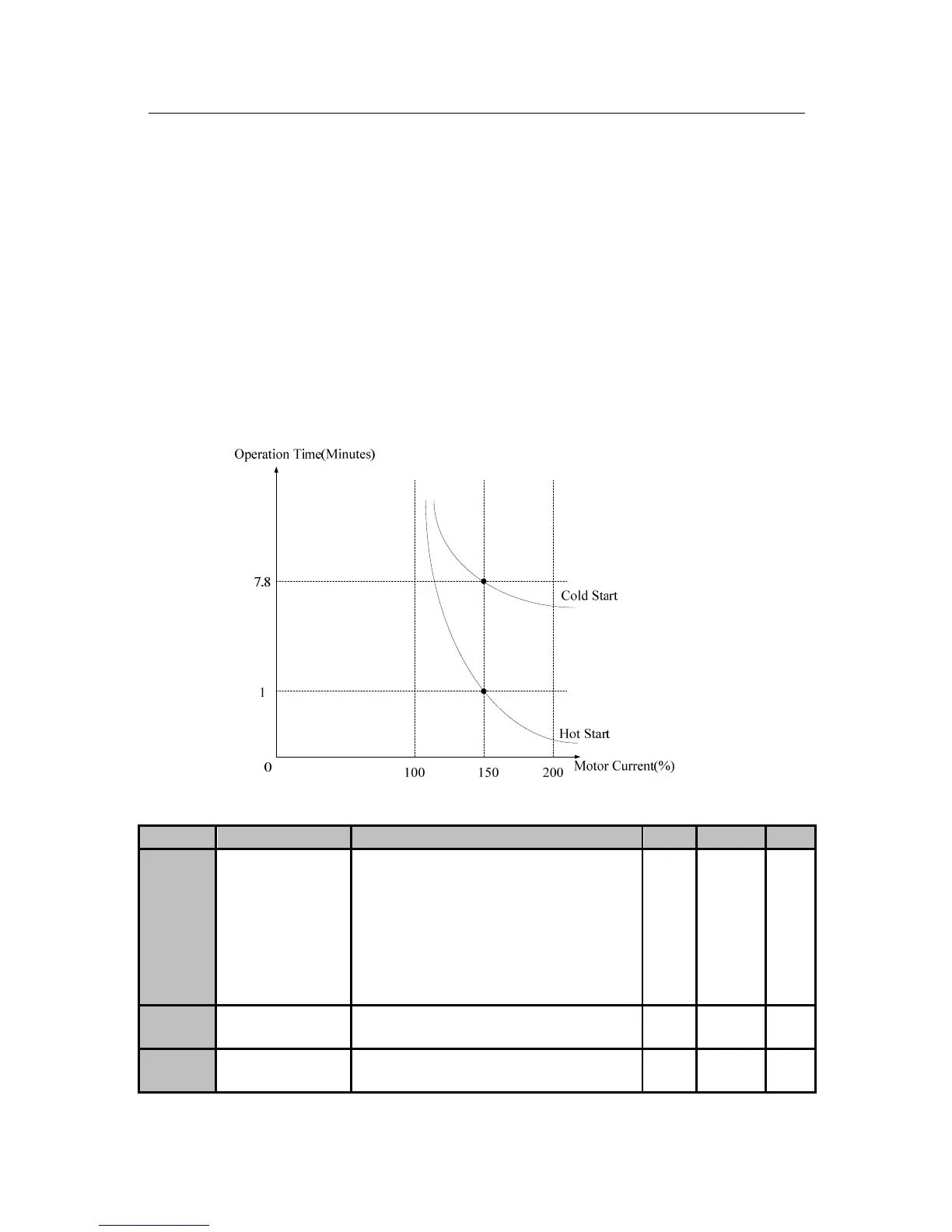

Figure 6-22 Motor Overload Protection Operation Time
No. Function Range Unit Default Typ
F07.12
Fault Retry
Control
Ones place: Fault retry times
0: Fault retry prohibited
1~3: Fault retry for 1, 2, and 3 times
4: Unlimited fault retry
Tens place: In the process of fault
retry, fault output terminals:
0：Off 1：On
00
〇
F07.13
Fault Retry
Timelag
0.01～30.00
S 0.50
〇
F07.14
Timelag
without Fault
0.01～30.00
S 10.00
〇
