5 PLATFORM COMPONENTS
The figure below shows platform components. Your machine may have different platform components due to differ-
ent configuration.

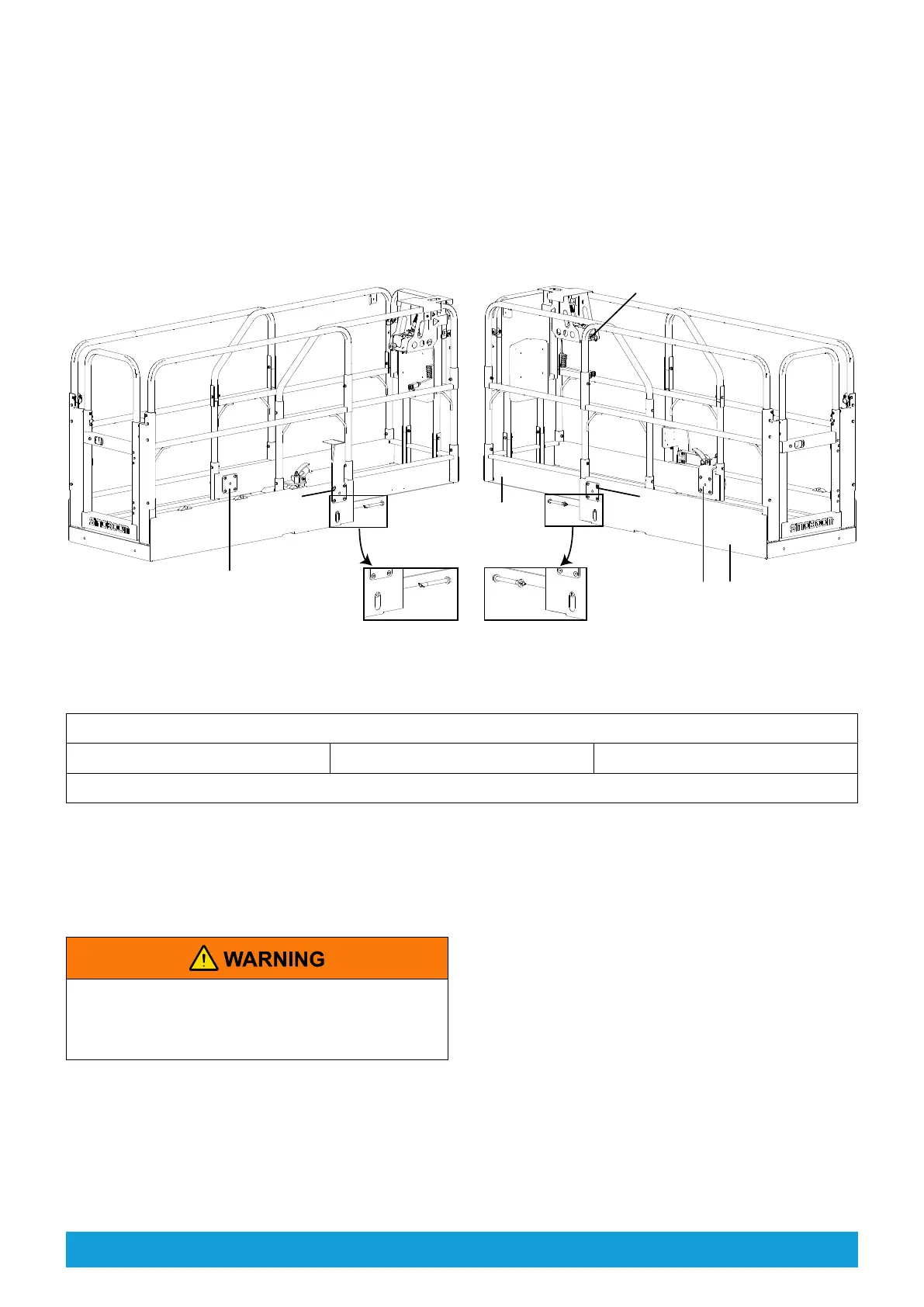

Fig. 1 Diagram of Platform Components
Table 5-1
A: Platform wear pad fixed end installation (including bolts and gaskets)
1: Platform extension 2: Main platform 3: Platform controller
4, 5, 6, 7: Wear pad support
5.1 PLATFORM CONTROLLER
Disassembly
Before performing such disassembly tasks,
disconnect the battery and disconnect the
charger from the AC outlet. Contact with live
conductors may result in serious injury or death.
1. Make sure the machine is in stowed position.
2. Turn off the machine and press the emergency stop
button at the platform controller and ground
controller.
3. Mark and disconnect the harness connections in the
platform controller.
4. Remove the fastening bolts on the bottom of the
platform controller.
5. Carefully remove the platform controller.
Installation
For installation, follow the disassembly procedure in re-
verse order.
5.2 PLATFORM ASSEMBLY
The platform assembly is composed of the main plat-
form and platform extension. The platform assembly
shall be disassembled and installed as follows:
Disassembly
1. Make sure the machine is in stowed position.
2
1
3
4
5
6
7
A
