© Jan. 2024 36 0608ME All Maintenance Manual
CHASSIS COMPONENT
exceeds 3 mm [0.118 in]), replace the wear pad
immediately.
NOTICE
If the wear pad on one side is excessively worn, the
wear pads on both sides must be replaced together.

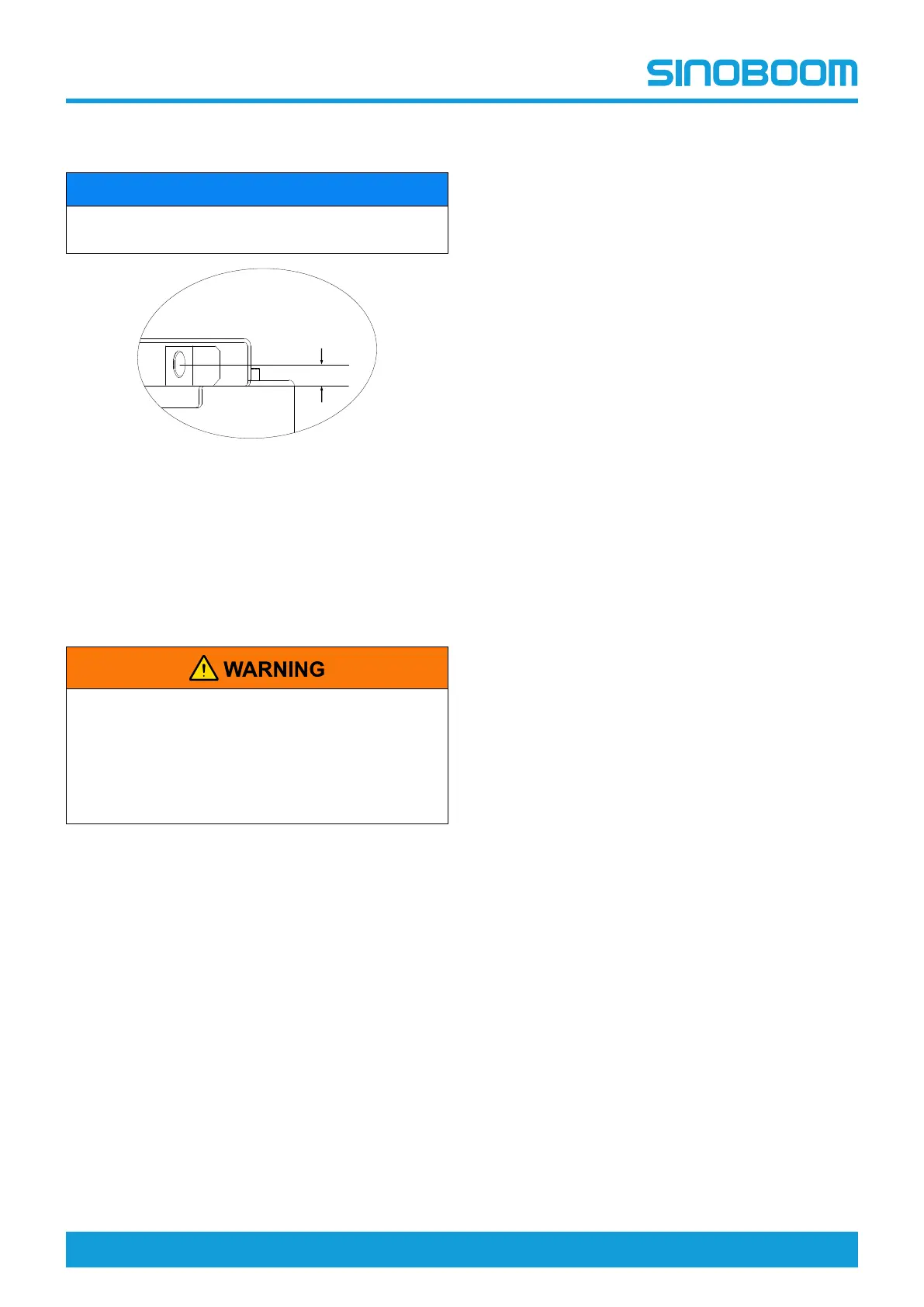

Fig. 2
L=56 mm (2.2 in)
7.4 BATTERY
• Before removing the battery, the charger
power supply and the entire machine’s operat-
ing power must be cut off.
• The battery case may only be disassembled
by qualified/authorized personnel; improper
work may result in system damage.
1. Place the machine in a ventilated and spark-free
environment.
2. Open the left chassis compartment to locate the
battery.
3. Mark and disconnect the wire harness connection
on the negative terminal of the battery, then discon-
nect the wire harness connection on the positive ter-
minal of the battery.
4. After securing the battery with slings, remove the
battery from the machine using suitable lifting
equipment.
To Next Page
