MK32E User Manual V1.1

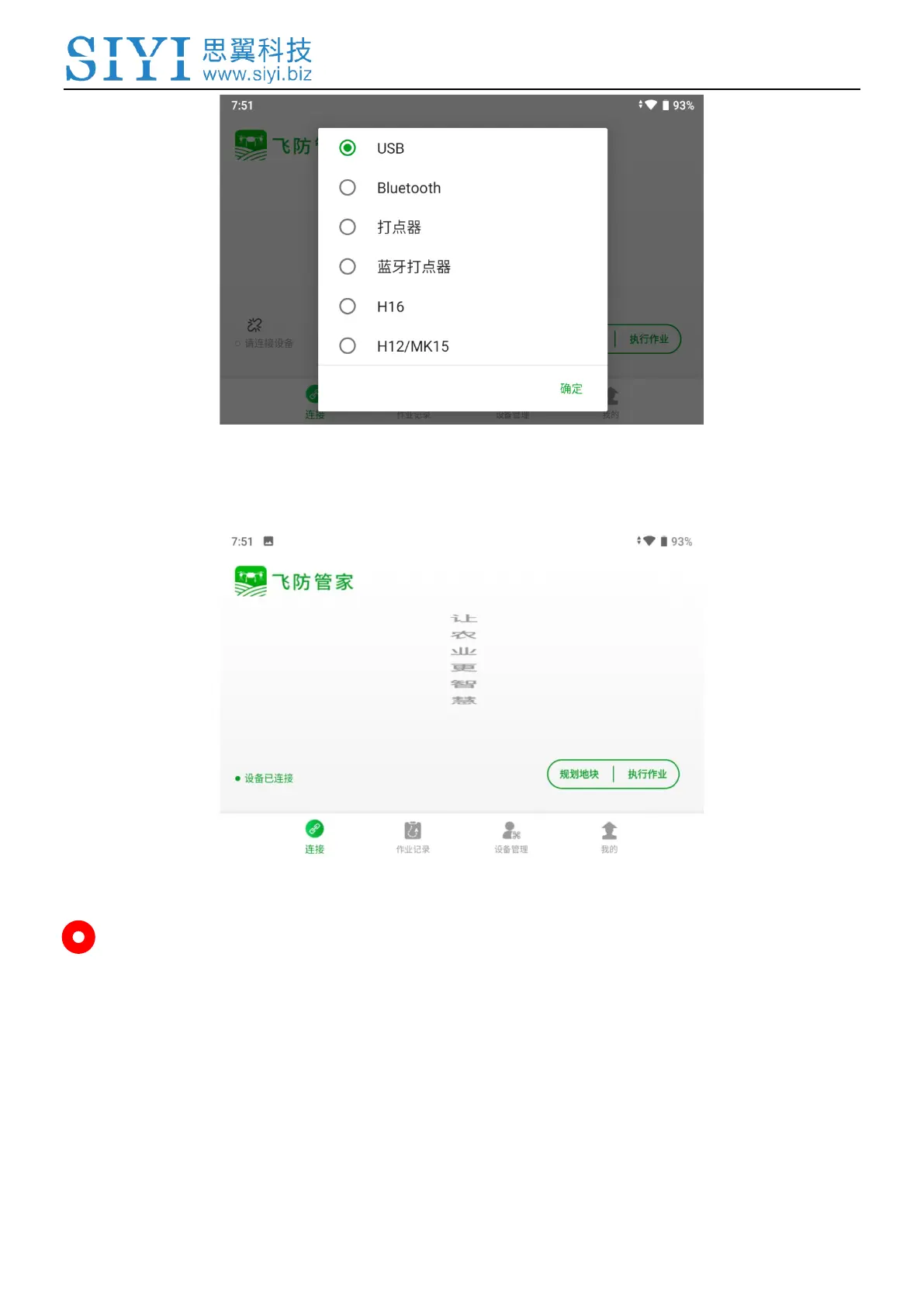

3. After confirming, remote controller will communicate with JIYI app automatically

and shows “device connected”. Datalink connection is established.

Mark

SIYI links also support datalink connection to JIYI Agri-Assistant through USB COM and

Bluetooth.
