MK32E User Manual V1.1

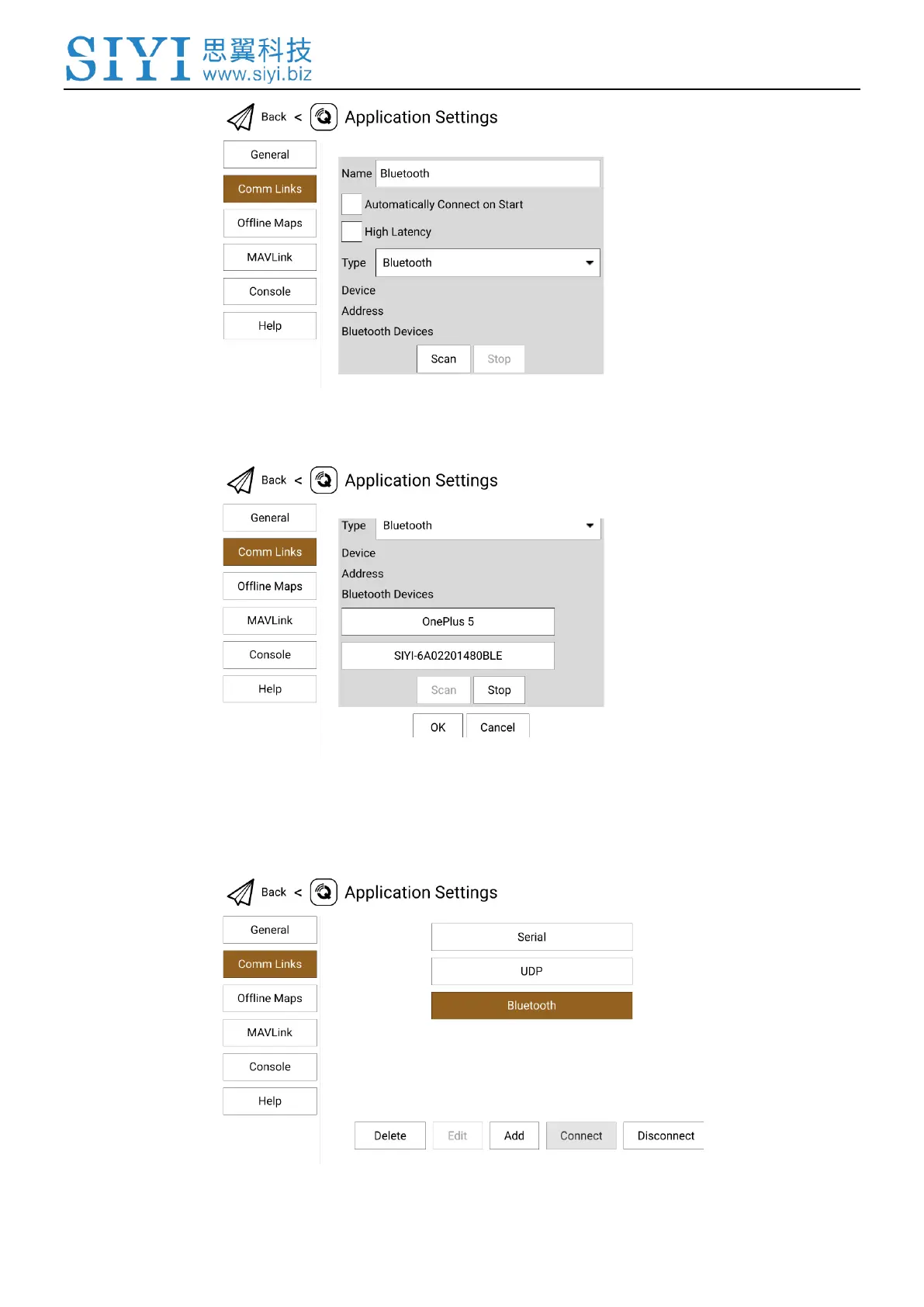

4. Set the type as “Bluetooth”, then touch “Scan”.

5. Touch the Bluetooth device of which the name is starting with “SIYI-XXXXXXX”,

then touch “OK” to go back to the Comm Links page.
