VD32 Remote Controller User Manual v1.2
- 68 -
2020 SIYI Technology Copyright
extending ports
Joystk Cali (Joystick Calibrating): Calibrate the joysticks
LD Calibrtn (LD Calibrating): Calibrate the left dial (LD)
EXT/IMT Stt (Export/Import Setting Data): Export the transmitter settings or model
settings
Power Ratio: Adjust the power ratio
ESC Cali: Calibrate ESC through PWM ports on the sky station

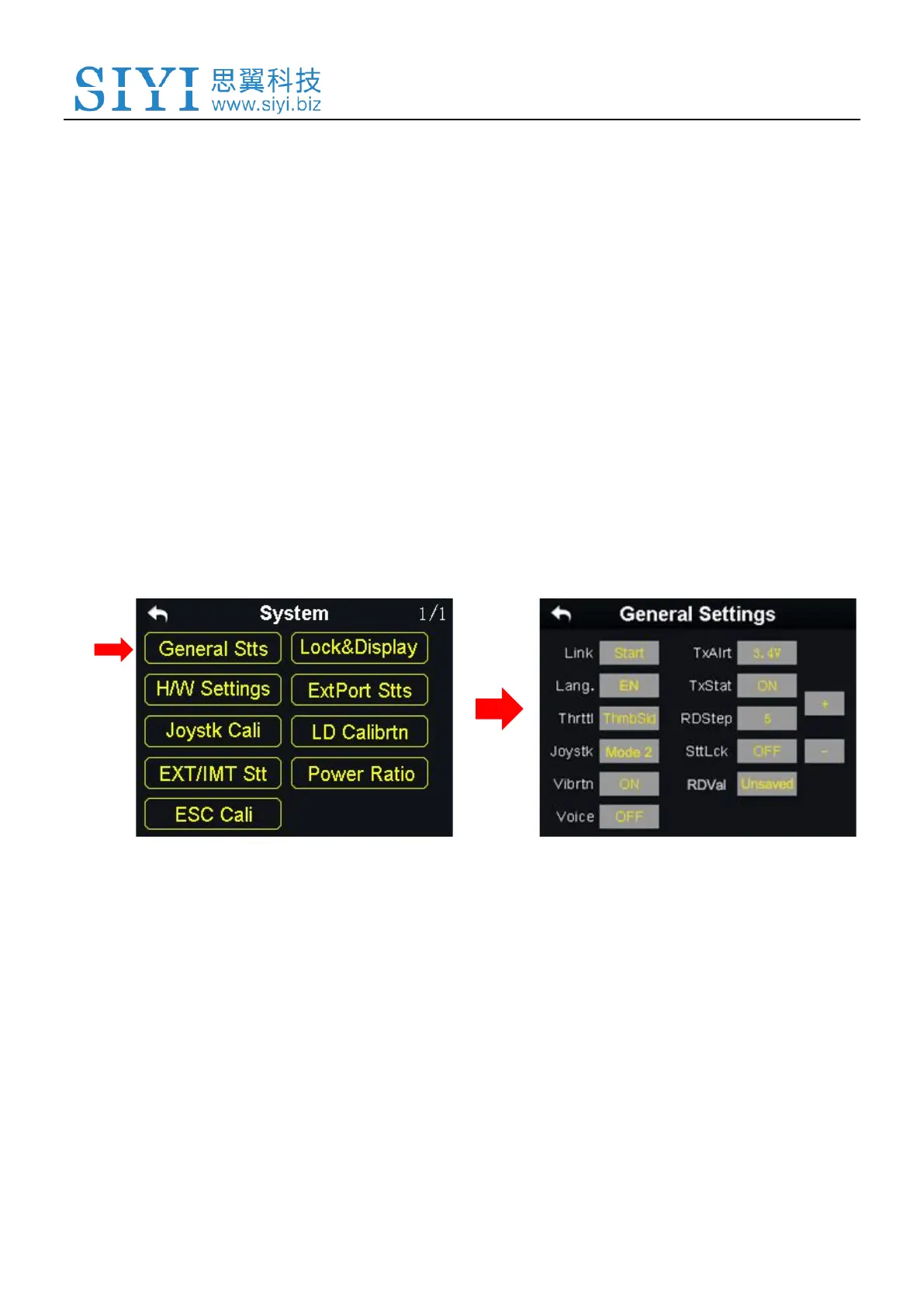

6.1 General Settings
General Settings Menu Introduction
Link (Linking): Start linking VD32 transmitter to receiver.
Lang. (Language): Switch the system language between Chinese/English.
Thrttl (Throttle Type): Switch the throttle joystick type between “Self-centering” and
“Thumb-slide”.
