SIYI VD32 - 6.6 LD (Left Dial) Calibrating

VD32 Remote Controller User Manual v1.2
- 76 -
2020 SIYI Technology Copyright

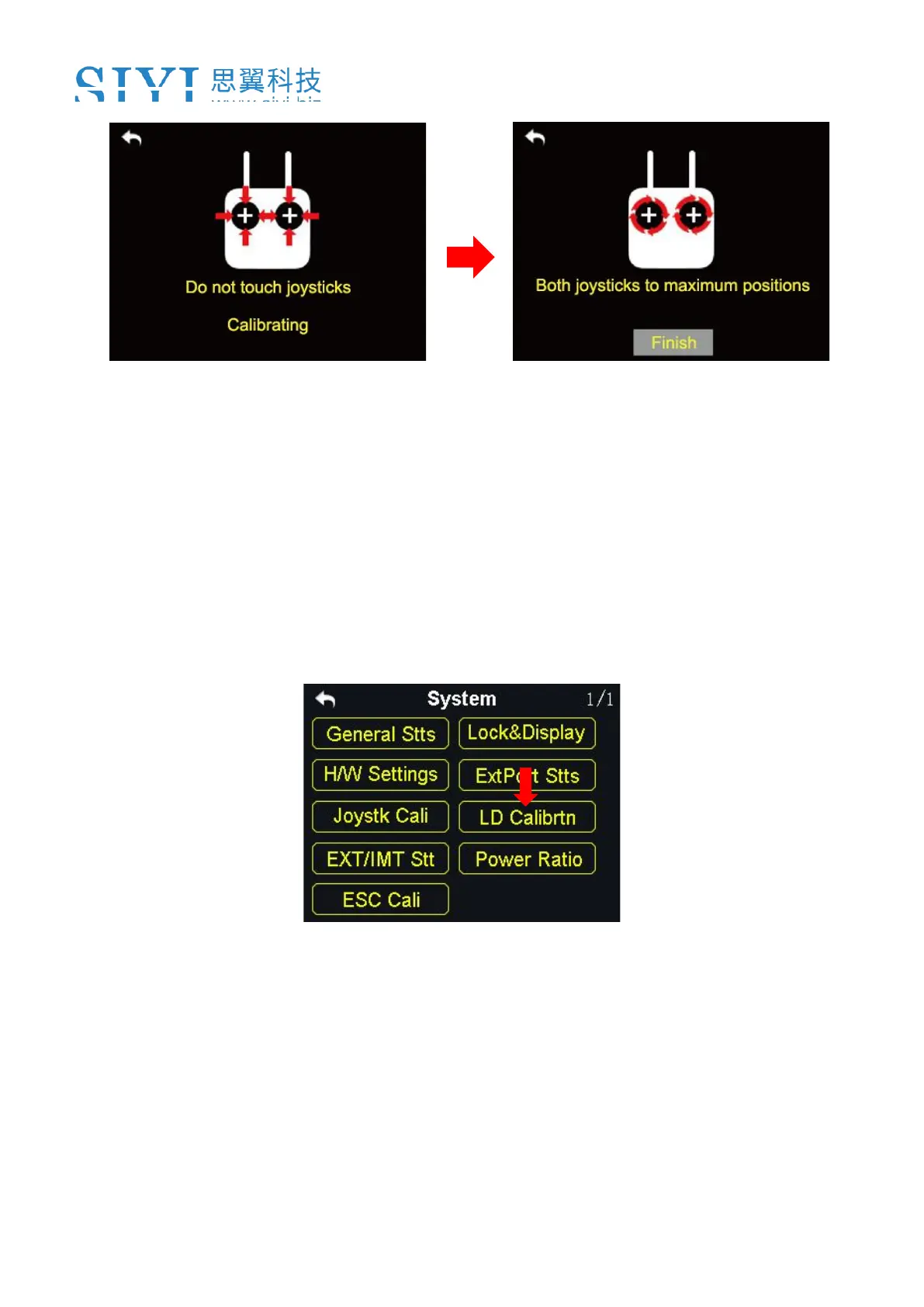

6. When the detecting is finished, push both joysticks to the maximum position and
move them in circle for several times;
7. Tap on “Finish” when it is over.
6.6 LD Calibrating
Calibrating the left dial can maintain its output accuracy. The left dial requires
calibration when it stays out of the middle position (channel value is not 0) or it fails
to reach the maximum / minimum position.
Steps to Calibrate LD
1. In the system settings menu, tap on “LD Calibrating”, in the screen it shows the
