MAINTENANCE PROCEDURES
195
mmr2009-133-002_a

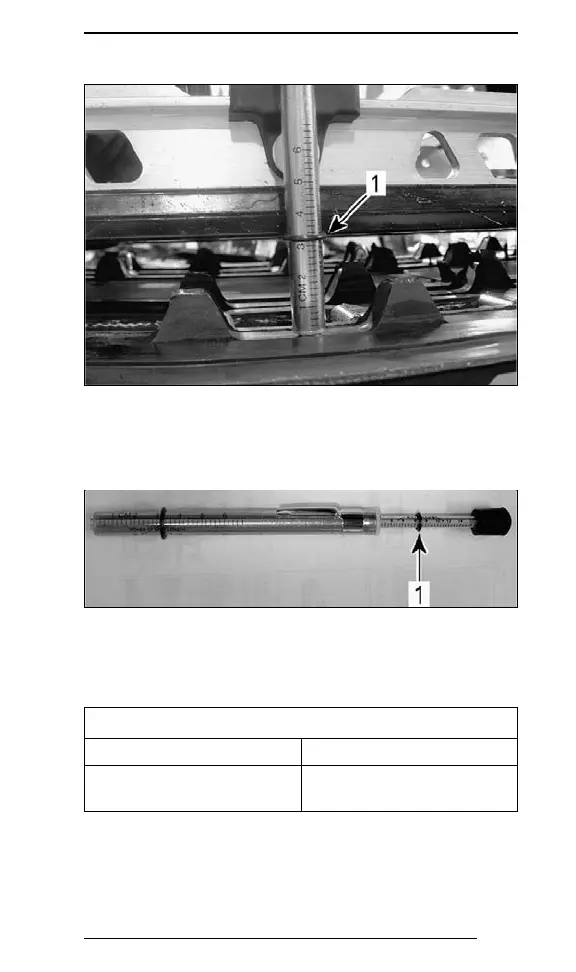

1. Deflection O-ring aligned with slider shoe
9. Read load recorded by the upper O-ring on the ten-
siometer.
mmr2009-133-003_a
LOAD READING
1. Upper O-ring
10. Load reading must be as per the following table.
Track Adjustment Specification
Track deflection setting 3.2 cm (1.26 in)
Track load reading
6 kgf to 8.5 kgf (13 lbf to
19 lbf)
11. If load reading is not in accordance with the specifica-
tion, adjust track tension. Refer to TRACK TENSION ADJUST-
MENT.
