Page 14 of 60
2018-05-28
Installation DL2 Doppler Speed Log System
Sensor forward direction.
It is important to align sensor forward direction.

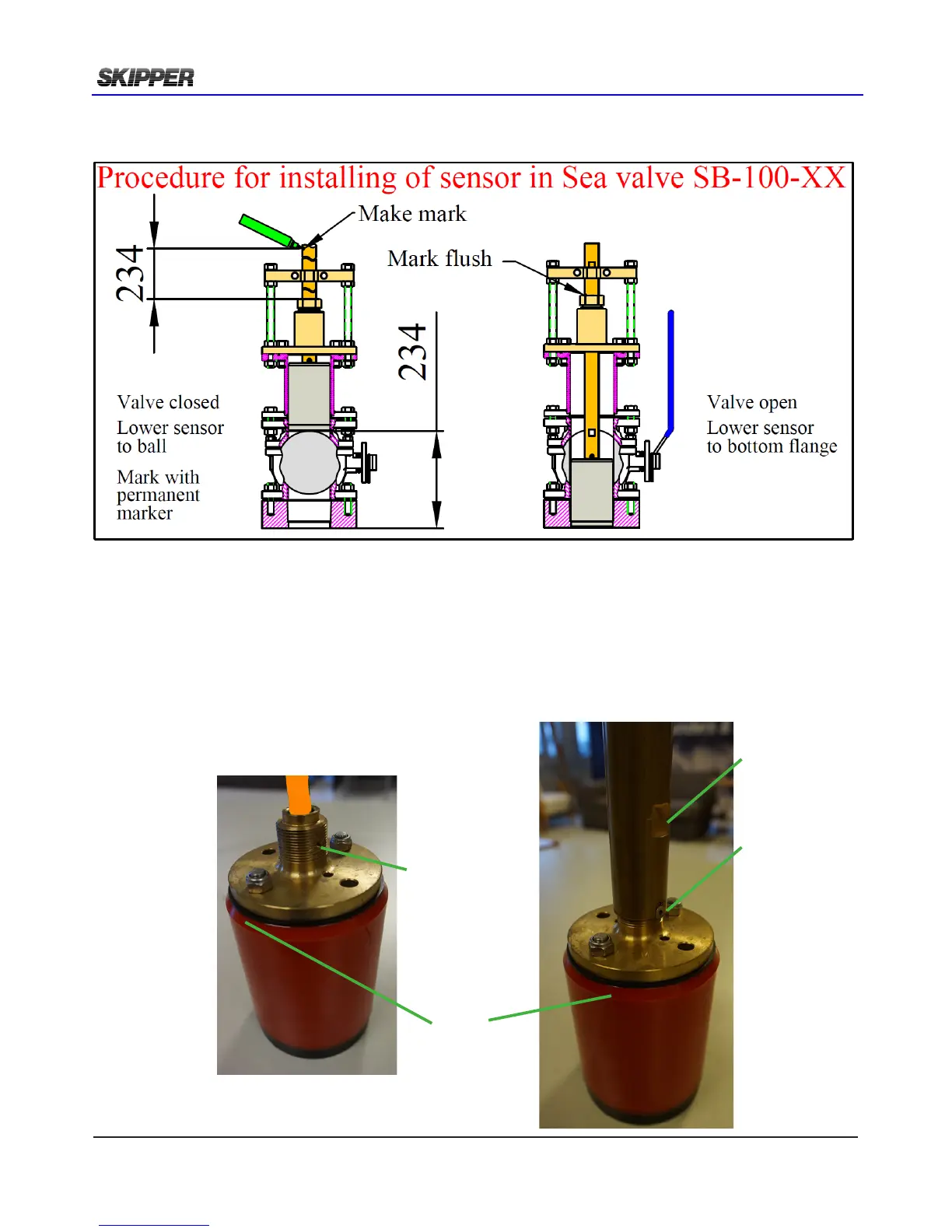

Pictures showing forward direction alignment in sea valve SB-100-SB.
Sensor lowered ush with outer hull.
Pictures showing lowering procedure in sea valve SB-100-SB.
Threaded hole
Port side
Forward
position mark
in moulding
Screw M4
In threaded
hole
Port side
Flat area
Port side
