Skipper DL2 User Manual

2018-05-28
Page 15 of 60
Installation DL2 Doppler Speed Log System
A at object points fore/aft.
The at side should be on the port side.
DB-2039
Nut M28
DB-2037
Washer (2x)
Gasket
DB-2038

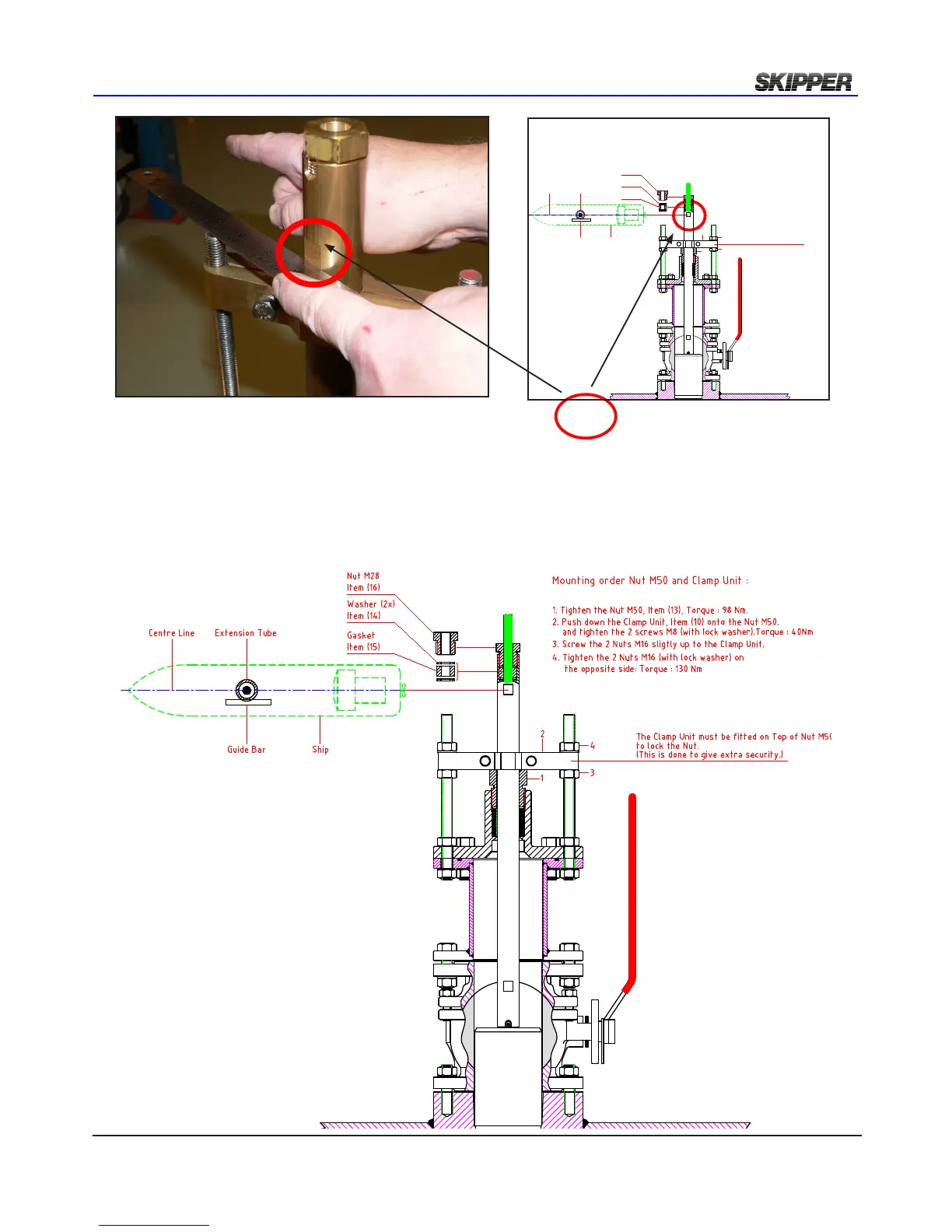

Final Assembly
1. Tighten the Nut M50 (DB-2036). Torque : 98 Nm
2. Push down the Clamp Unit (DB-2033) onto the Nut M50.
and tighten the 2 screws M8 (with lock washer).Torque : 40Nm
3. Screw the 2 Nuts M16 sligtly up to the Clamp Unit.
4. Tighten the 2 Nuts M16 (with lock washer) on
1
2
3
4
Mounting order Nut M50 and Clamp Unit :
the opposite side: Torque : 98 Nm
The Clamp Unit must be fitted on Top of Nut M50
to lock the Nut.
(This is done to give extra security.)
Extention TubeCente Line
Guide Bar Ship
Secure sensor by tightening clamping unit and nut M50
