Installation DL2 Doppler Speed Log System
115
114
109
116,5
123
IP22 approved mounting
181
Mounting rail DIN50 (min. 260 mm)
A
7,6
DETAIL B
SCALE 4 : 3
1. Installl a mounting rail DIN50 EN 50022 (If not existing) on the wall. 2. Mount the JB70D2-SA on the rail (Be sure that the unit is properly mounted, see detalil B) 3. Mark the 4 centerpoints for the drill in the wall (A). NB! The drilling holes diam. depends on thickness and material of the wall. 4. Use self tapping screws ST3,5 DIN7981-C pozidrive (A) (The screw length depends on the wall thickness).
E F C
1
2
3
4
B A
3
2
1
5
C D
4
6
7
8
A B
Electronics AS
D
E
ISO2768m
X:X
Gen. tolerance
Eur. projection
XXX
Material
YYYY.MM.DD
Checked by
XX-XXX XX Date
CN
Drwg. no. Name
XXX
Edition date
Sheet
XX
Revision
XXX
Scale

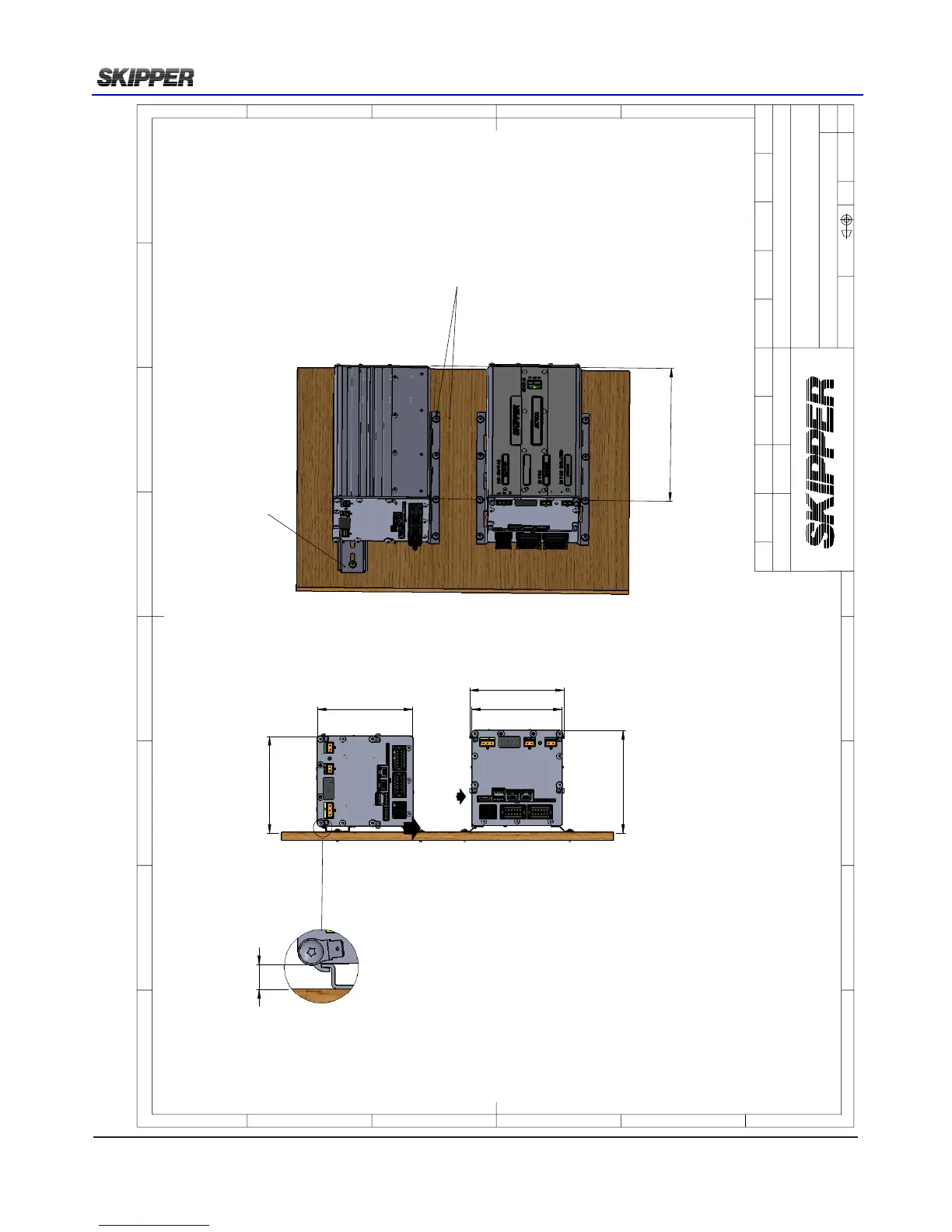

JB70D2-SA mounted at wall
X of X
Designed by - date
XXX
A.Matre 2012.10.31
Approved by - date
