Section 6 – Procedures
Fold the guardrails

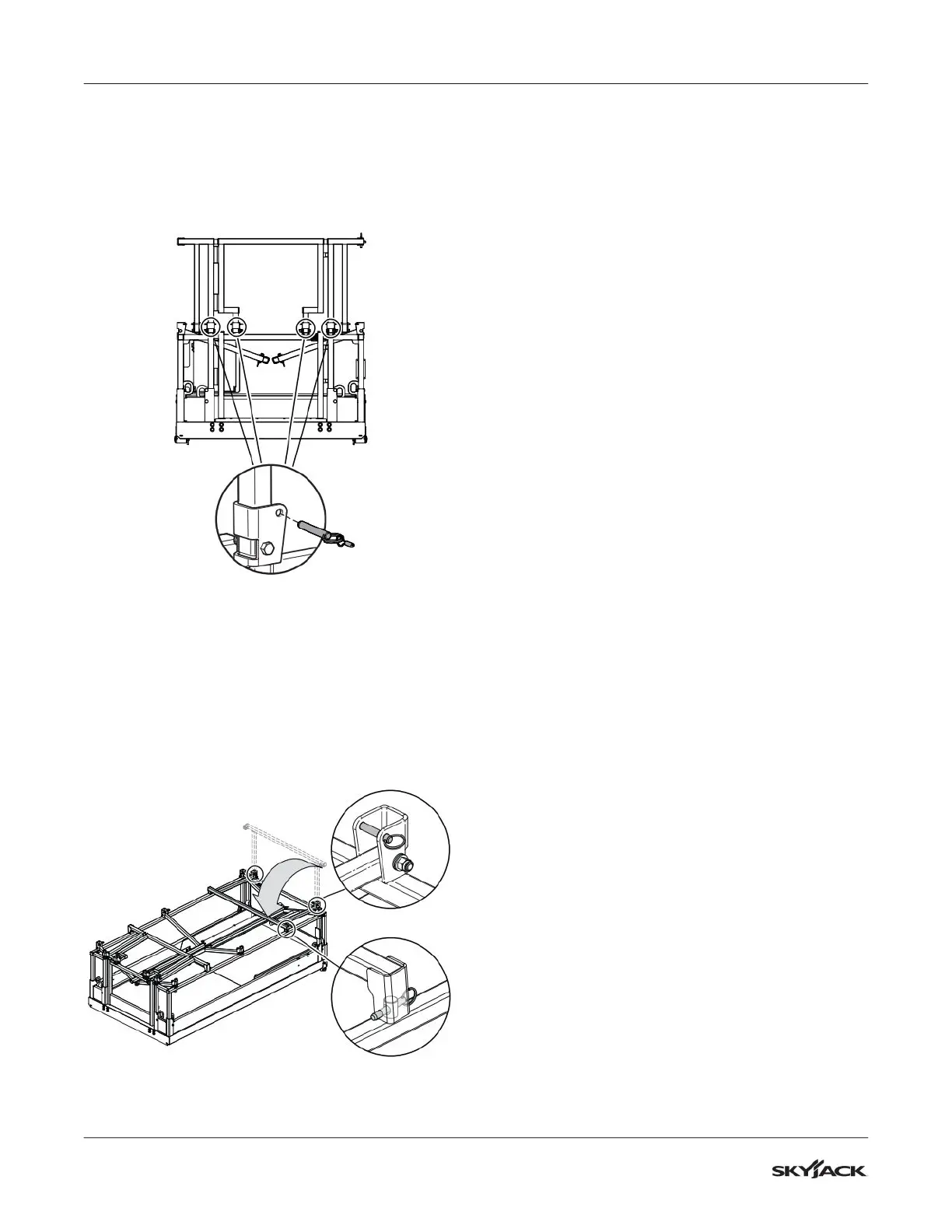

30. Install the lock-pins (x2 or x4) on the rear gate.
NOTE
MEWPs with a half gate have 2 pins on the rear gate.
MEWPs with the full gate (optional equipment) have 4
pins on the rear gate.
×2 or ×4
31. Remove the lock-pins from the extension
mid-rail.
32. Hold the mid-rail of the extension guardrail with
one hand, and then fold the extension guardrail
with the other hand. Refer to Figure 22 for the
hand positions.
33. Install the lock-pins to lock the extension
guardrail.
