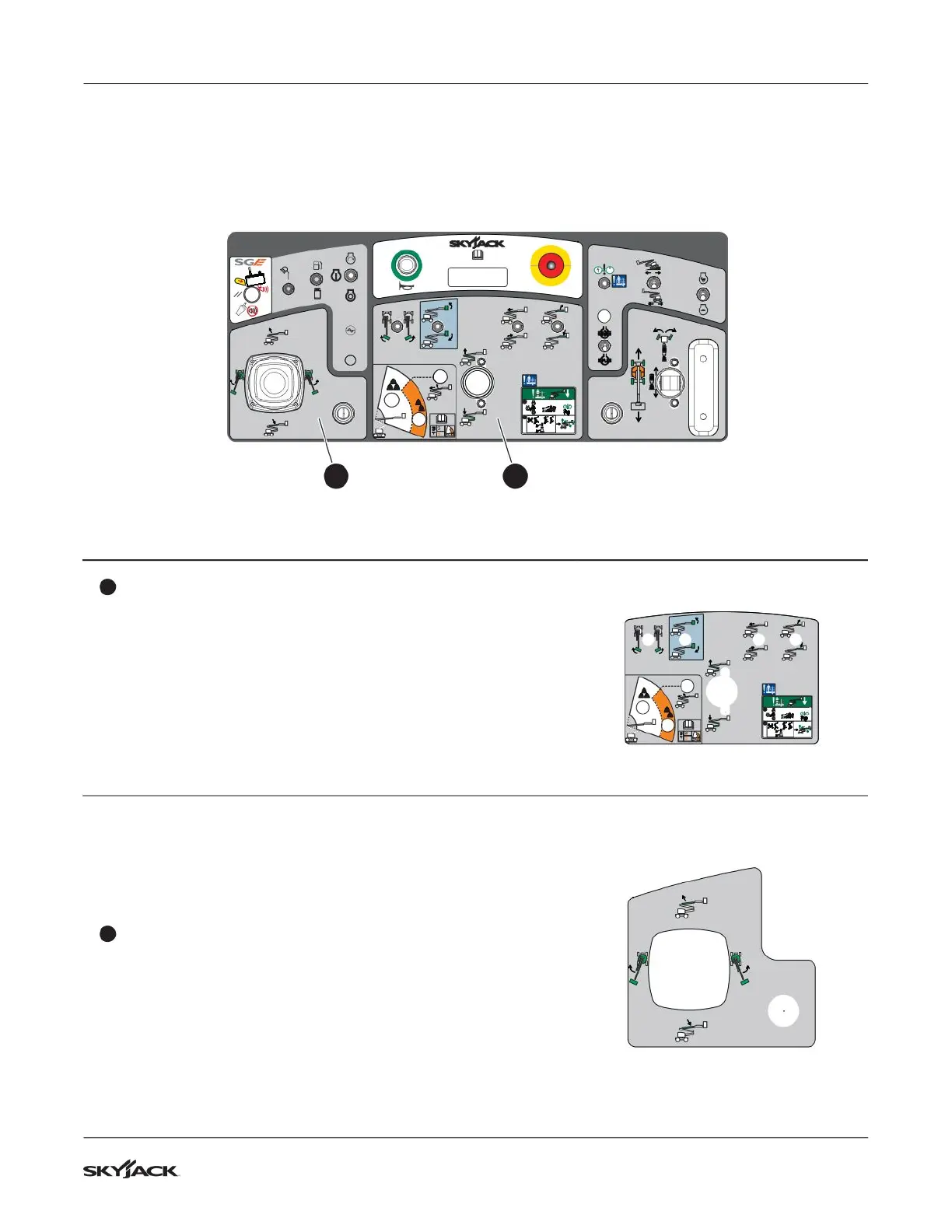

SJ85 AJ Labels Section 8 – Labels
Description Label Pictorial
6
Boom/Jib/Platform controls
Select platform rotation switch to rotate platform to the left or
right.
Select platform leveling override switch to tilt platform up or
down.
Select y boom extend/retract switch to extend or retract y
boom.
Select jib up/down switch to move jib up or down.
Select riser raise/lower controller to raise or lower riser.
1
2
+
+
7
Boom/Turret controller
Push and hold controller to rotate turret to the left or right.
Push and hold the controller to raise or lower main boom.
Platform control console continued
