Skyjack SJ85 AJ User Manual

213217AAA SJ85 AJ
24
Section 3 – Familiarization Control Functions
3.3-3 Base control console
This control console is located in the panel mounted
in the control compartment. It has the following
controls:
1
Hourmeter - This gauge records accumulated
operating time of engine.
2
Circuit breakers - In the event of a power
overload or positive circuit grounding, the circuit
breaker pops out. Push breaker back in to reset.
3
Platform rotation switch - This switch controls
left or right rotation of platform.
4
Turret rotation switch - This switch controls left
or right rotation of turret.
5
Platform leveling override switch - This switch
overrides automatic leveling of platform and
controls tilting up or tilting down of platform.
7
6
Jib up/down switch - This switch controls up or
down movement of jib.
7
7
Fly boom extend/retract switch - This switch
controls extension or retraction of y boom.
7
8
Main boom raise/lower switch - This switch
controls raising or lowering of main boom.
9
Emergency stop button - This red “mushroom-
head” pushbutton disconnects power to control
circuit and shuts engine off.
7
10
Riser raise/lower switch - This switch controls
raising or lowering of riser.
7
11
Positive air shutoff switch (if equipped) -
This switch allows the operator to shut off the
air supply to the engine if the engine continues
running after the main power is shut down.
7
12
Status indicator pilot lights - These lights
indicate operational status and errors in any
function in the controls/engine.
A B C D E F
TM
HOUR METER
QUARTZ
1
3
4
5
6
7
8
9101113
18
17
16
15
14
12
2

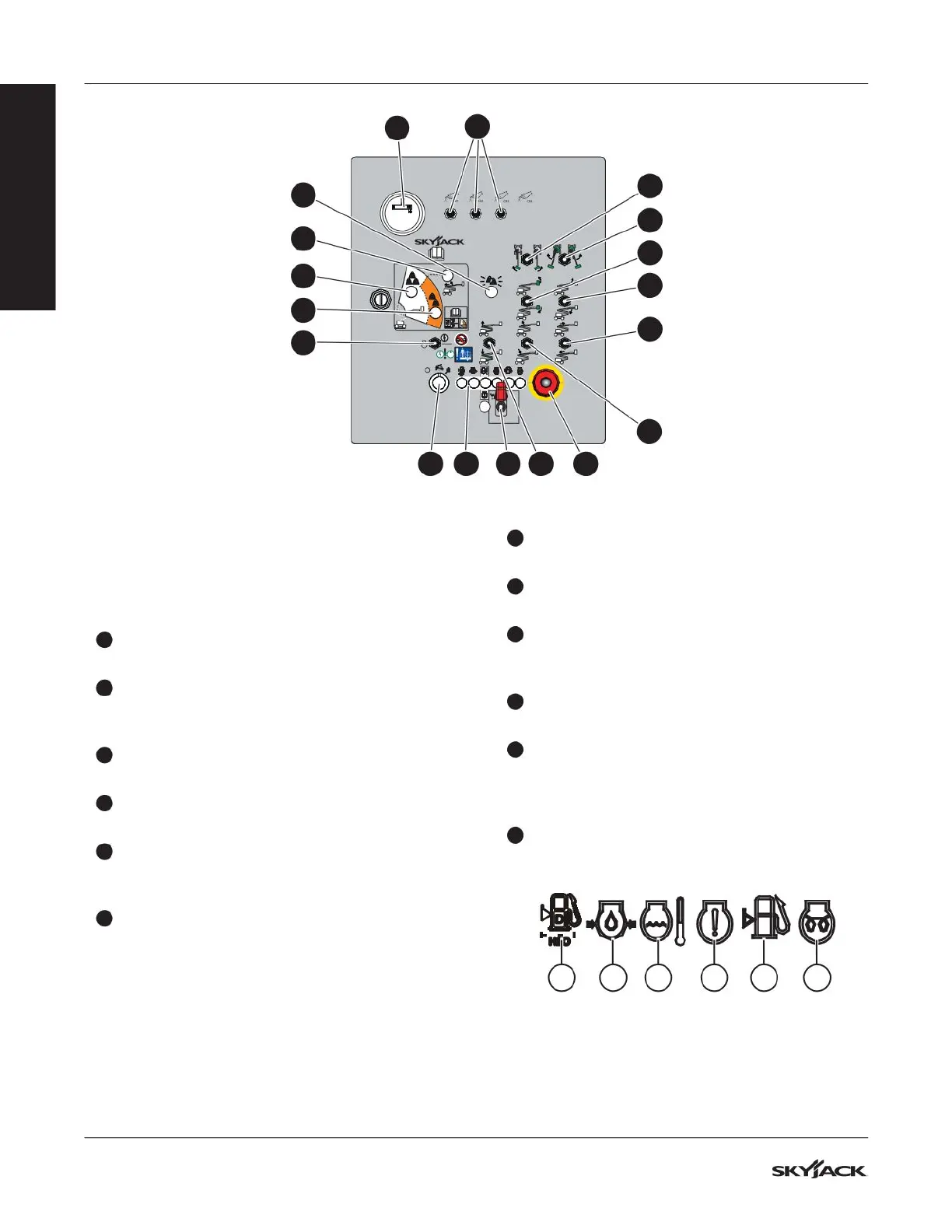

Figure 08 Base control console
FAMILIARIZATION

Skyjack SJ85 AJ Specifications

General

Brand	Skyjack
Model	SJ85 AJ
Category	Boom Lifts
Language	English
