213217AAA SJ85 AJ
98
Section 8 – Labels SJ85 AJ Labels
Description Label Pictorial
1

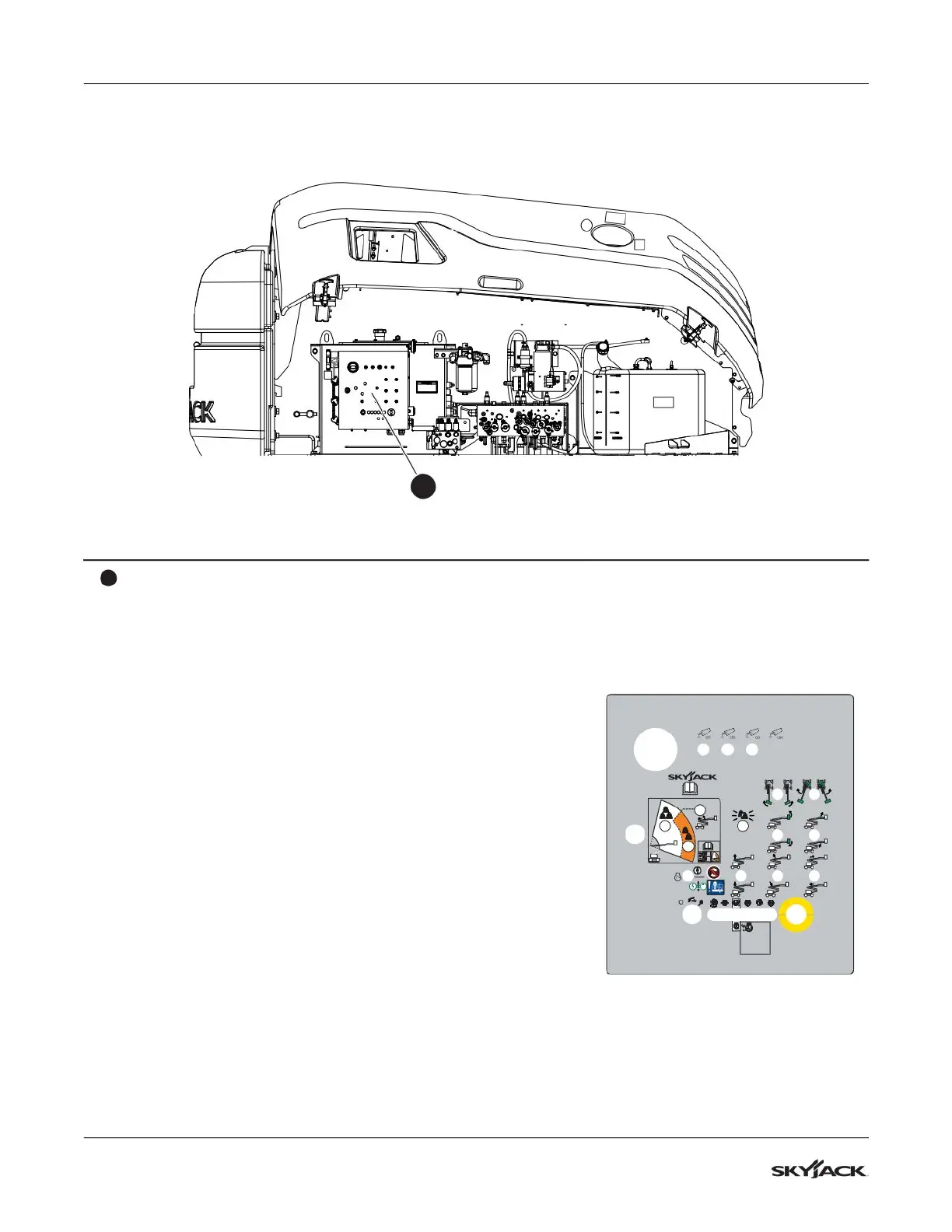

Base control console
Push circuit breaker back in to reset.
Read operating manual.
Select platform rotation switch to rotate platform to the left or
right.
Select platform leveling override switch to tilt platform up or down.
Select jib up/down switch to move jib up or down.
Select riser raise/lower switch to raise or lower riser.
Select turret rotation switch to rotate turret to the left or right.
Select main boom raise/lower switch to raise or lower main boom.
Select y boom extend/retract switch to extend or retract y boom.
Select off position to turn engine off, base position to enable base
control console, or platform position to enable platform control
console.
Push emergency stop button to stop engine and disable controls.
Push and hold start/function enable/emergency power switch in
the start position to start engine.
Push and hold start/function enable/emergency power switch in
the function enable position to enable base control functions.
With engine off, push and hold start/function enable/emergency
power switch in the emergency power position to enable the
emergency power unit for emergency descent.
TM
8.1-5 Control compartment
1
