Section 6 – Additional Procedures Loading/Unloading
6.5-2 Locking the turret
1. Ensure that turret is positioned so that turret
transportation lock tube (item
2
– Figure 32) is
aligned into one of two turret locking points on
the chassis.
2. Lift turret lock retaining pin (item
1
– Figure
32) and rotate 90 degrees. Lower turret lock
retaining pin into locked position.

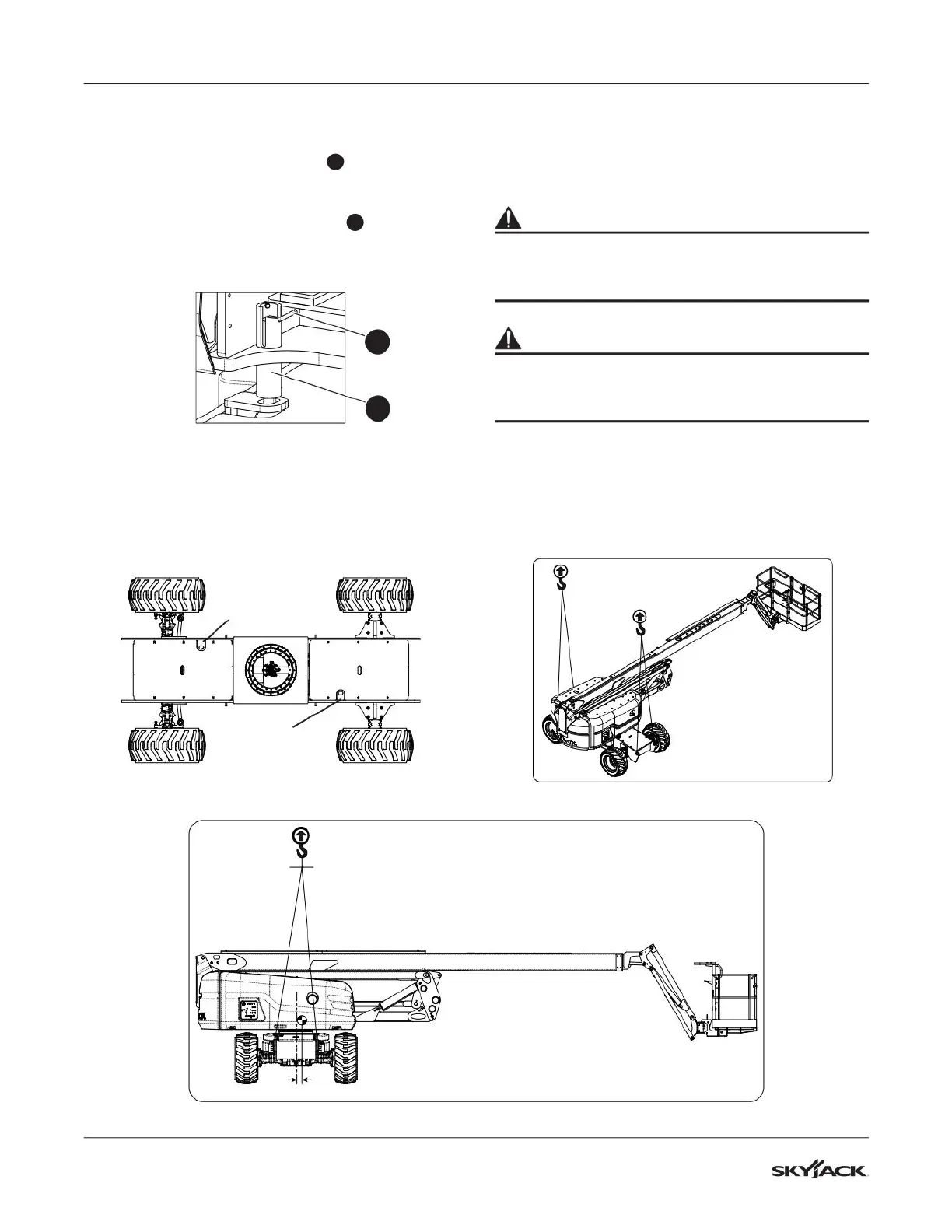

Figure 33 Turret transportation lock
6.5-3 Lifting
1. Rotate the boom and position the MEWP as
shown in Figure 35.
2. Turn main power disconnect switch to off
position.
3. Clear platform of all personnel, tools and
materials.
WARNING
When lifting the MEWP, lifting devices must be
attached to designated lifting points only (refer to
Figure 34).
WARNING
Use chains with load capacity sufcient to
withstand MEWP weight. Refer to the serial plate
of the MEWP for specic weight.
4. Properly adjust rigging to ensure MEWP remains
level during lifting. See Center of gravity location
(Figure 35).
Figure 34 Turret transportation locking points
5”
(12.7 cm)
C
L
Turret
transportation
locking point
Turret
transportation
locking point
Figure 35 Lifting points
Figure 36 Center of gravity
1
2
