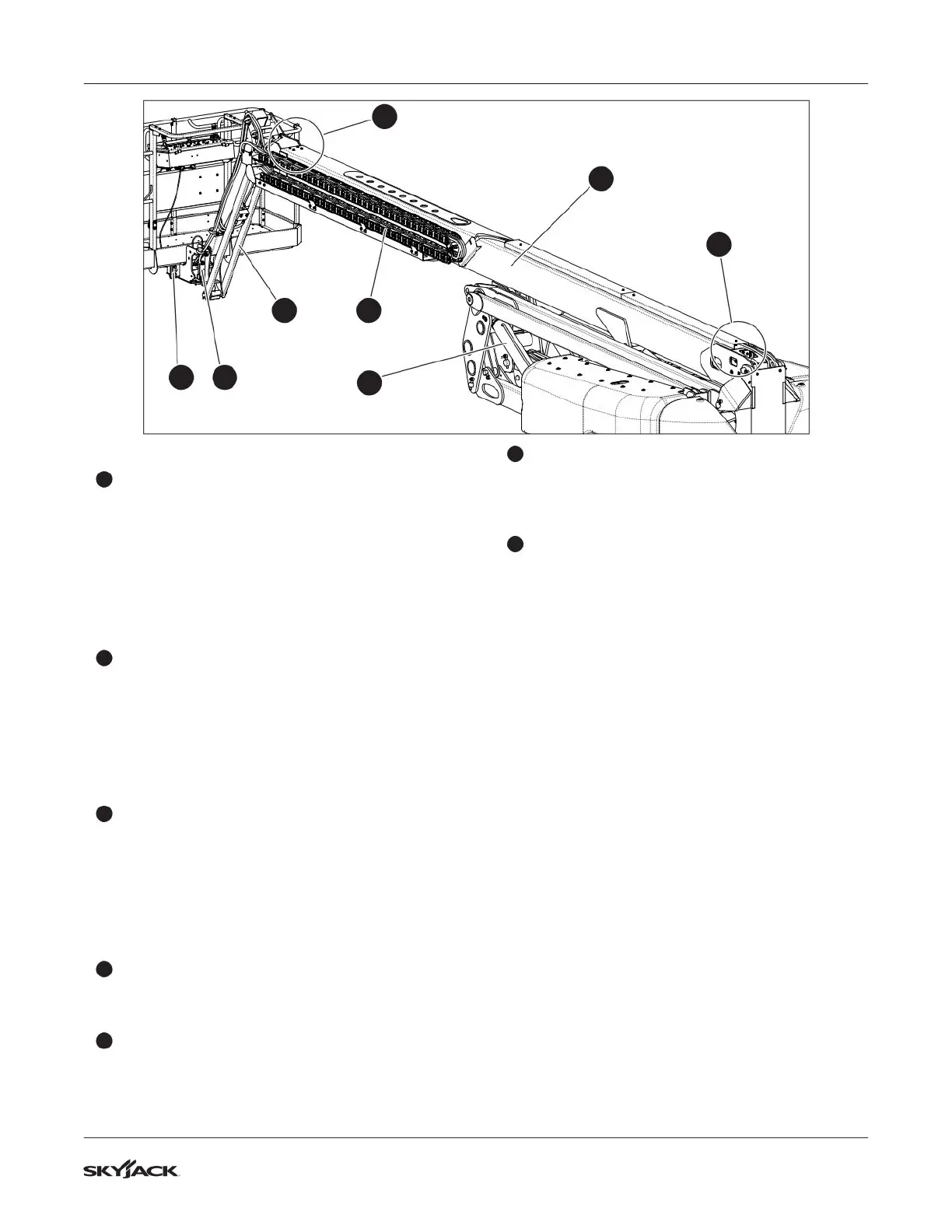

4.2-9 Boom assembly
1
Load cell
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts are properly tightened.
▪
Ensure all cables are secure and are in proper
working condition.
▪
Ensure debris is not lodged between the
platform and boom adaptor.
2
Rotary actuator
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts and pins are properly
tightened.
▪
Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
3
Jib
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts and pins are properly
tightened.
▪
Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
4
E-chain
▪
Ensure there are no loose or missing parts and
there is no visible damage.
5
Cylinders
▪
Ensure all cylinders are properly secured and
there is no evidence of leakage.
6
Wear pads
▪
Ensure all bolts are tight, there is no visible
damage to the wear pads and that no parts
are missing.
7
Boom
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts and pins are properly
tightened.
▪
Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
Hoses
▪
Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
21
3 4
5
7
6
6
