Section 3 – Familiarization Optional Equipment and Attachments
3.5 Optional Equipment and
Attachments
CAUTION
Skyjack approved modications/attachments
may affect MEWP specications. Refer to any
applicable instructions and/or labels.
NOTE
Refer to optional equipment or attachment labels
for actual weight. This weight must be included
when determining the total load on the platform,
including personnel and other materials.
NOTE
The combined weight of the attachment, panels,
occupants and tools should not exceed the rated
platform capacity.
3.5-1 AC outlet on platform (if equipped)
This outlet is a source of AC power on the platform.
The outlet is located on the right side of the platform
control console and the plug is located beside the
hydraulic tank in the control compartment.
3.5-2 Work light (if equipped)
The work light assembly is mounted on top of the
railings of the platform.

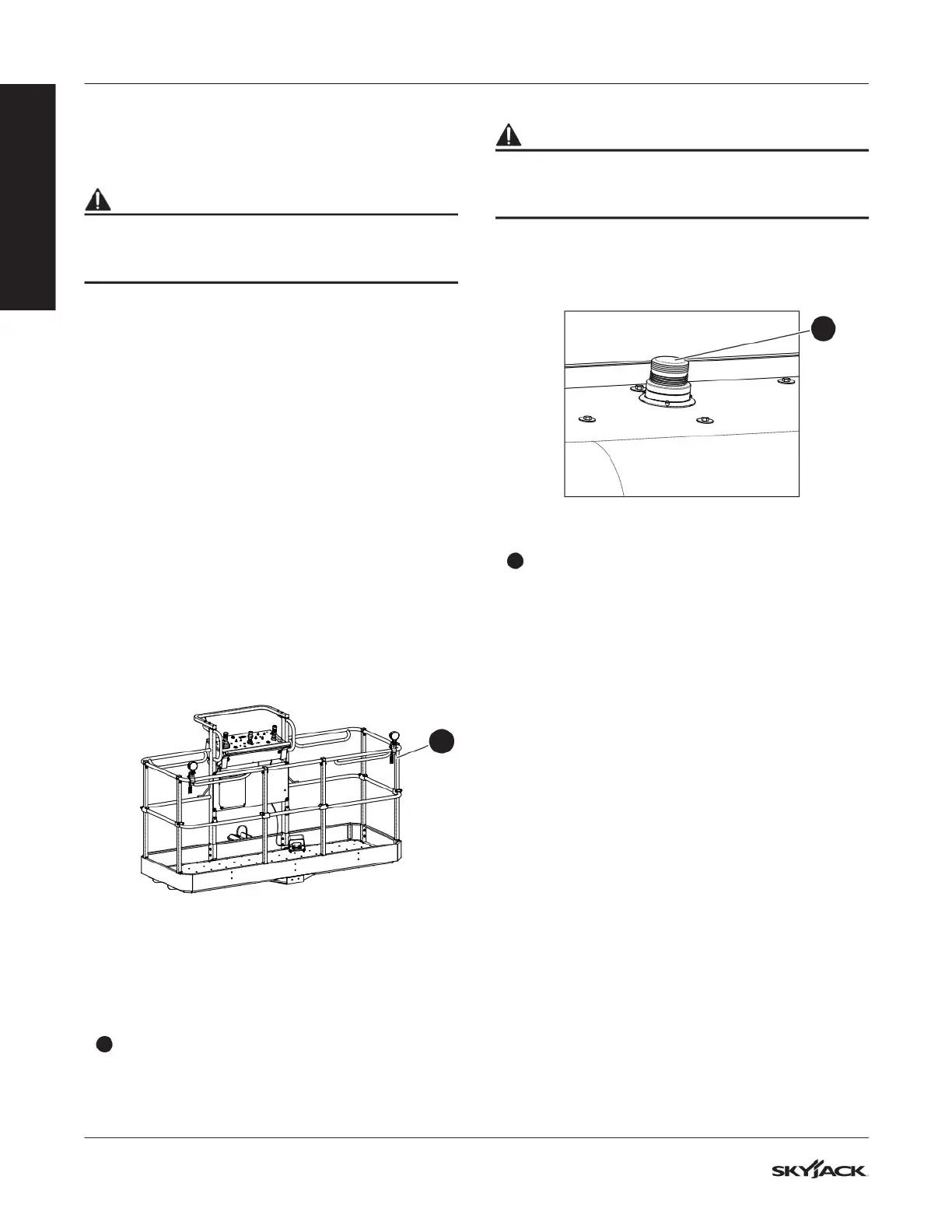

Figure 18 Work light
NOTE
Ensure base emergency stop button is pulled out
and platform control console has been activated
using off/base/platform key switch.
7
1
Work light - This light turns on when the work
light switch is activated.
WARNING
Work lights are not intended to replace the
ambient lighting required to navigate and operate
this MEWP.
3.5-3 Flashing amber light (if equipped)
The ashing amber light is located on top of the turret
of the MEWP.
Figure 19 Flashing amber light
7
1
Flashing amber light - This light ashes when
a boom function is activated. This works in
conjunction with the all motion alarm.
1
1
FAMILIARIZATION
