Skyjack SJ85 AJ User Manual

SJ85 AJ 213217AAA
25
Control Functions Section 3 – Familiarization
A. Water in fuel light - This light indicates water
separator is full. Open drain to release water.
Engine damage could occur if ignored for
excessive length of time.
B. Engine oil pressure - This light indicates low
engine oil pressure.
C. Engine coolant temperature/level - This light
indicates overheating of engine coolant and
low level of engine coolant.
D. Engine - This light indicates failure in engine
control system.
E. Fuel - This light indicates low fuel level.
F. Glow plug (diesel) - This light illuminates
until glow plugs have completed their timed
cycle. When the lamp goes out, the engine is
ready to be started.
7
13
Off/base/platform key switch - This three-way
selector switch allows operator to turn off power
to MEWP or to activate either base or platform
control console.
7
14
Start/function enable/emergency power switch
- This momentary switch, when held in start
position, starts engine. When held in function
enable position, allows base control functions to
operate. Engine speed increases when selected.
With engine off, and when held in emergency
power unit position, allows base control functions
to operate using emergency power unit.
WARNING
Do not operate boom functions if platform capacity
is exceeded.
7
15
Low capacity zone indicator light - Indicates
MEWP is in “low” platform capacity zone. Refer
to Section 7.7.
7
16
High capacity zone indicator light - Indicates
MEWP is in “high” platform capacity zone. Refer
to Section 7.7.
7
17
Capacity zone border light - Indicates MEWP
is at limits of travel for high capacity zone. Lower
and extend functions are not available.
7
18
Overload light - This red light indicates overload
status. Refer to Section 3.4-7.
TM
HOUR METER
QUARTZ
1
3
4
5
6
7
8
9101113
18
17
16
15
14
12
2

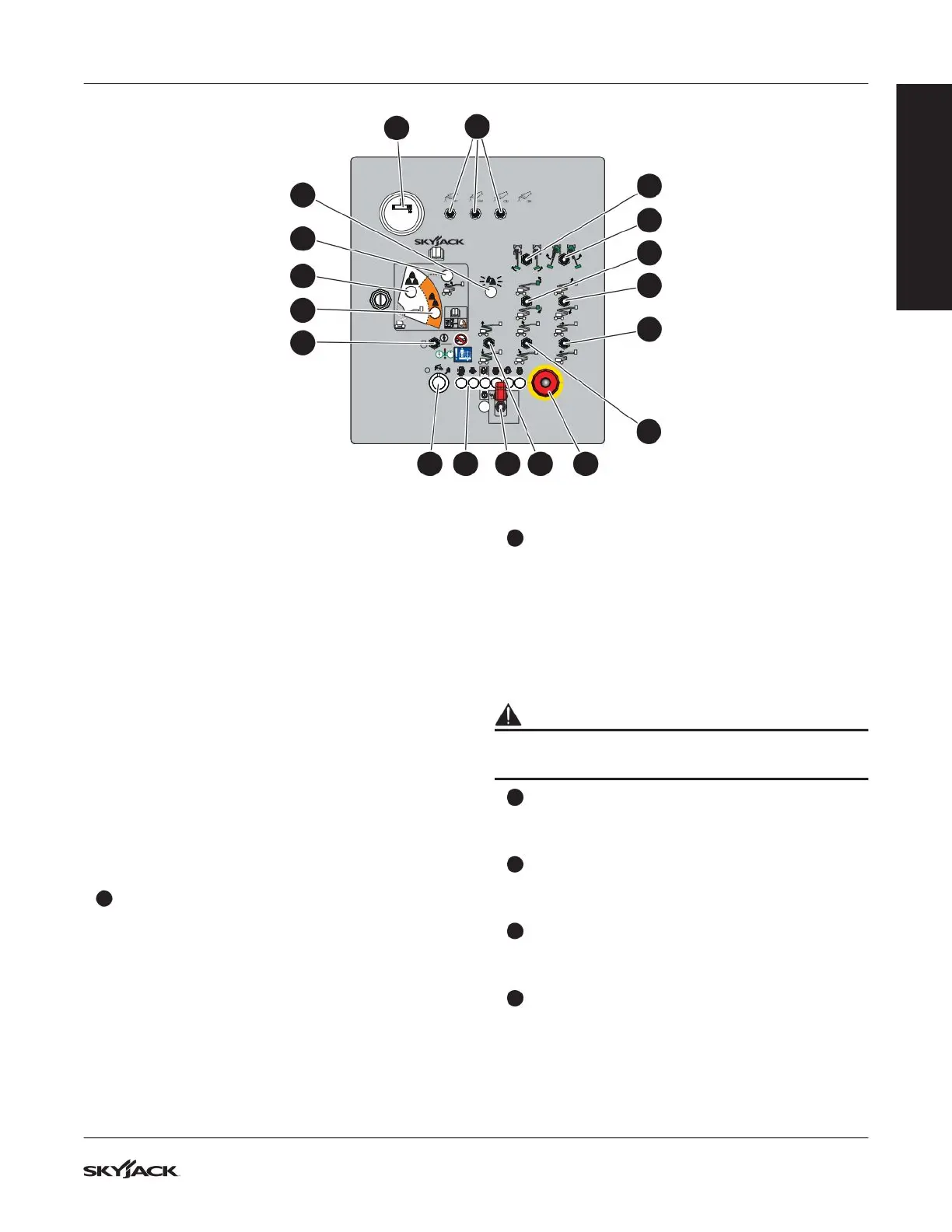

Figure 07 Base control console
FAMILIARIZATION
