Skyjack SJ85 AJ - Page 77

SJ85 AJ 213217AAA
77
Technical Diagrams Section 7 – Technical Diagrams & Specications
Technical Diagrams Continued
7.62 m
[25 ft]
62°
17.22 m
[56 ft 6 in]
10.52 m
[34 ft 6 in]
11.63 m
[38 ft 2 in]
10.03 m
[32 ft 11 in]
10.24 m
[33 ft 7 in]
9.55 m
[31 ft 4 in]
27.66 m
[90 ft 9 in]
25.83 m
[84 ft 9 in]
2.67 m
[8 ft 9 in]
2.84 m
[9 ft 4 in]
A 0.41 m
[16 in]
B 0.33 m
[13 in]
C 1.12 m
[44 in]
C
D
B
A
E
D 1.35 m
[53 in]
E 0.28 m
[11 in]

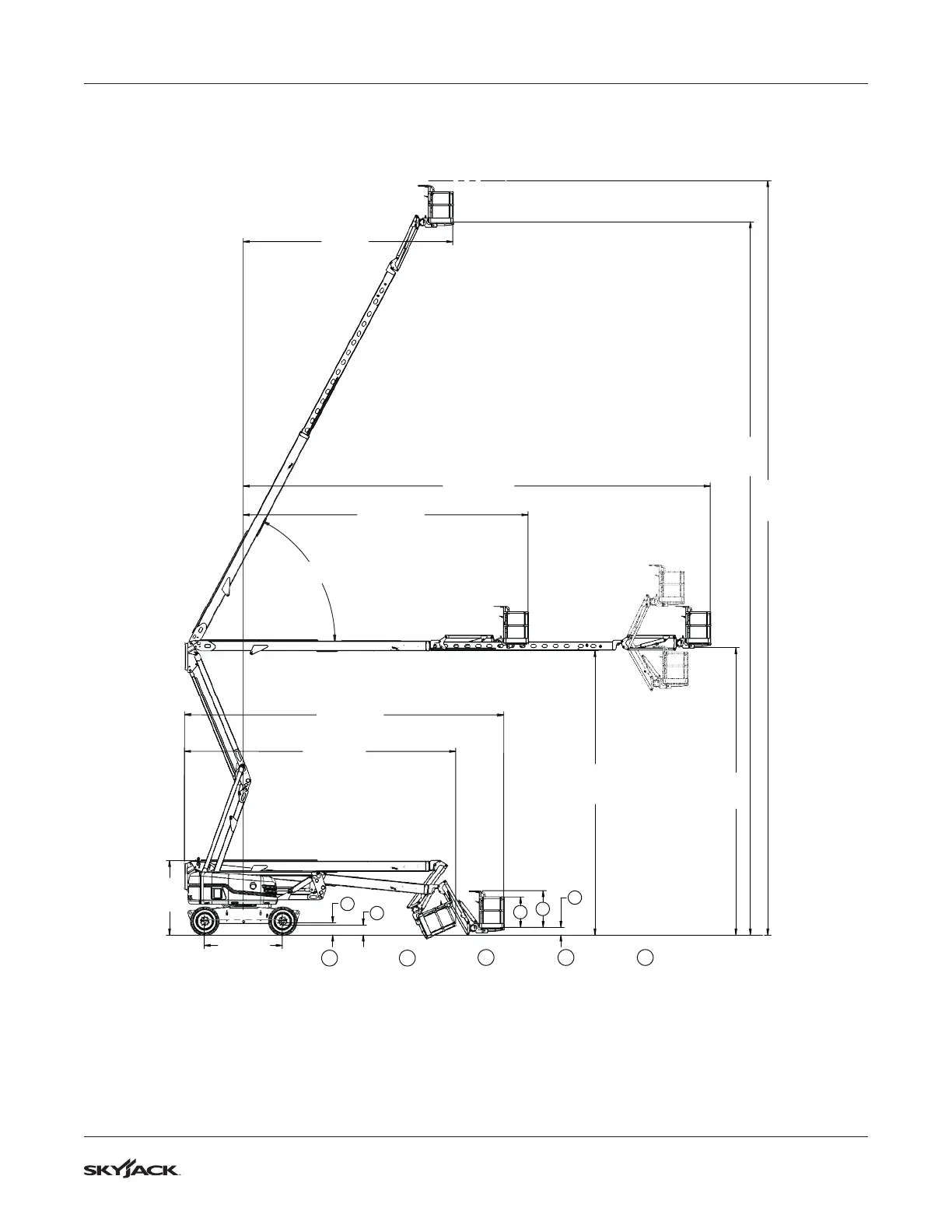

Figure 39 Dimensions - SJ85 AJ
