Skytron 3501B EZ SLIDE User Manual

Page 49

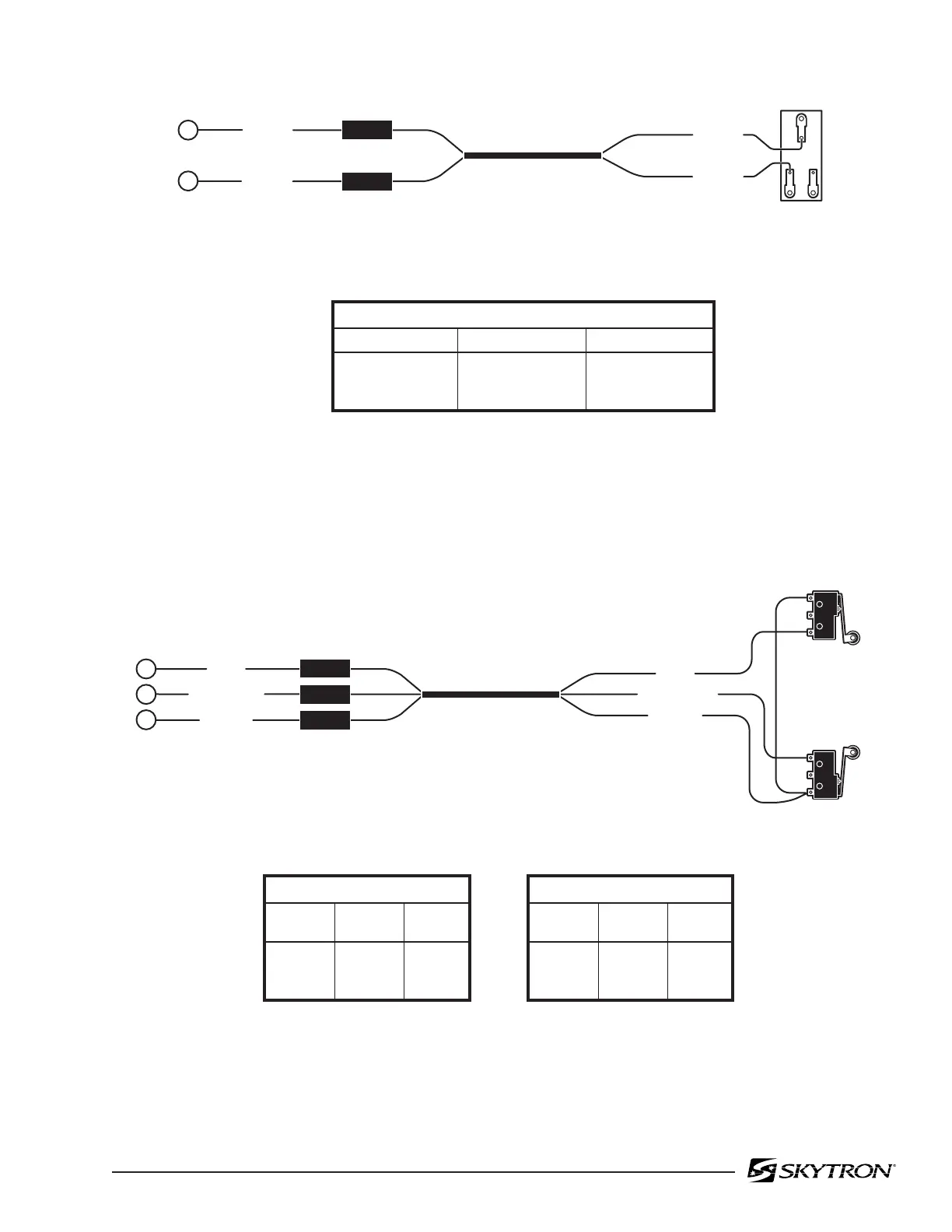

Figure 5-27. Leg Down / Back Down Inhibit Switches
82306-526
TEST AT PINS 9 & 23
CS-1 BACK-DOWN INHIBIT
Table
Position
Center
Slide HD
Slide FT
Switch
Position
Closed
Closed
Open
Meter
Reading
0
0
Infinity
When Top is slid toward Foot,
CS-1 will not allow Back Section
to go below horizontal.
TEST AT PINS 10 & 23
CS-2 LEG-DOWN 45º INHIBIT
Table
Position
Center
Slide HD
Slide FT
Switch
Position
Open
Closed
Open
Meter
Reading
Infinity
0
Infinity
When Top is slid toward Head,
CS-2 will not allow Leg Section to
go more than 45º below horizontal.
CS-1
CS-2
NC
NC
COM
COM
NO
BLACK
BLACK/WHITE
LT. BLUE
BLACK
BLACK/WHITE
LT. BLUE
(CN10)
TM2-3
TM2-4
TM1-5
9
10
23
NO
Figure 5-26. Leg Section Return Switch
82306-525
TEST AT PINS 7 & 26
NS-7 LEG SECTION DOWN
Table Position
Level
Leg-Down
Switch Position
Open
Closed
Meter Reading
Infinity
0
When the Leg Section is Down,
NS-7 brings the Leg Section Up to level.
NS-7
NC N0
COM
NC
PURPLE
BROWN
PURPLE
BROWN
(CN10)
TM2-8
TM2-1
26
7
