Page 50

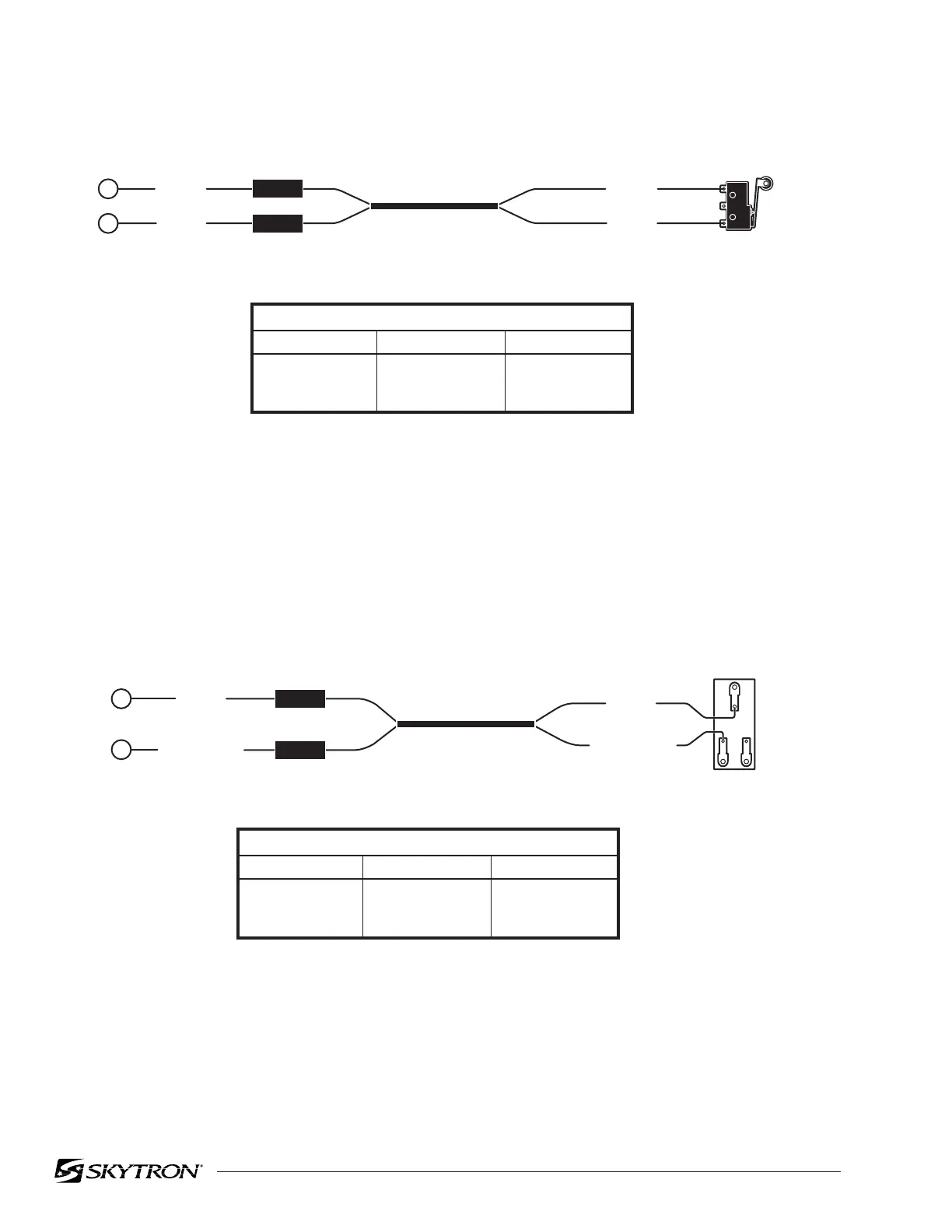

Figure 5-29. Slide to Head Inhibit Switch
82306-528
TEST AT PINS 8 & 26
CS-4 SLIDE INHIBIT
Table Position
Level
Leg-Down
Switch Position
Open
Closed
Meter Reading
Infinity
0
When the Leg Section is below horizontal, CS-4 will not
allow Top to slide toward Head.
CS-4
NC N0
COM
NC
PURPLE
BROWN/WHITE
PURPLE
BROWN/WHITE
(CN10)
TM2-8
TM2-2
26
8
Figure 5-28. Back Up Inhibit Switches
82306-527
TEST AT PINS 11 & 26
CS-3 BACK-UP INHIBIT
Table Position
Kidney Lift-Down
Kidney Lift-Up
Switch Position
Open
Closed
Meter Reading
Infinity
0
PURPLE
ORANGE
PURPLE
ORANGE
(CN10)
CS-3
NC
COM
NO
When Kidney Lift is Up, CS-3 will not allow Back Section to go
more than 45º above horizontal.
11
26
TM2-5
TM2-8
To Next Page
