＞2cm
Test the door/window contact
This is to test whether the contact can work properly.
1. Remove the insulating strip
The contact works immediately.
2. Pay attention to the direction
There are triangle marks on the
side of the transmitter and
magnet. Make sure the triangle
marks is close to each other and
within the range of 1 cm.
3. Test the door/window contact
Press the button. The system switches to the arm state. Separate the [Arm ]
transmitter and magnet with the space more than 2 cm. The red LED on the transmitter
is on. Then, the control panel triggers an alarm. This means the contact works properly.

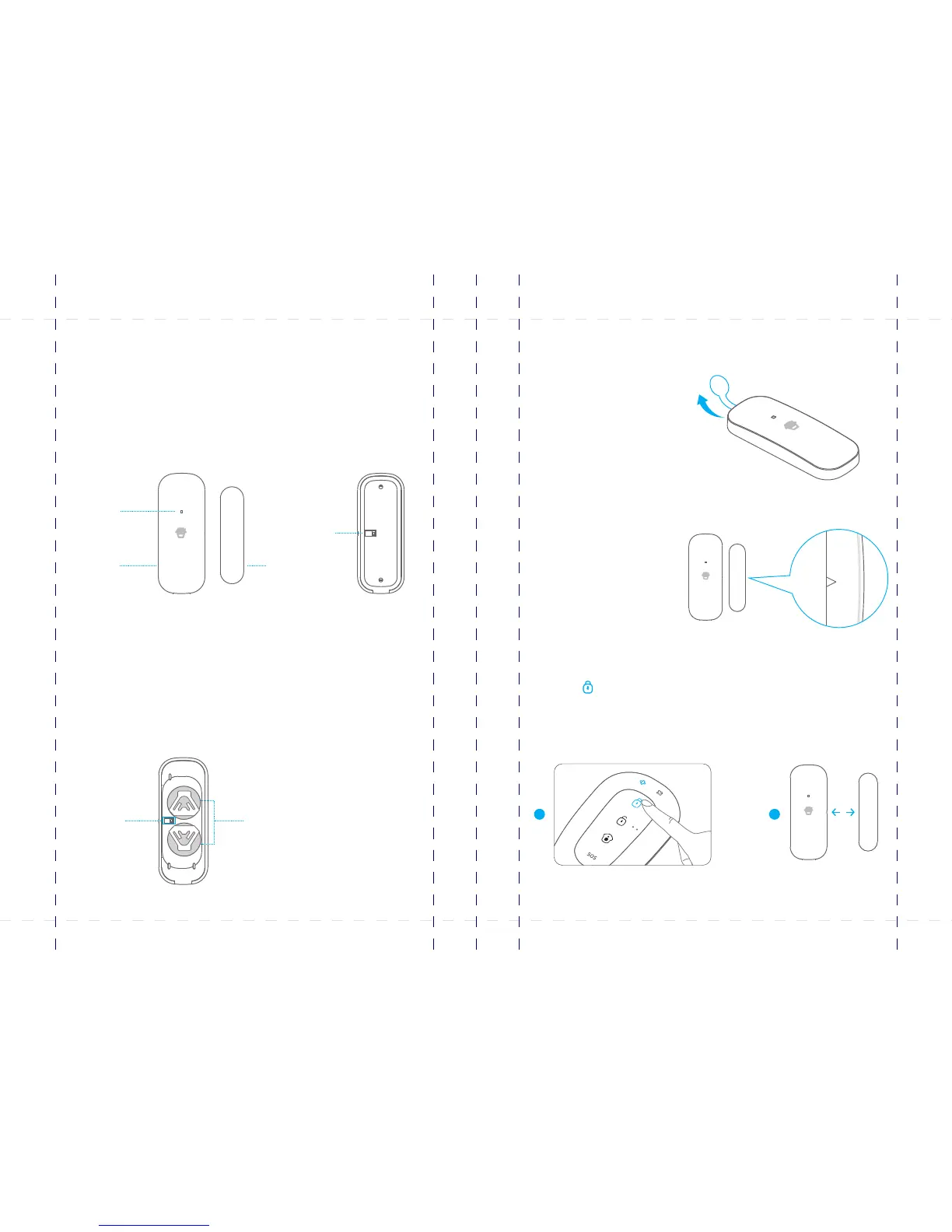

Test and Install the Door/Window Contact
The contact contains a transmitter and a magnet, which can be mounted on a door,
window, or any object that can be opened or closed. When the transmitter and
magnet are separated, the contact will send a signal to the control panel and the
control panel will trigger an alarm. The tamper switch ensures that sabotage attempts
to disassemble the contact will trigger an alarm.
Overview
Transmitter
Tamper Switch
LED Indicator
Magnet
Front side
Back side
LED indication
Flash once: Intruder is detected.
Low battery. Replace the battery as soon Flash once per 3 seconds after triggered:
as possible.
PCB layout
Tamper Switch
CR2032 Lithium Cell Battery
Note: When tamper switch is pressed, system will alarm immediately.
PIR-900 Wireless PIR Motion Detector
IMPORTANT: WHEN SINGLE DELAY ZONE IS SELECTED, THE SENSOR
WILL ALWAYS BE IN THE NORMAL ZONE. IT IS NOT POSSIBLE TO PLACE IT IN
THE HOME GROUP.
5
TIP: Always start the SIM card telephone number with the area code of your
country (eg. 0031 for the Netherlands). This will allow you to operate the alarm
system abroad.
8
17
18
19
20
24
