TT301 - Operation and Maintenance Instruction Manual
Operation [OPER]

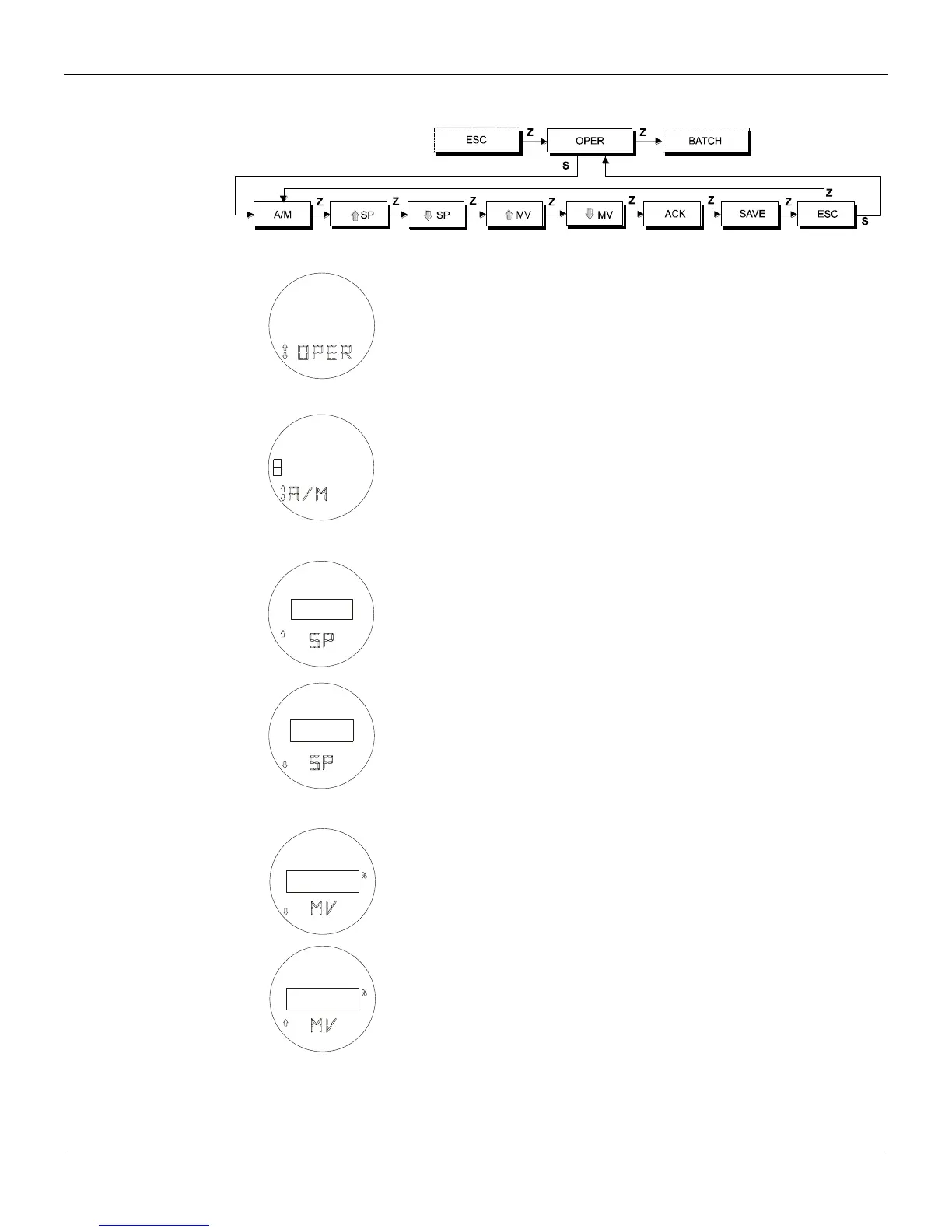

Figure 4.4 – Local Adjustment Operation Tree
Z: Moves to the next branch (BATCH).
S: Enters the OPERATION branch, starting with function AUTO/MANUAL.
Auto/Manual (A/M)
Z: Moves to the SETPOINT INCREASE function.
S: Toggles controller status, Automatic to Manual or Manual to Automatic. “A” and
“M”indicates status.
Setpoint Adjustment (SP)
Z: Moves to the SETPOINT DECREASE function.
S: Increases the setpoint until the magnetic tool is removed or 100% is reached.
Z: Moves to the MANIPULATED VARIABLE ADJUSTMENT function.
S: Decreases the setpoint until the magnetic tool is removed or 0% is reached.
Manipulated Variable Adjustment (MV)
Z: Moves to the MANIPULATED VARIABLE DECREASE function.
S: Increases the control output until the magnetic tool is removed or the upper
output limit is reached.
Z: Moves to the ACK function.
S: Decreases the control output until the magnetic tool is removed or the lower
output limit is reached.
