SMAR TT301 - Section 6: Technical Characteristics; Functional Specifications Overview; Load Limitation Curve; Hazardous Area Certifications

Section 6
6.1
TECHNICAL CHARACTERISTIC
Functional Specifications
Inputs
See table 6.1, 6.2 and 6.3
Output Signal
Two-wire, 4-20 mA with superimposed digital communication (HART Protocol Version 5.1/Transmitter/Poll-Response
mode/Common 4-20 mA).
Power Supply
Bus powered: 12 - 45 Vdc.

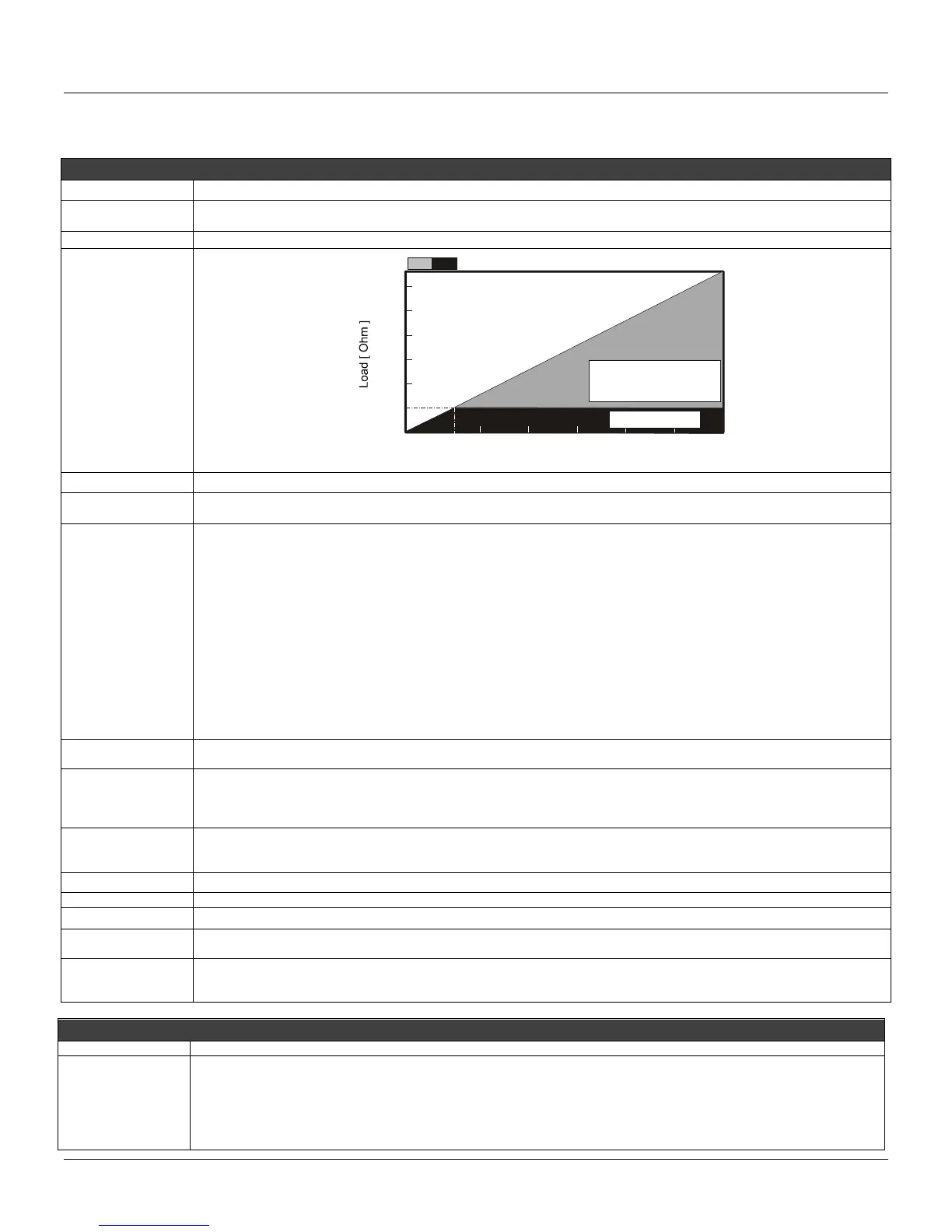

Load Limitation
1650
1500
1000
500
0
12 20 30 40 45
250
Power Supply [ Volt ]
4-20mA only
Operating area
4-20mA and digital
communication
17
Display
Optional 4 1/2 digit LCD indicator.
Hazardous Area
Certifications
Intrinsic Safety (FM, CSA, EXAM, CEPEL), Explosion Proof (FM, CSA, NEMKO, CEPEL), Dust Ignition Proof (FM), Non-
incendive (FM)
European
Directive
Information
Authorized representative in European Community
Smar Gmbh-Rheingaustrasse 9-55545 Bad Kreuzanach
EMC Directive (2004/108/EC) – Electromagnetic Compatibility
The EMC test was performed according to IEC standard: IEC61326-1:2006, IEC61326-2-3:2006, IEC61000-6-4:2006,
IEC61000-6-2:2005. For use only in industrial environment.
ATEX Directive (94/9/EC) – Equipment and protective systems intended for use in potentially explosive
atmospheres.
This product was certified according European Standards at NEMKO and EXAM (former DMT). The certified body for
manufacturing quality assessment is EXAM (number 0158).
LVD Directive 2006/95/EC – Electrical Equipment designed for use within certain voltage limits
According the LVD directive Annex II the equipment under ATEX “Electrical equipment for use in an explosive atmosphere”
directive are excluded from scope from this directive.
Zero and Span
Adjustments
No interactive, via digital communication or local adjustment.
Temperature Limits
Ambient:
Storage:
Display:
-40 ºC to 85 ºC
-40 ºC to 120 ºC
-20 ºC to 80 ºC
-40 ºC to 85 ºC
(-40 ºF to 185 ºF)
(-40 ºF to 248 ºF)
(-4 ºF to 176 ºF)
(-40 ºF to 185 ºF)
(without damage)
Loss of Input
(Burnout)/Failure
Alarm
In case of sensor burnout or circuit failure, the self diagnostics drives the output to 3.6 or to 21.0 mA, according to the user's
choice.
Humidity Limits
0 to 100% RH
Turn-on Time
Performs within specifications in less than 10 seconds after power is applied to the transmitter.
Update Time
Approximately 0.5 second.
Damping
Adjustment
User configurable from 0 to 32 seconds (via digital communication).
Configuration
This is done by an external Configurator that communicates with the transmitter remote or locally using Hart Protocol.
Locally the magnetic tool can be used as well. The magnetic tool can configure the majority of the items provided the
transmitter is fitted with a display.
Performance Specifications
Accuracy
See tables 6.1, 6.2, 6.3 and 6.4.
Ambient
Temperature
Effect
For a 10 ºC variation:
mV (- 6 to 22 mV), TC (NBS: B, R, S,T): ± 0.03% of the input milivoltage or 0.002 mV whichever is greater;
mV (- 10 to 100 mV), TC (NBS: E, J, K, N; DIN: L, U): ± 0.03% of the input milivoltage or 0.01 mV whichever is greater;
mV (-50 to 500 mV): ± 0.03% of the input milivoltage or 0.05 mV whichever is greater;
Ohms (0 to 100Ω), RTD (GE: Cu10): ± 0.03% of the input resistance or 0.01Ω whichever is greater;
