CHAPTER 3
USING THE INTERACTIVE WHITEBOARD SYSTEM
24 smarttech.com/kb/170910

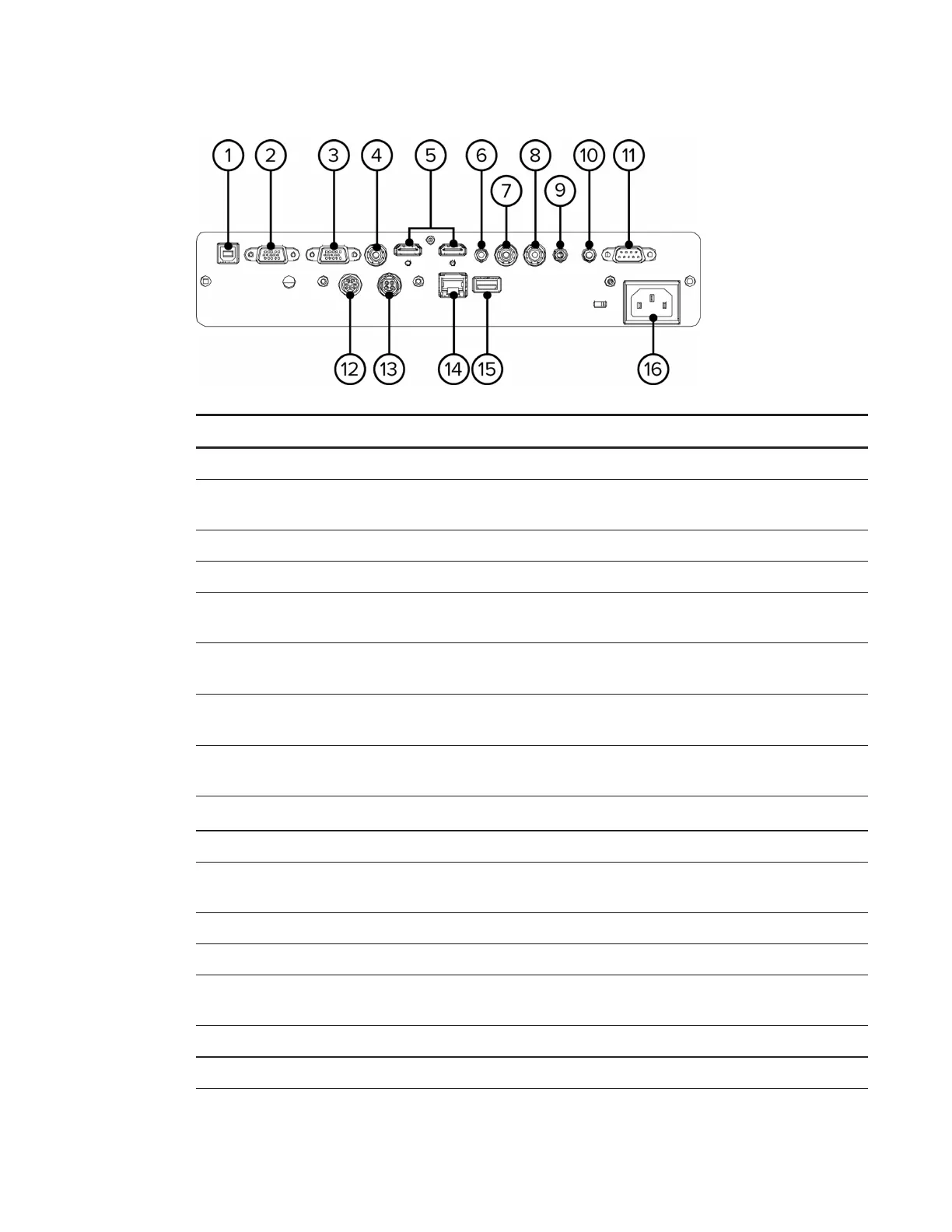

No. Connector Connect to:
1 USB B Computer (for service access only)
2 DB15F (DE-15F) RGB video output (VGA
Out)
Secondary display (not included)
3 DB15F (DE-15F) RGB video input (VGA1) Primary computer (not included)
4 RCA Composite video input Video source (not included)
5 HDMI1 and HDMI2 inputs High-definition video and audio sources
(not included)
6 3.5 mm phone jack VGA1 audio input Audio sources associated with primary
and secondary computers
7 Right RCA audio input
Audio source for composite video (not
included)
8 Left RCA audio input
Audio source for composite video (not
included)
9 3.5 mm phone jack microphone Microphone (not included)
10 3.5 mm phone jack audio output Speakers (not included)
11 DB9F (DE-9F) RS-232 Room control system or other terminal
device (not included)
12 7-pin mini-DIN ECP control
13 4-pin power mini-DIN 5V/2A output ECP power (5v/2A)
14 RJ45 (8P8C) Network (for web page management and
SNMP access)
15 USB A receptacle, power only +5 VDC HDMI streaming device (not included)
16 Power Mains power supply
